MG5200 Series
1.Large measurement range: ≤ 3937 "(100m);
2.Simple and convenient calibration;
3.Temperature and moisture resistance;
4.Wiring error reverse protection, anti RF interference;
5.Implement anti-corrosion with different materials;
6.Good sealing performance
GENERAL | |||

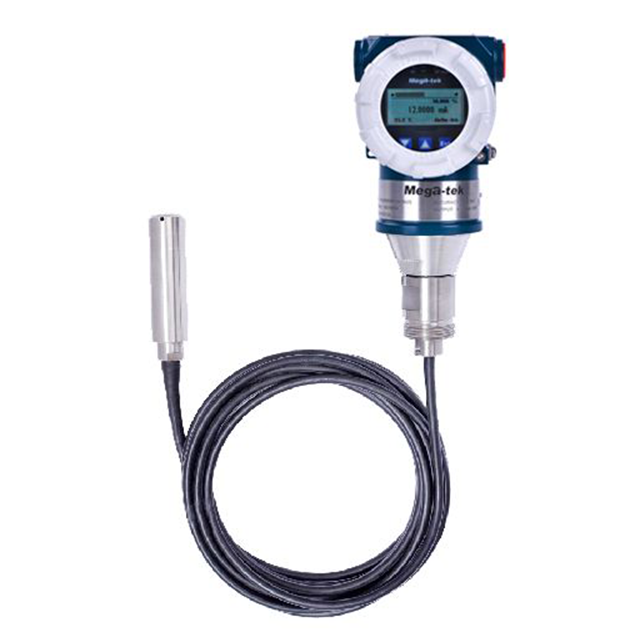

Product | MG5200 Series Static Pressure Level Transmitter | ||
Measurement Parameters | Liquid level, pressure | ||
Housing Structure | Dual Chamber | ||
Housing Material | High Pressure Cast Aluminum | ||
Viscosity | ≤0.15Pa·S | ||
Cable Entry | 1/2"NPT or M20×1.5 | ||
Installation Mode | Top mounted (threaded installation, flange installation, bracket installation) | ||
ELECTRIC | |||
Input Voltage | 10.5/16.5~55VDC, with polarity reverse protection | ||
Output Signal | 2-wire 4～20mADC, HART | ||
Fault Signal | High value alarm 21mA, low value alarm 3.6mA | ||
| Damping | 0~100S | ||
| Lightning Protection Device | Meet the requirements of EN61000-4-4 (GB/T17626.4) severity level 4 and EN61000-4-5 (GB/T17626.2) severity level 4 | ||
ENVRONMENT | |||
Process Temperature | -4~212℉(-20~100℃) | ||
Ambient Temperature | -40~185℉(-40~85℃) | ||
Storage Temperature | -40~176℉(-40~80℃) | ||
Humidity | 0~100％ Relative humidity | ||
MEASUREMENT PERFORMANCE | |||
| Accuracy | ±0.1％, ±0.2％ | ||
| Environmental temperature impact | ±0.2％ of upper range limit/10K | ||
| Refresh Interval | Once/1S | ||
DISPLAY/INDICATION | |||
Process Display | Display 4-20mA, Percentage, Engineering Units | ||
Output Unit | ft, in, m, cm, mm | ||
CABLE | |||
Cable length | 0~3937"(0~100m) | ||
TRANSMITTER MATERIAL | |||
Sensor Material | 304, 316L, PP, PVDF | ||
Sealing Components | FKM | ||
Cable | PTFE | ||
Diaphragm | 316L, Ceramic AL2O3 | ||
HAZARDOUS LOCATIONS CERTIFICATIONS | |||
NEPSI | Explosion Proof | ||
NEPSI | Intrinsically Safe | ||
MECHANI | |||
Filler material | PTFE, Graphite material, etc | ||
| Thread | M20*1.5(M), M42*1.5(M), 1/2"NPT(M), 1"NPT(M), 1-1/2"NPT(M), 2"NPT(M) | ||
| Ingress Protecion | IP67/IP68 | ||
| EMC | If the probe is inside a metal container or guide tube, it complies with EN 61326-1 (1997), the revised clause specifically for use in the workplace, specifically for Class A1A equipment. | ||
The following are the application scenarios of MG5200 Static Pressure Level Transmitter
● Water Treatment and Sewage Treatment
● Food and Beverage Industry
● Chemical and Petroleum Industries
● Oil and Gas Industry
● Pulp and Paper Industry
● Pharmaceutical Factories
● Electric Power Industry
● Mechanical and Metallurgical Industries
