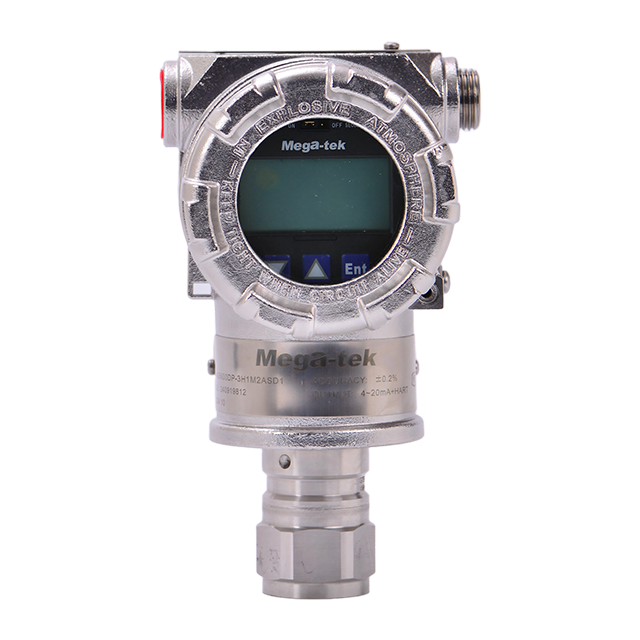

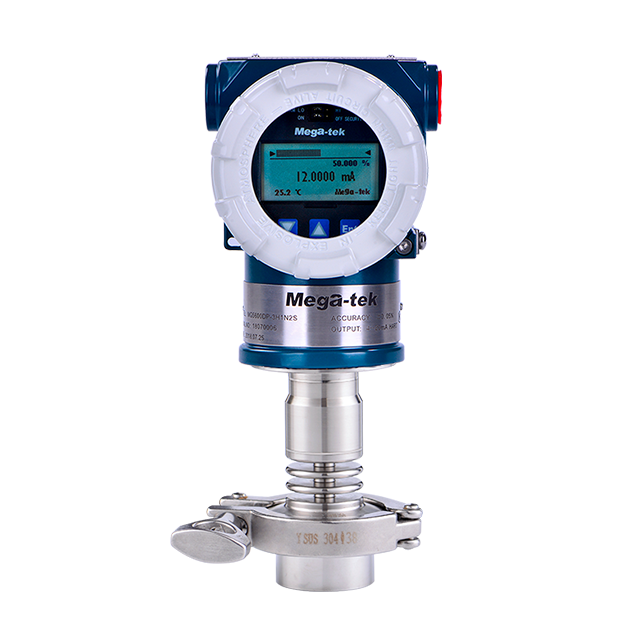

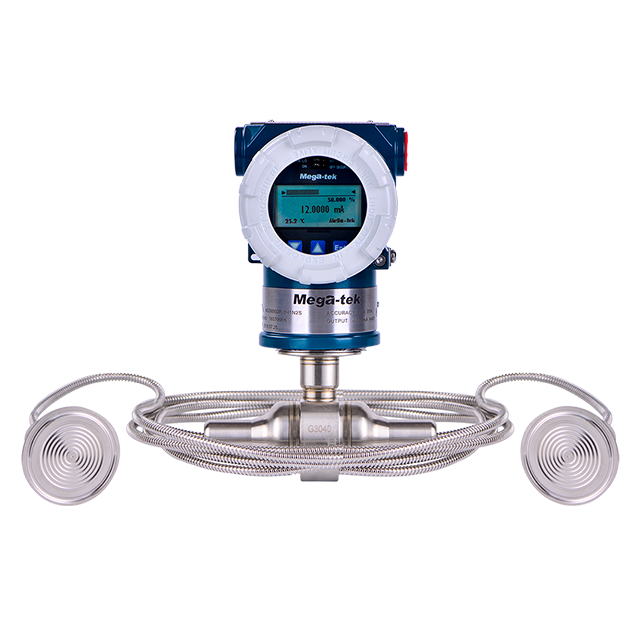

MG5700 Series
● Sensor full compensation technology;
● High measurement accuracy, capable of achieving an accuracy of 0.2%;
● Measurement medium: gas, steam, liquid;
● Sturdy fully welded stainless steel casing or cast aluminum casing;
● It has the function of in-situ cleaning/in-situ disinfection (CIP/SIP), with a temperature upper limit of up to 140 ℃;
● High overvoltage protection capability;
● Can achieve intrinsic safety and explosion-proof;
● Output HART/4~20mA.
MODEL CODE MG5700 SERIES SANITARY PRESSURE/DIFFERENTIAL PRESSURE TRANSMITTER
| MODEL | PRODUCT | ||
| MG5700 | SANITARY PRESSURE/DIFFERENTIAL PRESSURE TRANSMITTER | ||
| CODE | PRESSURE TYPE | ||
| GP- | Gauge Pressure | ||
| AP- | Absolute Pressure | ||
| CODE | MEASURING RANGE | ||
| 1 | 0~40kPa (Not applicable for process connections C18, C19） | ||
| 2 | 0~250kPa | ||
| 3 | 0~1MPa | ||
| 4 | 0~3MPa (Only applicable to process connections C1~C20 gauge pressure） | ||
| 5 | 0~10MPa (Only applicable to process connections C18~C20 gauge pressure and absolute pressure） | ||
| CODE | OUTPUT SIGNAL | ||
| B | 4~20mA DC | ||
| H | 4~20mA DC+HART | ||
| CODE | PROCESS CONNECTION | ||
| C1 | Tri-Clamp 1-1/2" Clamp (Maximum range 2MPa) | C11 | DIN11851 DN50 Clamp (Maximum range 2.5MPa) |
| C2 | Tri-Clamp 2" Clamp (Maximum range 2MPa) | C12 | SMS DN1-1/2" Joint nut (Maximum range 2.5MPa) |
| C3 | DIN32676 DN32 Clamp (Maximum range 1.6MPa) | C13 | SMS DN2" Joint nut (Maximum range 2.5MPa) |
| C4 | DIN32676 DN40 Clamp (Maximum range 1.6MPa) | C14 | IDF DN1-1/2" Joint nut (Maximum range 2MPa) |
| C5 | DIN32676 DN50 Clamp (Maximum range 1.6MPa) | C15 | IDF DN2" Joint nut (Maximum range 2MPa) |
| C6 | ISO2852 DN38 Clamp (Maximum range 4MPa) | C16 | DRD Flange connection (Maximum range 2.5MPa) |
| C7 | ISO2852 DN40 Clamp (Maximum range 4MPa) | C17 | Insert flush connection (Maximum range 2MPa) |
| C8 | ISO2852 DN51 Clamp (Maximum range 2.5MPa) | C18 | M20×1.5(M), ISO261, Applicable range 250kPa~40MPa |
| C9 | DIN11851 DN25 Clamp (Maximum range 2.5MPa) | C19 | G1/2"(M), BS2779, Applicable range 250kPa~40MPa |
| C10 | DIN11851 DN40 Clamp (Maximum range 2.5MPa) | C20 | G1-1/2"(M), BS2779, Applicable range 25kPa~5MPa |
| CODE | CABLE ENTRY | ||
| A | M12×1 Aviation plug (4-core) | ||
| N | 1/2"NPT-14 (F) | ||
| M | M20×1.5 (F) | ||
| CODE | WETTED MATERIAL | ||
| Diaphragm | Process Connection | ||
| 1 | 316L SST | 304 SST | |
| 2 | 316L SST | 316L SST | |
| 3 | Hastelly C-276 | 316L SST | |
| CODE | FILLING LIQUID | ||
| S | Sanitary silicone oil -10~125℃ | ||
| N | Neobee M-20 -10~180℃ | ||
| CODE | HOUSING MATERIAL | ||
| S | Stainless steel | ||
| A | Aluminum | ||
| CODE | OPTIONS | ||
| -I1 | NEPSI Intrinsically Safe Ex ia IIC T4 | ||
| -D1 | NEPSI Explosion-proof Ex d IIC T6 | ||
| -H1 | 3-A Certificate | ||
| -EP | Electric polishing of the liquid receiving part <0.4μm | ||
| -CS | Supporting clamp sleeve and sealing ring | ||
| -CW | Paired welding connectors | ||
| -EG | Explosion proof metal gland head | ||
| -HT | High temperature resistant type 0~150℃ | ||
| -SK | Skim (Cleaning for special service) | ||
| -MC | Provide factory test report | ||
The following are the application scenarios of MG5700 Sanitary Pressure Transmitter:
● Food and Beverage Industry
● Pulp and Paper Industry
● Pharmaceutical Factory
