MG3300 Series
The MG3300 Conductivity Analyzer is a microprocessor-driven industrial analyzer designed for continuous online monitoring of conductivity and temperature across an exceptionally wide measurement spectrum. Supporting both contacting and inductive electrode technologies with immersion, flow, and flange mounting options, it achieves IP68 protection for harsh submerged environments. The instrument delivers 4–20 mA, HART, and RS485/232 outputs alongside relay control, enabling seamless integration into power plant water chemistry, desalination, electroplating, and chemical concentration management systems.
Leveraging optimized microprocessor-based circuitry and premium surface-mount components, the MG3300 Conductivity Analyzer delivers exceptional measurement accuracy across an extraordinarily broad conductivity spectrum from 2 μS/cm to 2000 mS/cm. By supporting both contacting and inductive electrode technologies, the analyzer seamlessly adapts to ultrapure water monitoring, chemical concentration measurement, and high-salinity applications with consistent reliability and precision.
The MG3300 Conductivity Analyzer offers diverse mounting configurations including immersion, flow-through, and flange-connected assemblies to suit varying pipeline and vessel requirements. With ingress protection rated up to IP68, the analyzer and its electrodes withstand complete submersion and harsh industrial conditions, ensuring dependable performance in cooling towers, boilers, and outdoor water treatment facilities.

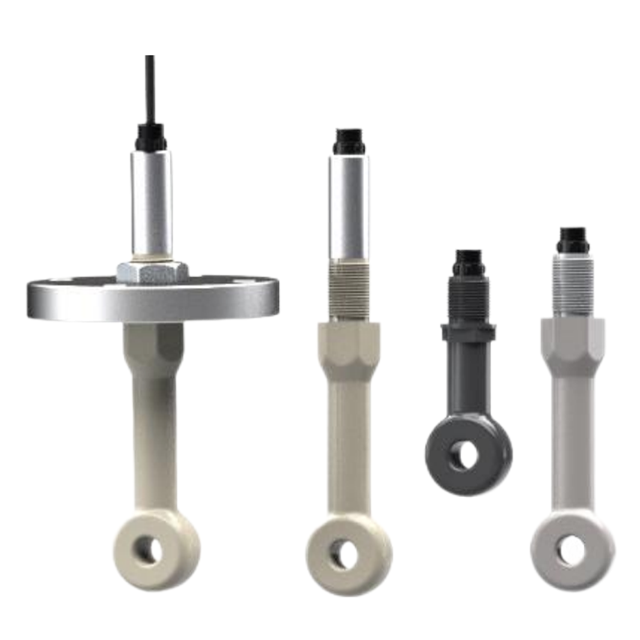

Featuring large annular-area inductive electrodes that eliminate direct media contact, the MG3300 Conductivity Analyzer minimizes polarization, fouling, and routine maintenance demands. Wetted components are constructed from corrosion-resistant materials such as 316L stainless steel, polysulfone, and platinum, guaranteeing extended service life in aggressive chemical, seawater, and high-temperature process environments.
General Specifications | Details |
Measurement Range | 0~20us/cm, 0~200us/cm, 0~2000us/cm, 0~20000us/cm, 0~200ms/cm Others |
Resolution | 0.001/0.01 (depending on electrode) |
Basic Error | Conductivity: ±1%F·S, TDS: ±1%F·S Temperature: ±0.5℃ |
Stability | ±0.2%F·S/24h |
Repeatability | ≤0.2%F·S |
Power Supply | 24VDC; 220VAC |
Output Signal | 4-20mA; 4-20mA+HART; RS485/232; Relay |

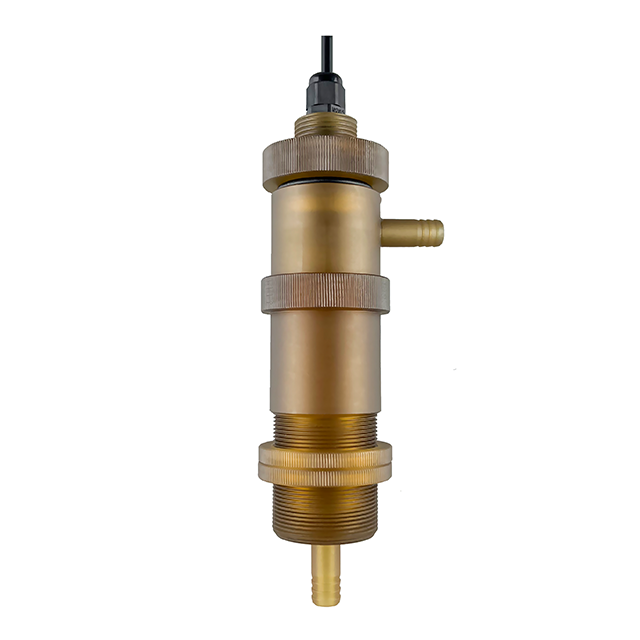

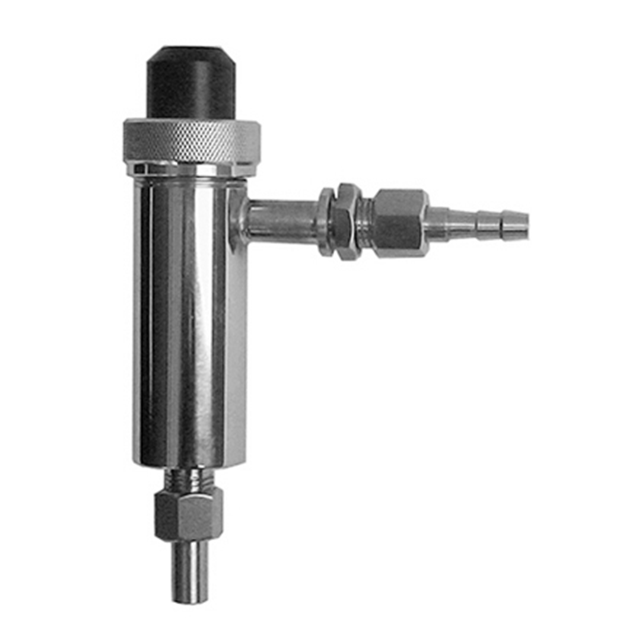

Installation Method | Immersion type; Flow cell; Flange |
Ingress Protection | IP65; IP68 |
Process Pressure | Atm, High pressure special inquiry |
Process Temperature | 0~60℃; 0~130℃; High temperature special inquiry |
Operating Environment | Ambient temperature: -10~45℃ Relative humidity: 90% |
In thermal power plants and energy facilities, the MG3300 Conductivity Analyzer performs continuous monitoring of critical water circuits including cooling water, boiler feedwater, saturated steam condensate, and condensate return. By tracking conductivity and temperature in real time, it ensures optimal water chemistry conditions, prevents scale formation and corrosion, and safeguards turbine-generator equipment from damage caused by impurity ingress.
For chemical production lines and petrochemical refineries, the MG3300 Conductivity Analyzer delivers accurate conductivity measurement of process liquids, including aggressive acids, alkalis, and salt solutions. It enables precise concentration control in chemical blending operations and reaction vessels, while its corrosion-resistant electrode materials ensure reliable performance in harsh media environments.
In metallurgical plants and electroplating facilities, the MG3300 Conductivity Analyzer monitors the concentration of plating baths, pickling solutions, and rinse waters. Accurate conductivity data helps maintain optimal chemical composition in treatment tanks, ensuring consistent coating quality, minimizing chemical waste, and preventing equipment corrosion caused by improper solution strength.
The MG3300 Conductivity Analyzer is extensively deployed in seawater desalination, reverse osmosis, ion exchange, and EDL systems. It tracks conductivity across raw seawater intake, intermediate process streams, and final product water, ensuring membrane efficiency and produced water quality. In municipal and industrial water treatment plants, it monitors influent and effluent conductivity to verify compliance with discharge and reuse standards.

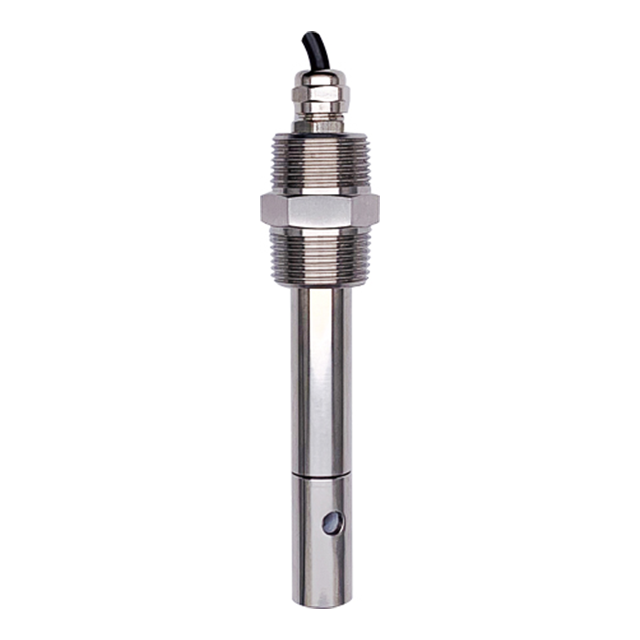

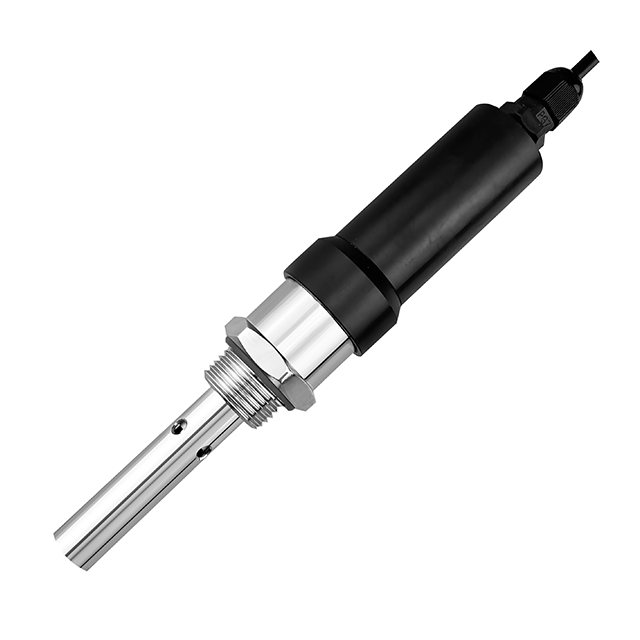

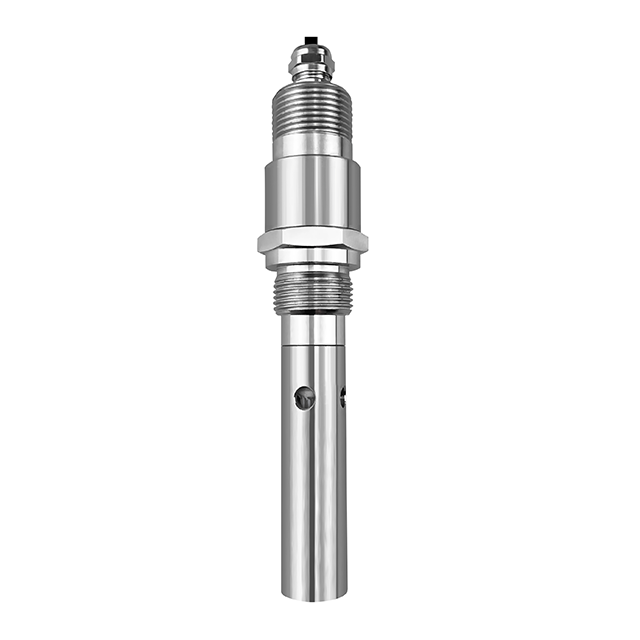

The MG3300 Conductivity Analyzer supports both contacting and inductive conductivity electrodes with multiple cell constants including K=0.01, 0.1, 1.0, 10.0, and 30.0. This versatility enables accurate measurement across an ultra-wide conductivity spectrum from 2 μS/cm to 2000 mS/cm, allowing users to configure the optimal sensor for everything from ultrapure water to highly concentrated chemical solutions.
Yes. The standard process temperature range covers 0–60°C, with high-temperature variants available for 0–130°C applications. The transmitter and electrode assemblies achieve IP68 ingress protection, ensuring reliable performance in fully submerged tanks, deep wells, and harsh outdoor installations exposed to constant moisture.
Installation is straightforward. The MG3300 Conductivity Analyzer accommodates immersion, flow-through, and flange-mounted configurations with simple mechanical integration. It offers comprehensive output options including isolated 4–20 mA, HART protocol, RS485/232 digital communication, and configurable relay contacts, ensuring seamless connectivity with DCS, PLC, and SCADA architectures.
