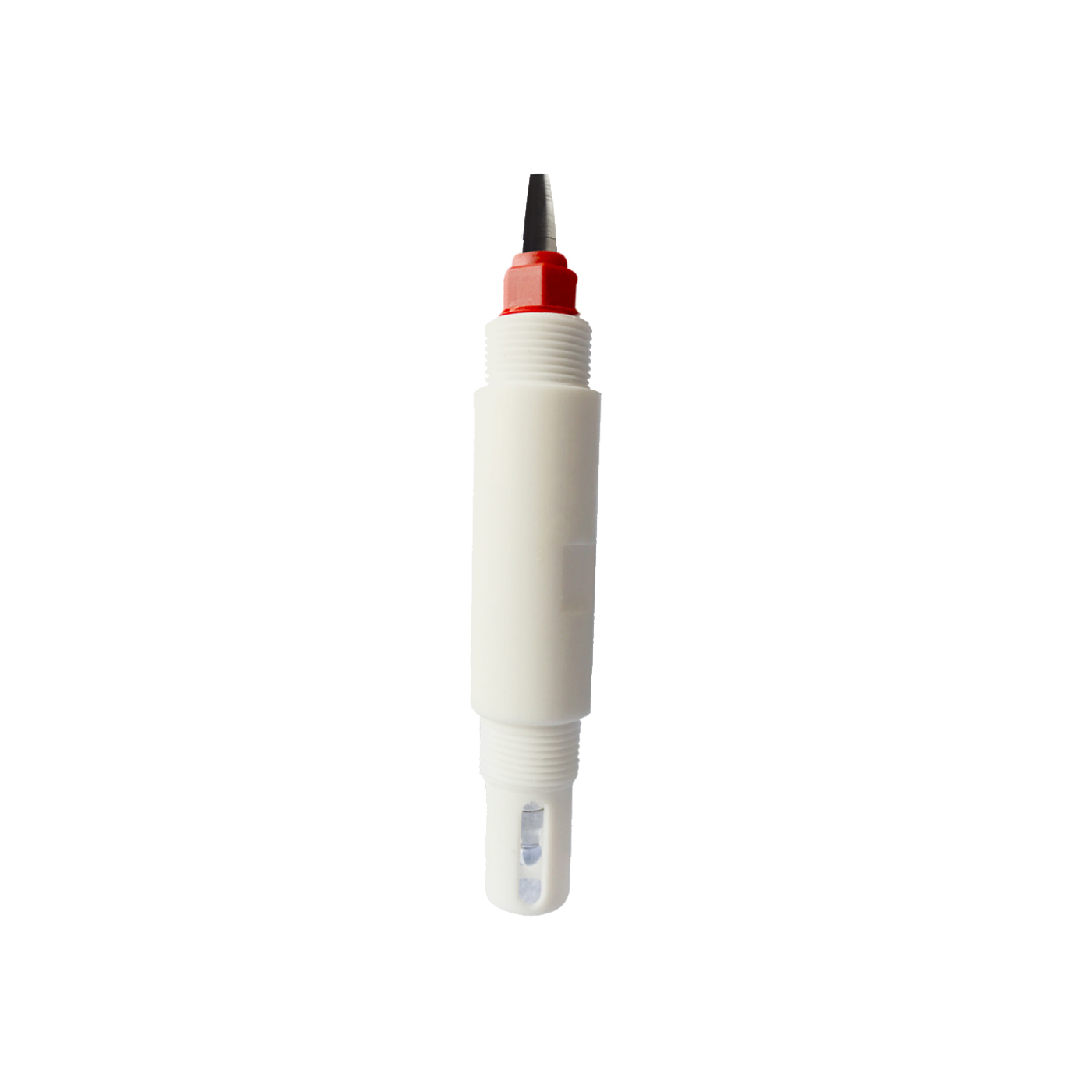

The MG3100 PH/ORP Analysis Instrument is a high-performance online water quality monitoring instrument equipped with a built-in microprocessor. It is designed to continuously monitor and control pH value, ORP value and temperature value of aqueous solutions, covering a wide spectrum of industrial and environmental water treatment scenarios. Featuring an LCD liquid crystal display and intelligent Chinese/English optional menu operation, the instrument simplifies user interaction while delivering accurate and reliable data. It is compatible with multiple electrode installation methods, including flow-through, submerged, pipeline and flange types, making it adaptable to diverse on-site working conditions. With functions like automatic/manual temperature compensation, multi-point calibration and relay control, the MG3100 stands out as a versatile solution for real-time water quality management.
The instrument is equipped with a double high impedance preamplifier, which ensures high input impedance, strong anti-noise and anti-interference ability. It supports three calibration methods: two-point calibration, three-point calibration and known concentration calibration, effectively guaranteeing measurement accuracy and stability.
Users can freely set the measurement range and high/low limit alarm thresholds. The device is configured with two sets of relay control switches with adjustable hysteresis range, and supports software-selectable output modes including 0-10mA or 4-20mA, as well as RS485/232 and PA/DP communication protocols.
It features same-screen multi-parameter display, showing pH/ORP value, temperature and working status simultaneously. The self-cleaning switch setting allows users to customize cleaning time and interval. The instrument requires simple maintenance, with monthly calibration recommended, and a password protection function prevents unauthorized misoperation.
Parameter | Details |
Measurement Range | pH: 0×14.00pH; ORP: -2000×+2000mV |
Resolution | pH: 0.001pH; ORP: 1mV |
Basic Error | pH: ±0.1pH/±0.001pH; ORP: ±3mV; Temperature: ±0.5℃ |
Stability | pH: ≤0.02pH/24h; ORP: ≤2mV/24h |
Power Supply | 24VDC; 220VAC |
Output Signal | 4-20mA; 4-20mA+HART; RS485/232; PA/DP |
Installation Method | Immersion type; Flow cell; Flange |
Ingress Protection | IP65; IP68 |
Process Pressure | 0×3bar; 0×6bar; High pressure special inquiry |
Process Temperature | -20×60℃; 60℃×130℃; High temperature special inquiry |
Operating Environment | Ambient temperature: -10×60℃; Relative humidity: ≤90%; No strong magnetic interference |
In power plants, the MG3100 is critical for monitoring the water quality of supply water, saturated water and condensate water. Stable pH and ORP values are essential to prevent pipeline corrosion and scaling, which directly affects the efficiency and service life of power generation equipment. The instrument’s real-time monitoring and alarm functions can promptly detect water quality anomalies, avoiding potential equipment failures.
During petrochemical production processes, the instrument monitors the pH value of reaction solutions to ensure the smooth progress of chemical reactions and the quality of finished products. In metallurgical electronics, it is used to control the acidity and alkalinity of electroplating solutions, ensuring the uniformity and quality of electroplated layers.
For domestic and industrial wastewater treatment, the MG3100 tracks the changes of pH and ORP in the treatment process, helping to optimize the dosing of chemicals and ensure that the effluent meets discharge standards. In the food and beverage industry, it monitors the pH value of raw materials and production water, complying with food safety regulations and guaranteeing product quality.
In pharmaceutical production, precise pH control is required for drug synthesis and purification processes. The MG3100’s high accuracy and stability meet the strict quality requirements of the pharmaceutical industry. In biological fermentation, it monitors the pH changes of fermentation broths, providing data support for optimizing fermentation conditions and improving product yields.
For optimal performance, we recommend calibrating the instrument once a month, which ensures the accuracy of measurement data.
Yes, the instrument supports optional Chinese and English menus, which can be set according to user needs.
It supports multiple communication protocols including RS485/232 and PA/DP, facilitating data transmission and integration with industrial control systems.
