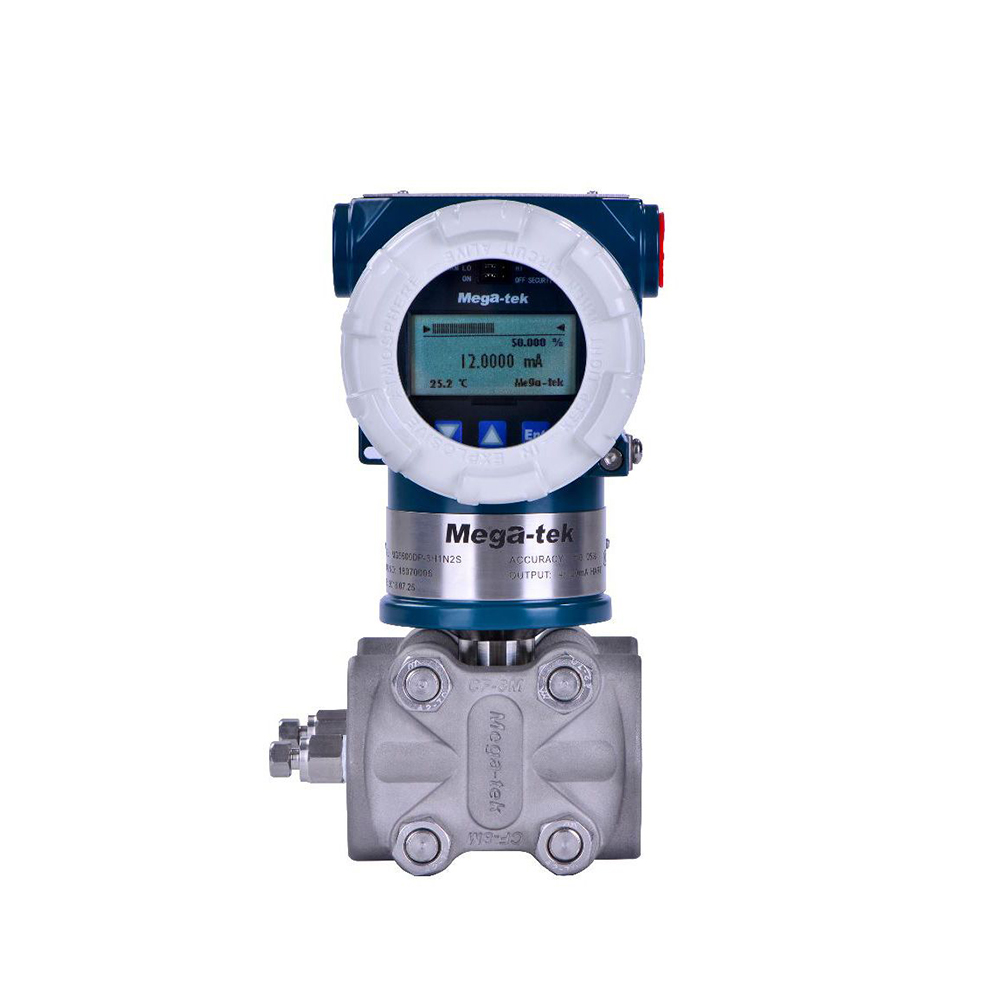

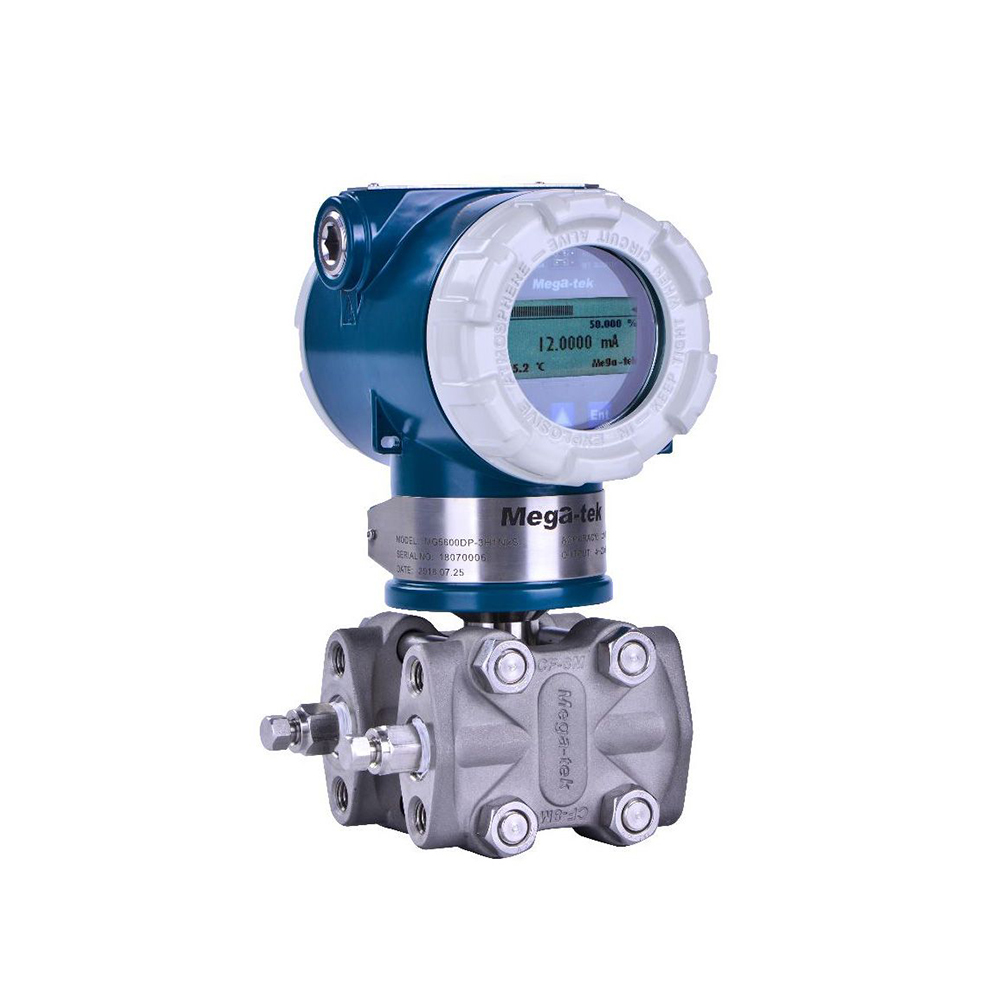

The MG5600DP Series Differential Pressure Transmitter is a high-performance industrial measurement device developed by Mega-tek, designed for accurate and stable differential pressure detection of liquid, gas, and steam media. It is mainly composed of personalized sensor components and central processing circuit modules. The sensor components integrate corrosion-resistant flexible isolation diaphragms, double beam suspended MEMS monocrystalline silicon pressure sensors, and integrated anti-high pressure overload center diaphragms, which lay a solid foundation for ultra-high overvoltage performance and measurement accuracy. With multiple explosion-proof certifications and strong anti-interference ability, this transmitter is an ideal choice for harsh industrial environments.
Adopting advanced double beam suspended MEMS monocrystalline silicon pressure sensors, the product achieves high precision with total accuracy up to ±0.02%. It also has excellent long-term stability, with annual drift less than ±0.05% and 10-year drift less than ±0.1%.
The sensor capsule embeds pressure and temperature compensation, personalized information processing, and storage circuits. This allows arbitrary interchangeability of circuit modules without recalibration, greatly reducing maintenance time and costs.
The panel can simultaneously display pressure value, current value, percentage value, and sensor capsule temperature. It also supports 360° display orientation adjustment, which can be flexibly configured through three on-panel buttons.
The circuit adopts redundant connections and fully plug-in anti-loosening module design. It has overload, lightning protection, and strong electromagnetic interference resistance functions, ensuring safe operation in complex industrial sites.
General | ||
Product | MG5600 series pressure/differential pressure transmitter | |
Medium Range Down Ratio | Liquid,gas,steam | |
Housing Material Cable Entry | High-pressure cast aluminum or 316 stainess steel | |
Electric | ||
Output signal | Two-wire 4~20m ADC,HART | |
Input Voltage Load Resistance | Geneal voltuge10.5-45VDC,intirsialy sfe voitage 105-26VDC,HART commuricafon must ersure 16.5VDCa abave | |
Load Capacitance | Below 0.55mF | |
Load Inductance | Below 3.3mH | |
Power Line Spacing Saturation Current | 150mm or more (Please avoid parallel wiring) | |
Alarm Current AdjustmentFunction | Upper limitis 20.8mA,lower lmit is 3.8mA(Mode can be set) | |
Output | Linear output square root output (can be adjusted remotely through configuration software) | |
Transient voltage | In line with正EEE standard 587B class 1kV peak 10×100s,3KV peak 8×20s,6kV peak 1.2x50s | |
resistant terminals | In line with正EEE standard 472 over voltage tolerance SWC 2.5kVpeak,1MHz wave fom | |
Enviroment | ||
Ambient temperature | -40~185F(-40~85*℃ Inert fill-40~140*F(-40~609 | |
Storage Temperature | -40～194'F(-40～90° | |
Process Temperature | -40~302*F(-40~150℃) | |
Weather Ability | The product complies with DIN40040GPC and the main circuit boards have undergone three | |
Measurement Performance | ||
Range | 0~700bar (0~70MPa) | |
Maximum over pressure limit value | 0~1000bar(0~100MPa) | |
Total Accuracy | ±0.02%,±0.03%,±0.04% | Micro differential pressure±0.2%(range down ratio s2), |
Square root Out put accuracy | Out put ≥50% | Reference accuracy |
Output 50%to Descent Point | Reference accuracy X 50 | |
Square root output (%) | ||
Power influence | ±0.005%/1V | |
Static pressure influence | ±(0.025%of range+0.05%span)/3.4MPa | |
Ambient temperature influence | ±(0.05%range+0.09%upper range limit) | |
Stabiity | Annual drift less than±0.05%,long-tem drit less than±0.1%/10 years | |
Response time | 90ms | |
Damping time | The time constant can be adjusted from 0to 32.0 seconds | |
Explosion-proof Certification | ||
FM | Factory Mutual(FM)Approvals | |
ATEX | European Commission | |
NEPSI | National instrument explosion-proof safety supervision and inspection station | |
SIL | Single sets meet SILZ safety requirement,redundant use meets SL3 safety requirements | |

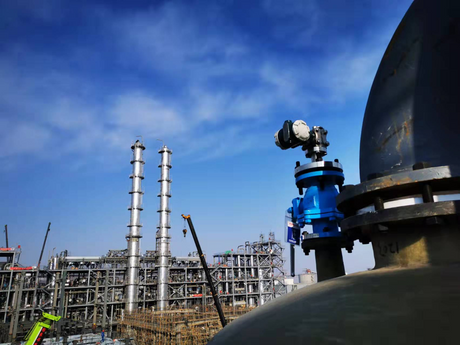

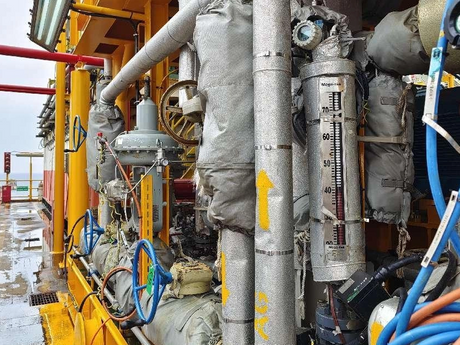

In petrochemical production lines, the MG5600DP transmitter is widely used to measure the differential pressure of pipelines and storage tanks. It can accurately monitor the pressure difference of crude oil, natural gas, and chemical reagents during transportation and storage. Its corrosion-resistant and explosion-proof features ensure safe operation in flammable and explosive environments, preventing leakage and other safety accidents.
During the metal smelting process, high temperature and dust are common problems. The transmitter’s high-temperature resistance and strong anti-interference ability can adapt to harsh working conditions. It is used to measure the differential pressure of smelting furnace gas and cooling water systems, helping to optimize smelting processes and improve production efficiency.

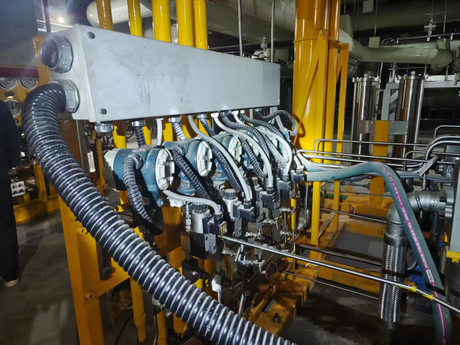

In thermal power plants and hydropower stations, the product is applied to measure the differential pressure of boiler feedwater, steam pipelines, and condenser systems. Its high precision and stability ensure the safe and efficient operation of power generation equipment, reducing the risk of equipment failure caused by pressure fluctuations.
The MG5600DP transmitter meets the hygiene requirements of food and pharmaceutical production. It is used to measure the differential pressure of raw material transportation pipelines and fermentation tanks, ensuring that the production process complies with industry standards and avoiding contamination of products.
The zero and full range points can be adjusted on-site or configured through the three buttons on the panel. It also supports remote adjustment of linear/square root output via configuration software.
Yes. The main circuit boards undergo three-proof paint treatment, and the sensor circuit is sealed with adhesive, complying with DIN40040GPC weather resistance standards.
The load capacitance should be below 0.55mF, and the load inductance should be below 3.3mH.
