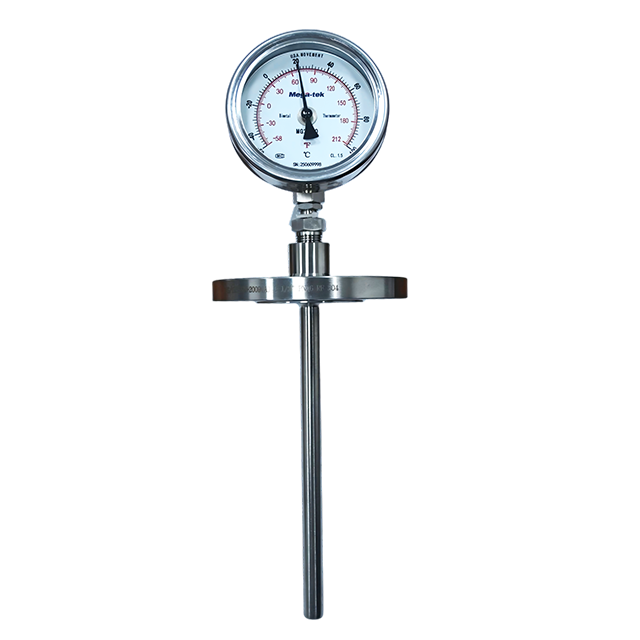

MG2300 Series
● Thermal resistance, bimetal thermometer or temperature transmitter are integrated, which is suitable for long-term operation in harsh environments.
● It can not only indicate temperature on site, but also transmit signals of thermal resistance and two-wire temperature transmitter.
● The remote transmission electric signal has the features of high accuracy and stable operation, and can also be directly output in the form of two-wire system to improve the anti-interference ability in the transmission process of high signal distance.
● It is cost-effective.
| General Specifications | |||
| Product Name | MG2300 Bimetal Thermometer | ||
| Measuring Parameters | Temperature | ||
| Housing Type | Single chamber | ||
| Housing Material | High-pressure cast aluminum or 304 stainless steel | ||
| Cable Entry | 1/2"NPT or M20×1.5 | ||
| Material | 316L SST, 304 SST, 316 SST, Ta, 304L SST, PTFE lining | ||
| Electrical Parameters | |||
| Input Voltage | General voltage 13.5~30 VDC | ||
| Output | Two-wire 4~20mA DC, HART | ||
| Damping Time | 0.2~30S | ||
| Transient Voltage Terminal Resistance | In line with I EEE standard 587 B class 1kV peak 10×100s, 3kV peak 8×20s, 6kV peak 1.2× 50s | ||
| Environmental Paramters | |||
| Operation Temperature | -176~932℉(-80~500℃) | ||
| Ambient Temperature | -40~185℉(-40~85℃) | ||
| Storage Temperature | -40~176℉(-40~80℃) | ||
| Weather Ability | DIN 40040 GPC | ||
| Measuring Performance | |||
| Accuracy | ±1%, ±1.5% | ||
| Dial Size | 80mm, 100mm, 150mm | ||
| Structural Style | Universal type, axial type, radial type | ||
| Probe Rod Length | 50~2000mm | ||
| Probe Rod Diameter | 6mm, 6.35mm, 8mm, 10mm (Insertion depth 50~1250mm) 12mm, 14mm (Insertion depth 1250~2000mm) | ||
| Threaded Style | Thread of M27×2 or 1/2"NPT or M33×2, Flange | ||
| Nominal Pressure | 6.3MPa | ||
| Signal Deviation | |||
| Index Number | Pt100 (Platinum resistance) Allowable deviation: A: ±（0.15+0.002|t|） B: ±（0.30+0.005|t|） | ||
| Basic error of temperature transmitter: ± 0.1%, ± 0.2% | |||
| Explosion -Proof Certification | |||
| CEX | Flame-proof | ||
| CEI | Intrinsic safety | ||
| Mechanics | |||
| Factory Seal | Original seal | ||
| Ingress Protection | IP67/IP68 | ||
| EMC | If the probe rod is installed in a metal container or a guide tube, it complies with EN61326-1 (1997), and the revised articles specially used in the workplace are specific to A1A equipment | ||
The following are the application scenarios of MG2300 Bimetallic Thermometers
● Oil&Gas
● Metallurgy and Machinery Industry
● Chemical Industry
● Power Industry
● Water Treatment and Sewage Treatment
● Food and Beverage Industry
● Pharmaceutical Industry
