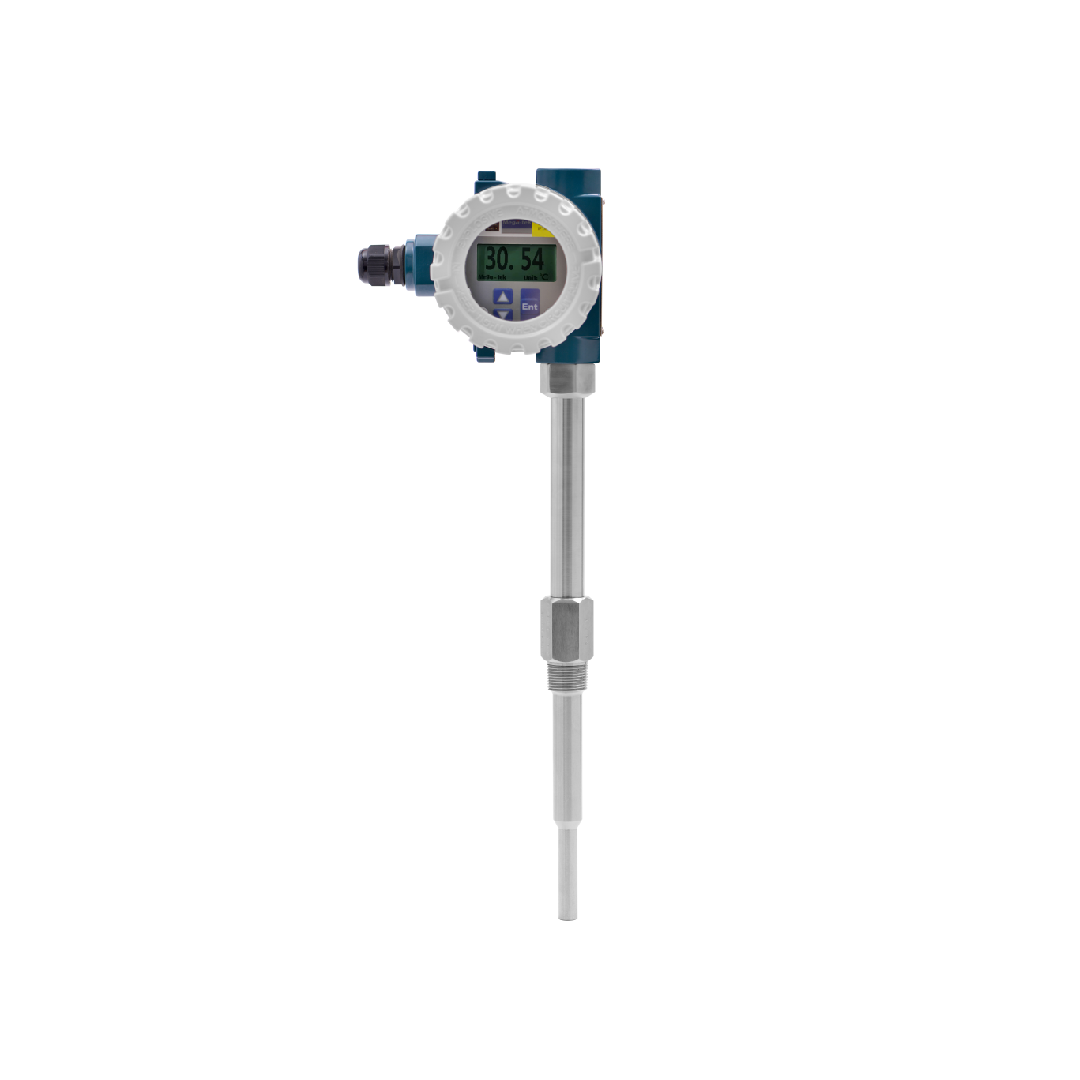

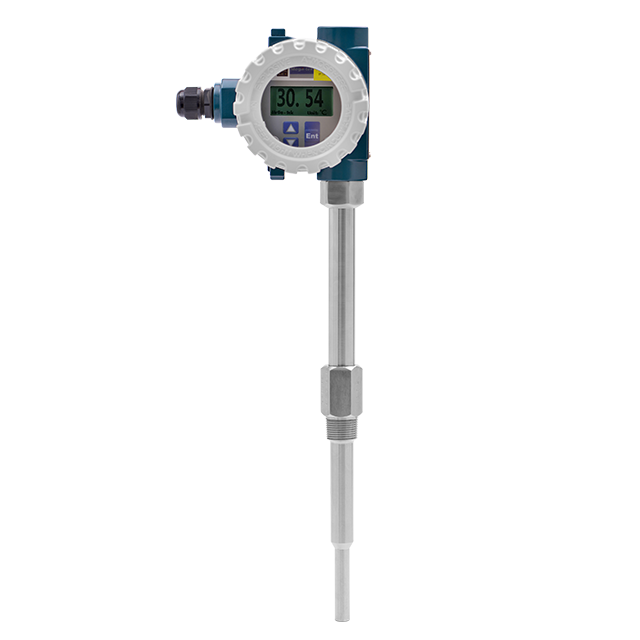

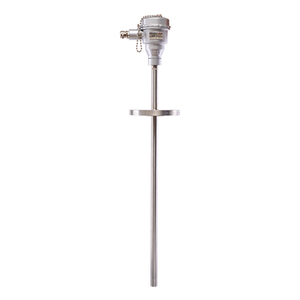

The MG2600 supports an operating temperature range from -200°C to 1800°C, covering cryogenic to ultra-high-temperature applications. It is compatible with multiple sensor types, including RTD and thermocouples (B, S, R, K, E, T, V), enabling flexible adaptation to diverse industrial processes.
Value:
One transmitter can meet most industrial temperature measurement requirements, reducing system complexity and equipment selection costs compared with conventional single-range transmitters.
With measurement accuracy up to ±0.1% span (±0.2% optional) and a thermal response time of 1 second, the MG2600 delivers precise and stable temperature signals even in dynamic process conditions. Advanced signal processing ensures low drift and high repeatability over long-term operation.
Value:
Designed not only for monitoring but also for precision control, making it suitable for critical process applications where temperature accuracy directly affects safety, efficiency, and product quality.

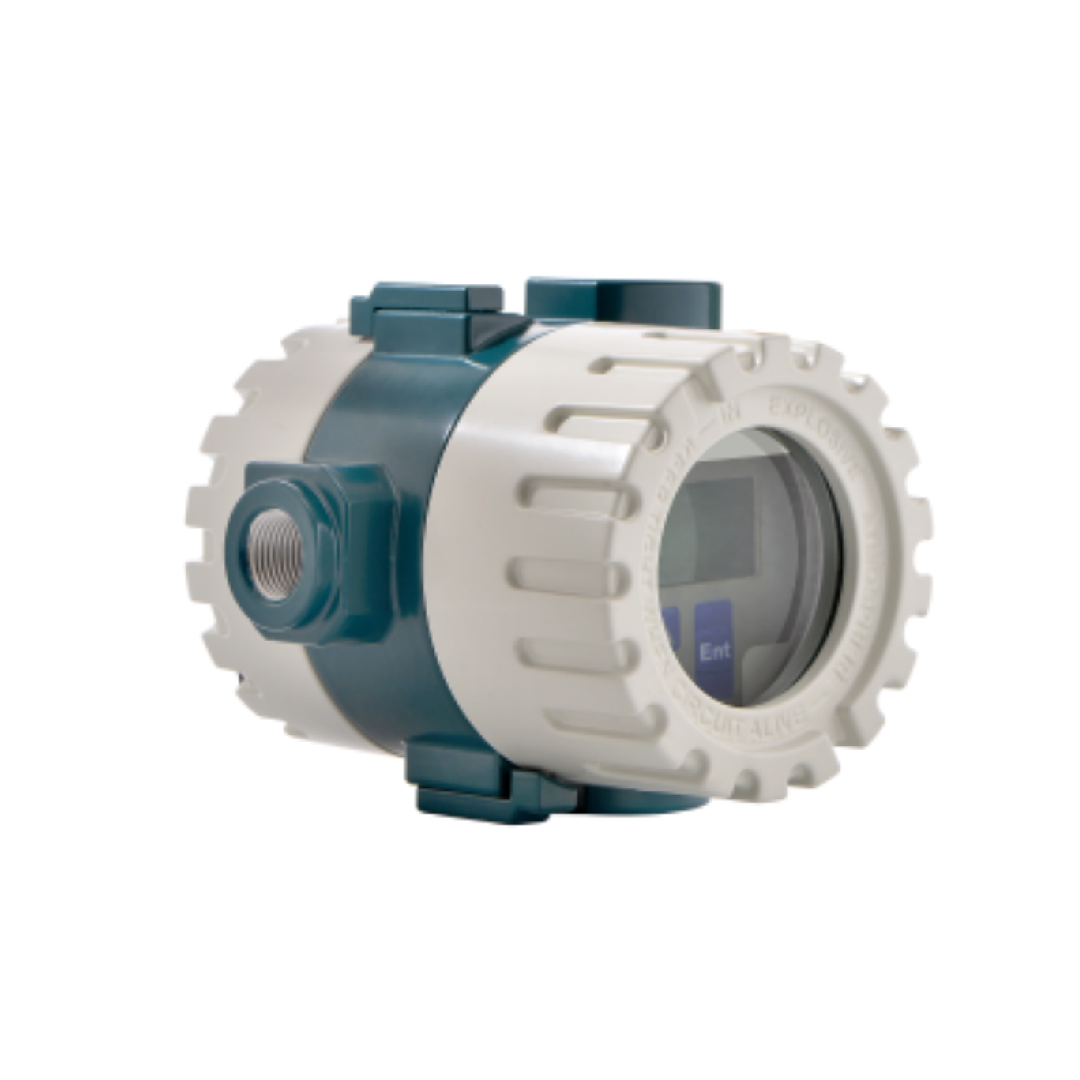

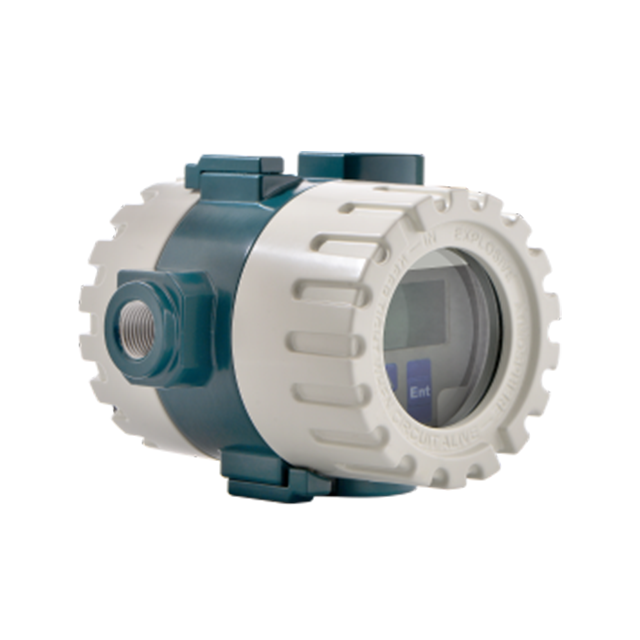

The MG2600 provides 4–20mA + HART output and operates on 12–35VDC, with built-in polarity reverse protection and EMC compliance to EN61000-4-4 / EN61000-4-5 Level 4. Its rugged housing with IP66/IP67 protection and optional single/dual-compartment structure ensures reliable performance in harsh industrial environments.
Value:
Seamless integration with PLC, DCS, and SCADA systems, combined with strong anti-interference capability and environmental resistance, makes the MG2600 suitable for complex automation and outdoor installations.
