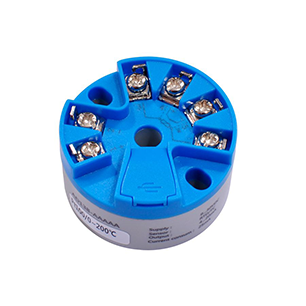

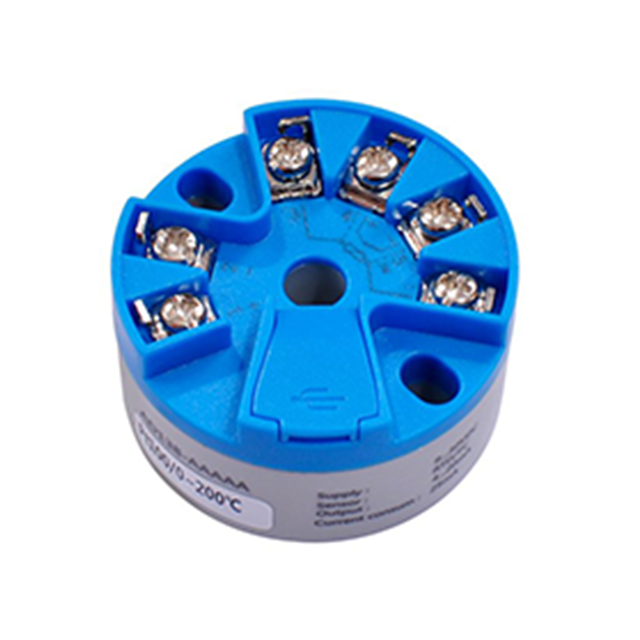

The MG2500 Series Temperature Transmitter is a high-performance temperature detection instrument tailored for industrial automation process control. It comes with two flexible installation options: modular and rail type, enabling seamless integration into diverse industrial control systems. This transmitter is specially engineered for harsh working conditions where the measured medium experiences strong pressure pulse changes, pressure shocks, or frequent sudden unloading, as well as sites with intense environmental vibrations.
By perfectly matching with thermistor and thermocouple sensors, the MG2500 can accurately convert wide-range temperature signals (-200~1800℃) into standard binary 4-20mA/HART electrical signals. These signals can be directly transmitted to display instruments, regulators, recorders and DCS systems, realizing precise temperature measurement and control. With easy installation and cost-effective pricing, it has gained widespread application in key industries including Metallurgy, Power, Petroleum, Chemical, Light Industry and Machinery.
The transmitter adopts anti electric fast transient (pulse swarm) interference design, which can effectively resist electromagnetic interference in complex industrial environments. It meets the requirements of EN61000-4-4 (GB/T17626.4) severity level 4 and EN61000-4-5 (GB/T17626.2) severity level 4, ensuring stable signal output even in harsh electromagnetic conditions.
It has obtained comprehensive hazardous location certifications worldwide, including CEX explosion-proof certification and CEI intrinsic safety certification. A single unit complies with SIL2 safety requirements, while redundant use meets SIL3 safety standards, making it safe to use in flammable and explosive scenarios.
The most advanced manufacturing processes provide robust component packaging, significantly enhancing the product’s operational reliability and service life. Experienced product consultants and a comprehensive service system offer full-process application assurance, with various shell and junction box options to meet different installation needs.
| General Specifications | |
| Product Description | MG2500 Series Temperature Transmitter |
| Measurement Parameters | Temperature |
| Housing Structure | Single Compartment,Dual Compartment |
| Case Material | High pressure cast aluminum or stainless steel |
| Cable/Conduit Entry | 1/2"NPT or M20×1.5 |
| Elecric | |
| Input Voltage | 12~35VDC,protection against polarity reversal. |
| Output Signal | 4~20mA,HART |
| Thermal Response Time | 1 Second |
| Lightning | Meet the requirements of EN61000-4-4(GB/T17626.4)severity level4 |
| Protection Device | and EN61000-4-5(GB/T17626.2)severity level 4 |
| Ambience | |
| Operation Temp.Limit | -112~2932°F(-200~1800℃) |
| Ambient Temp.Limit | -45~185°F(-45~85℃) |
| Storage Temp.Limit | -45~185°F(-45~85℃ |
| Humdity Temp. | 0~80%relative humidity |
| Sensor Options | B\S\R\K\E\TV |
| Hazardous Location Certificates | |
| SIL | Single unit complies with SIL2 safety requirements,redundant use complies with SIL3 safety requirements |
| Explosion-proof Certification | |
| CEX | Explosion-proof |
| CEI | Intrinsic safety |
| D/A Accuracy | |
| ±0.1%of span,±0.2%of span | |
| Machinery | |
| Sealing | Factory sealing |
| Enclosure Ratings | IP67/P66 |
| EMC | If installed in a metal container or stationary tube,in accordance with EN61326-1(1997),the revprovisions specifically for Class AlA equipment in the workplace |
In oil and gas exploration, drilling and pipeline transportation, the MG2500 can withstand high-pressure pulse shocks from media. It accurately monitors the temperature of crude oil and natural gas during transportation, preventing safety accidents caused by excessive temperature. Its explosion-proof and intrinsic safety design ensures stable operation in flammable and explosive areas such as oil refineries.
Metallurgical smelting processes involve ultra-high temperatures and violent vibrations. The MG2500’s wide temperature measurement range (-200~1800℃) covers the full temperature range of smelting and cooling processes. It can be installed on blast furnaces and continuous casting equipment to provide real-time temperature data, helping operators adjust process parameters and improve product quality.
Chemical production often involves corrosive media and harsh working environments. The transmitter’s high-pressure cast aluminum or stainless steel shell has excellent corrosion resistance. It is widely used in reactor temperature control and chemical storage tank temperature monitoring, ensuring the safety and stability of the production process.
In thermal power plants and nuclear power plants, the MG2500 monitors the temperature of key equipment such as boilers and turbines. Its fast thermal response time (1 second) can quickly feed back temperature changes, avoiding equipment damage caused by overheating. The 4-20mA/HART communication function enables remote data transmission and parameter adjustment, improving the automation level of power plants.
The MG2500 is compatible with B, S, R, K, E and TV type thermocouple and thermistor sensors, meeting most industrial temperature measurement needs.
Yes. Its enclosure rating reaches IP67/P66, which can effectively prevent dust and water intrusion, and it can adapt to outdoor ambient temperature ranging from -45℃ to 85℃.
You can use the HART communication protocol to connect the transmitter with a HART communicator, realizing remote configuration of parameters such as temperature measurement range and output signal calibration.
