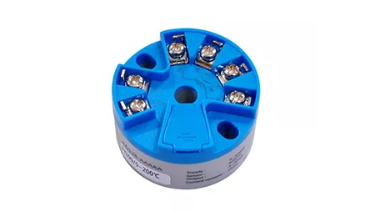

Inaccurate temperature measurement quickly leads to process inefficiencies. Degraded product quality and critical safety hazards often follow. For highly regulated industries, unverified drift translates directly into compliance failures. You must address these errors proactively before they impact your bottom line. Calibrating a smart Temperature Transmitter, such as the widely used Rosemount 3144P or 644, requires much more than basic analog adjustments. It demands precise digital sensor trimming and accurate protocol communication.
We built this guide to help you navigate modern calibration complexities. You will learn the critical differences between physical sensor correction and simple output scaling. We provide a standardized, engineering-grade workflow to evaluate transmitter accuracy. You will learn how to execute digital calibrations properly using modern field tools. Furthermore, we will show you how to optimize maintenance intervals using data-driven metrics. This approach effectively reduces your Total Cost of Ownership (TCO) while ensuring maximum process reliability.
Reranging is not calibration: Changing the 4–20 mA output scale does not correct underlying sensor drift.
Tooling matters: Modern calibration requires a digital field communicator (like the AMS Trex) rather than legacy analog tools.
System matching reduces error: Inputting Callendar-Van Dusen (CVD) constants can compress total system error from ±1.05 °C down to ±0.21 °C.
Data-driven intervals: Calibration frequency should be calculated mathematically using Total Probable Error (TPE) rather than arbitrary calendar dates.
Many facilities operate under a fundamental misconception about calibration. Technicians often assume adjusting the lower and upper range values corrects device inaccuracies. We call this reranging. Reranging merely shifts the 4–20 mA output scale to represent a different temperature span. It completely fails to correct physical sensor degradation or microprocessor drift. If the physical probe reads 5 °C too high, changing the span limits will just transmit that same error across a new scale.
True calibration happens digitally. A sensor input trim modifies the digital interpretation of the sensor's raw input within the transmitter's microprocessor. You apply a known, precise physical temperature to the sensor. The microprocessor then compares its internal reading to your known standard. When you execute the trim command, you force the microprocessor to align its internal digital value with the true physical temperature. This establishes genuine measurement accuracy. It directly compensates for long-term metallurgical drift in the physical probe.
Digital calibration does not end at the microprocessor. You must also consider the digital-to-analog (D/A) converter. The D/A converter translates the internal digital temperature value into the 4–20 mA loop current. Over time, environmental factors cause this converter to drift. An output trim adjusts the D/A converter. It ensures the 4–20 mA signal perfectly matches the microprocessor's digital value. You should execute an output trim whenever you notice a discrepancy between the digital HART reading and the analog current reaching your control system.
Understanding this technical distinction acts as a primary quality assurance mandate. Decision-makers must audit their facility's Standard Operating Procedures (SOPs). You need to ensure technicians perform actual digital sensor trims rather than quick reranging fixes. Proper trimming eliminates unseen errors. It prevents process deviations, saves energy, and protects safety-critical loops from operating on false data.
Executing a successful digital calibration requires specific hardware. Legacy analog multimeters and standard decade boxes cannot communicate with smart microprocessors. You need specialized digital equipment to interact with the device diagnostics and memory banks.
Modern field calibration depends on two primary tools. First, you need a digital field communicator. The AMS Trex Device Communicator serves as the industry standard, though any certified HART or Foundation Fieldbus communicator will work. Second, you must supply a precise reference temperature. We highly recommend using a certified dry-block calibrator. If you cannot remove the sensor from the process, use a high-precision digital simulator to replicate the exact resistance or millivolt signals.
You must configure your setup based on the specific sensor loop. RTDs (Resistance Temperature Detectors) and Thermocouples demand different approaches.
RTD Loops: These rely on precise resistance measurements. You must account for lead wire resistance. Always use a 3-wire or 4-wire configuration during calibration to cancel out wire-induced errors.
Thermocouple Loops: These generate minute millivolt signals based on temperature differentials. You must actively manage cold junction compensation (CJC). Ensure your simulator or communicator properly references ambient temperature to avoid baseline shifts.
Before initiating adjustments, always verify the initial factory baselines established by the Temperature Transmitter manufacturer. Check the device manual for acceptable deviation limits. Do not trim a transmitter if it operates well within its factory specification, as you might introduce unnecessary human error.
You must also mitigate environmental risk factors. Electromagnetic interference (EMI) from nearby motors or variable frequency drives can skew your readings. Isolate the transmitter from high EMI zones during calibration. Additionally, protect the testing equipment from drastic ambient temperature fluctuations, which can alter the resistance of your test leads.
Component | Requirement / Action | Common Mistake to Avoid |
|---|---|---|
Communicator | AMS Trex or compatible HART/Fieldbus device. | Using outdated device descriptions (DDs) that lack trim menus. |
Reference Source | Dry-block calibrator or high-end precision simulator. | Using uncalibrated reference tools with high baseline error. |
Thermocouple Setup | Enable Cold Junction Compensation (CJC) appropriately. | Using copper wire instead of matched thermocouple extension wire. |
RTD Setup | Use 3-wire or 4-wire connection methods. | Ignoring lead wire resistance, especially on long cable runs. |
Standardizing your workflow prevents missing critical steps. Follow this exact sequence when calibrating a Rosemount smart transmitter. This method guarantees compliance with stringent industry standards while protecting plant operations.
Step 1: Loop Isolation and Communication. Never calibrate a live safety loop. You must bypass the Safety Instrumented Systems (SIS) and notify the control room. Connect your HART or Fieldbus communicator across the communication terminals. Establish a digital connection and verify the device tag matches your work order.
Step 2: As-Found Verification. You need a baseline before making any changes. Document initial readings at 0%, 50%, and 100% of the operating range. Compare the applied temperature against the transmitter's digital reading and analog output. If the deviations fall within acceptable limits, no trim is required. Document the pass and return the loop to service.
Step 3: Performing the Sensor Trim. If the sensor drifts out of tolerance, navigate to the Sensor Trim menu in your communicator.
First, apply the lower reference temperature using your dry-block calibrator. Allow the reading to stabilize fully. Execute the Lower Sensor Trim command. The microprocessor now maps this precise input as its new digital baseline.
Next, apply the upper reference temperature. Wait for thermal stabilization. Execute the Upper Sensor Trim command. You have now corrected the sensor's physical measurement slope.
Step 4: Executing the Output Trim (D/A Trim). Switch your focus to the analog signal. Connect a digital multimeter in series with the loop, or rely on a highly accurate control system readout. Use the communicator to force the transmitter output to exactly 4 mA. If your meter reads 4.02 mA, enter 4.02 into the communicator to calibrate the lower end of the D/A converter. Repeat this process by forcing a 20 mA signal and trimming the upper end. Your analog loop now perfectly matches the digital intelligence.
Step 5: As-Left Documentation. Finally, record all final values at the 0%, 50%, and 100% test points. Strict compliance frameworks, such as ISO 9001 and FDA 21 CFR Part 11, mandate comprehensive audit trails. Save the calibration report in your asset management system. Remove the bypasses and formally return the loop to the control room.
Even perfectly calibrated RTD sensors possess inherent physical inaccuracies. Manufacturing variances mean no two platinum probes share the exact same resistance curve. Traditionally, facilities bought expensive, specialty-grade sensors to achieve high precision. We offer a much smarter alternative: Transmitter-Sensor Matching.
Transmitter-sensor matching serves as a low-cost, high-ROI method to achieve premium accuracy. Instead of buying expensive probes, you use standard RTDs and mathematically eliminate their unique errors inside the transmitter. This strategy significantly lowers your Total Cost of Ownership. You get laboratory-grade precision using standard industrial hardware.
Every quality RTD comes with a calibration certificate detailing its specific Callendar-Van Dusen (CVD) constants. These constants—identified as A, B, C, and R0—mathematically describe the exact resistance-to-temperature curve of that specific physical probe. Rosemount transmitters feature specialized memory blocks to store these constants. Using your AMS Trex communicator, you simply input the A, B, C, and R0 values into the transmitter configuration menu. The microprocessor abandons the generic IEC standard curve. It now calculates temperature using the bespoke mathematical curve of your specific probe.
The performance improvements are dramatic and quantifiable. Implementing CVD constants typically reduces system-level error by up to 75%. We can observe this impact clearly in standard process loops.
Configuration Type | Typical Sensor Error | Transmitter Error | Total System Error |
|---|---|---|---|
Standard RTD (Unmatched) | ± 0.90 °C | ± 0.15 °C | ± 1.05 °C |
Matched RTD (CVD Constants Applied) | ± 0.06 °C (Residual) | ± 0.15 °C | ± 0.21 °C |
Note: Data assumes standard industrial operating conditions. The RSS method was used to calculate combined system error.
Most facilities rely on rigid, calendar-based maintenance schedules. They test every device once a year. This guesswork model wastes immense resources on stable loops while allowing problematic sensors to drift dangerously out of spec between intervals. You must transition to an evidence-based maintenance schedule.
To determine proper intervals, you must calculate your Total Probable Error (TPE). Industrial error does not stack linearly; it stacks statistically. We use the Root-Sum-Squared (RSS) model to determine realistic field accuracy. TPE comprises several critical variables:
Digital Accuracy: The baseline mathematical precision of the microprocessor.
D/A Accuracy: The minor variance introduced when converting the digital signal back to a 4–20 mA analog output.
Ambient Temperature Effects: Error introduced into the electronics housing due to seasonal heat or freezing conditions.
Sensor Accuracy: The physical tolerance limits of the probe itself (which we mitigate via CVD matching).
You square each of these error values, sum them up, and then calculate the square root of that total. This yields your true field TPE.
Once you know your TPE and your process requirements, you can establish a mathematical calibration schedule. The industry-standard equation is straightforward:
Calibration Frequency = (Required Performance - Total Probable Error) / Stability per month.
Required Performance is the maximum error your specific process can tolerate before quality degrades. Stability per month is the manufacturer’s published drift rate for the transmitter model.
Adopting this mathematical framework transforms how you manage maintenance. By calculating the actual frequency needed, you easily identify stable loops that only require checks every 36 or 48 months. This prevents over-maintenance. Conversely, the formula highlights bad actors in harsh environments that need quarterly attention. You scale your labor force efficiently, directing skilled technicians exactly where they provide the most value.
Summary of Execution: Proper Rosemount calibration demands an understanding of digital trimming versus basic reranging. You must match the right protocol tools, like the AMS Trex, to the task to modify internal microprocessor data accurately.
Business Impact: Rigorous calibration directly connects to operational uptime. By systematically eliminating drift and D/A conversion errors, you protect process safety and ensure strict regulatory compliance.
Next Steps: Engineering teams should immediately audit their current calibration SOPs. Ensure your technicians are fully trained on CVD constant entry for RTD loops. Finally, calculate formal TPE baselines for all critical temperature nodes to establish a data-driven maintenance frequency.
A: No. X-well technology uses non-intrusive surface temperature measurement rather than an inserted probe. It relies on a specialized algorithm that calculates internal fluid temperature based on ambient conditions and pipe surface readings. You must configure specific pipe materials and schedules in the communicator menu. Do not perform standard physical sensor trims on X-well units without referencing the specific surface-algorithm parameters.
A: The core trimming principles remain the same, but the communicator menu navigation differs. The premium 3144P features advanced diagnostics, dual-sensor capabilities, and hot-backup routing. Calibrating the 3144P often requires configuring these secondary backup sensors and testing the diagnostic alerts. The basic 248H has a simplified menu structure tailored for single-sensor, standard loop applications.
A: If your digital HART reading is perfectly stable but the analog control system drifts, the problem lies past the microprocessor. You are likely facing D/A converter degradation inside the transmitter housing. Alternatively, you may have increasing loop wire resistance or failing terminal connections. You must execute a dedicated Output Trim to recalibrate the 4-20mA output section.
