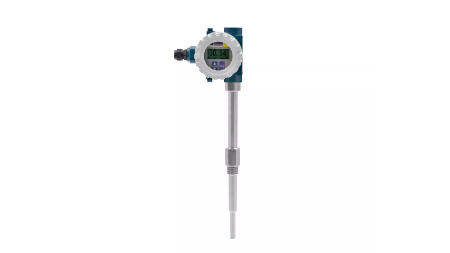

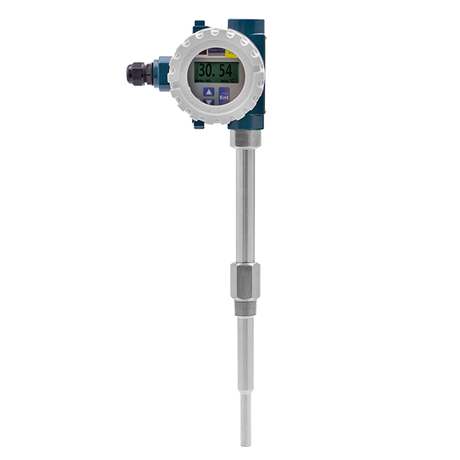

Temperature measurement drift presents severe risks in critical process environments like chemical processing, refining, and pharmaceutical manufacturing. Even a fraction of a degree in error can quickly compromise product quality and jeopardize strict regulatory compliance. Uncalibrated or poorly maintained RTD (Resistance Temperature Detector) transmitters introduce severe measurement uncertainty across your facility. Over time, neglected calibration causes accelerated sensor degradation, hidden inefficiencies, and drastically increases the likelihood of critical safety system failures. You need a highly reliable method to catch and correct these deviations early.
This guide provides plant managers and control engineers a standardized, compliant calibration procedure to ensure accurate readings. We also bridge the gap toward evaluating modern, lower-maintenance measurement solutions to optimize your operational budget. You will learn actionable physical testing methods, electrical simulation steps, and smart upgrade pathways.
Baseline Standard: A high-quality platinum RTD should display exactly 100.0 Ω at 0°C; deviations require precise Zero and Span adjustments on the transmitter.
Methodology Choice: Calibration can be performed via electrical simulation (decade box) or physical comparison (dry block with a PRT reference).
Error Mitigation: Physical calibration accuracy heavily depends on minimizing stem conduction and adhering to strict immersion depth formulas (e.g., 15x Diameter + Length).
TCO Optimization: Upgrading from legacy analog setups to smart automated systems (HART/Fieldbus) reduces labor hours and lifecycle calibration costs.
When professionals certify industrial instrumentation, they rely on exact terminology to avoid compliance disputes. Technicians document the device undergoing calibration as the Unit Under Test (UUT) or Device Under Test (DUT). You will see these acronyms on every valid compliance report. Understanding this vocabulary forms the foundation of any robust maintenance program.
Platinum RTDs operate on a highly linear and predictable relationship. Their internal resistance rises steadily as environmental heat increases. This predictability gives them a fixed resistance-to-temperature coefficient. Control systems use this property for exact 4-20mA signal scaling. Because the curve remains stable, engineers can scale analog outputs with high confidence. A standard PT100 sensor provides exactly 100.0 Ω at 0°C. Any variation from this baseline signals a need for adjustment.
Compliance relies entirely on your reference standards. E-E-A-T (Experience, Expertise, Authoritativeness, and Trustworthiness) principles in metrology demand strict traceability. Your reference equipment must be verifiable. Specifically, your Platinum Resistance Thermometer (PRT) must hold an active ISO 17025 certification. It must trace back to NIST or an equivalent national standards body. If your reference lacks this traceable chain, your calibration holds no regulatory value. Auditors will reject undocumented references immediately.
Identify the UUT/DUT clearly before beginning any procedure.
Verify the PT100 baseline: 100.0 Ω at 0°C.
Confirm your PRT holds a current ISO 17025 certification.
Maintain documented NIST traceability for all reference instruments.
You can calibrate your Temperature Transmitter using pure electrical simulation. This method ignores the physical probe. Instead, technicians use a decade box and a digital multimeter (VOM). They simulate the sensor input resistance directly. This allows them to adjust the 4-20mA analog output accurately. It is a fast procedure, often performed right on the plant floor.
Step 1: Determine Values. Use a standardized RTD resistance table. Find the Low Temp Ohms and High Temp Ohms corresponding to your target measurement range. Record these specific resistance values.
Step 2: Calculate Calibration Factor. Subtract the low resistance from the high resistance to find your span. Divide this resistance span by 16. We use 16 because it represents the 16 mA span operating between the 4mA and 20mA limits.
Step 3: Establish Reference Points. Calculate your target milliamp outputs for both states. You must know exactly what milliamp reading corresponds to the lowest and highest resistance states.
Step 4: Hardware Tuning. Connect your decade box. Input the simulated minimum resistance. Systematically adjust the Zero potentiometer on the transmitter. Turn it until the multimeter reads exactly 4.00 mA. Next, input the maximum resistance. Adjust the Span potentiometer until the meter reads exactly 20.00 mA. Repeat this loop until both endpoints lock in perfectly.
Calibration Factor Calculation Example
Parameter | Formula / Description | Example (0°C to 100°C PT100) |
|---|---|---|
Low Temp Ohms | Value at minimum range | 100.00 Ω (at 0°C) |
High Temp Ohms | Value at maximum range | 138.51 Ω (at 100°C) |
Resistance Span | High Ohms - Low Ohms | 38.51 Ω |
Calibration Factor | Span / 16 | 2.406 Ω per mA |
You must acknowledge specific risks regarding electrical simulation. The ohmmeter carries its own native accuracy error. This error becomes amplified at the extreme ends of the transmitter output range. The calibrated transmitter precision remains capped by the test equipment used. If your decade box lacks precision, your transmitter inherits those flaws. Simulation tests the electronics, but it completely ignores potential physical degradation of the actual sensor probe.
Physical comparison provides the most comprehensive test. You test the actual RTD probe alongside a certified reference PRT. Both instruments sit inside a uniform heat source, typically a dry well or dry block calibrator. This method verifies both the electronic transmitter and the physical sensor element. It exposes thermal degradation that electrical simulation cannot detect.
Thermal routing dictates efficiency during physical calibration. Always calibrate "bottom-up." Start at the lowest temperature point and progress to the highest. Dry blocks utilize powerful heating elements. They heat up significantly faster than they cool down. Reversing the order wastes massive amounts of labor time waiting for the block to chill. Working bottom-up keeps technicians moving swiftly.
Soak time represents another critical requirement. Temperature readings might look stable on the display, but the internal mass requires more time. Mandate a minimum 15-minute soak time after the dry block reaches the setpoint. This ensures complete thermal equilibrium between the reference PRT and the UUT. Without adequate soak time, the UUT reads an artificial gradient, causing false failure reports.
Insert the UUT and PRT close together within the dry block.
Set the dry block to the lowest required calibration point.
Wait for the display to stabilize, then start the 15-minute soak timer.
Record the UUT reading against the PRT reference.
Increase the temperature to the next point and repeat the process.
Errors creep in quickly during physical calibration. Even minor oversights ruin measurement accuracy. You must mitigate these errors systematically to ensure reliable data.
Immersion effects cause severe reading deviations. Heat travels up the probe shaft and escapes into the ambient air. To prevent this heat loss, follow the industry-standard depth formula. Your required immersion depth equals 15 times the probe diameter, plus the active sensor length. If you fail to insert the probe deep enough, the sensor never reaches the actual block temperature.
Well contact errors occur when the dry block insert holes do not match the probe size. A loose fit creates an insulating air barrier. Specify strict air gap tolerances. Aim for a 0.005 to 0.010-inch clearance for standard probes. This tiny gap maximizes thermal transfer. It also prevents the probe from binding or getting stuck as the metal expands under high heat.
Stem conduction and loading alter the thermal dynamics of the calibrator. Inserting multiple thick probes simultaneously drains heat from the block. The block acts as a localized heat sink. This alters the radial uniformity of the heating zone. If you calibrate multiple thick probes at once, you must apply secondary mathematical compensation. Always consult the calibrator manual to verify maximum thermal load limits.
Compliance reporting demands rigid mathematical standards. Recommend using the RSS (Root Sum Squared) framework to calculate overall uncertainty. Alternatively, use the GUM (Guide to the Expression of Uncertainty in Measurement) framework. These calculations prove to auditors you considered equipment tolerance, ambient conditions, and human error.
Error Source | Mechanism of Failure | Mitigation Strategy |
|---|---|---|
Immersion Effects | Probe inserted too shallowly. | Use formula: (15 x Probe Diameter) + Sensor Length. |
Well Contact | Excessive air gap acts as insulation. | Maintain a strict 0.005 to 0.010-inch clearance. |
Stem Conduction | Thick probes wick heat into the room. | Limit probe quantity; use custom-drilled inserts. |
Soak Time Neglect | Taking readings before thermal equilibrium. | Enforce a strict 15-minute wait after reaching setpoint. |
Manual calibration consumes excessive labor hours. Analog localized adjustments remain highly vulnerable to technician error. Every hour a technician spends tweaking potentiometers reduces overall plant productivity. Furthermore, manual components drift out of tolerance faster, forcing shorter calibration intervals.
The industry rapidly shifts toward digital protocols. Solutions utilizing HART, Foundation Fieldbus, and WirelessHART transform maintenance workflows. These protocols allow for simultaneous, automated group calibration. Technicians use advanced field communicators to ping multiple devices at once. The communicator downloads the configuration, runs diagnostic checks, and logs the calibration automatically. This eliminates manual data entry errors entirely.
Selecting a reputable Temperature Transmitter manufacturer directly impacts your Total Cost of Ownership (TCO). You must evaluate vendors rigorously. Top-tier manufacturers provide transmitters featuring enhanced internal diagnostics. These smart devices utilize tighter tolerance classes. They experience significantly lower long-term drift. Less drift directly extends your required intervals between calibrations. You spend less money on labor over the device lifecycle.
Define clear success criteria for your upgrades. Look for SIL-certified fail-safe mechanisms. High-quality RTD setups feature "fail open" characteristics. If the sensor breaks, the system drives the output to a safe, recognizable error state. Additionally, mandate native integration with your plant asset management software. Seamless integration allows predictive maintenance algorithms to flag drifting sensors before they fail.
Summary: Reliable RTD transmitter calibration requires strict adherence to mathematical tolerances, proper thermal management, and traceable reference standards. Whether using electrical simulation or dry block comparison, precision remains non-negotiable.
Next-Step Action: Advise your engineering teams to audit current calibration intervals immediately. Review your documentation for ISO 17025 traceability.
Next-Step Action: If manual calibration costs escalate, shortlist tier-1 manufacturers. Evaluate automated, high-stability transmitter upgrades to lower your long-term Total Cost of Ownership.
A: Frequencies depend on application severity and industry regulations. Highly regulated sectors like pharmaceuticals or food and beverage often require bi-annual or annual calibration. However, RTDs natively experience less drift than thermocouples. This stability allows extended intervals in standard industrial environments. Always check historical drift data to optimize scheduling.
A: No. Probes failing to meet the minimum immersion depth formula suffer severe stem conduction errors. They lose heat to the ambient air. Instead, use a micro-bath calibrator. You can also commission custom-drilled inserts to properly surround the short probe and ensure adequate thermal contact.
A: Never. Their tapered tips cause poor thermal contact. This leads to wildly inaccurate reference readings. Furthermore, the glass poses a severe safety hazard. If the glass shatters inside the block, you risk severe equipment damage and toxic mercury exposure. Always stick to certified PRTs.
A: RTDs generally "fail open." This creates an open circuit. The transmitter then drives the analog output to a pre-defined safety scale, typically above 20mA or below 4mA. This predictable failure mode alerts operators immediately. Because of this, engineers prefer RTDs in SIL (Safety Integrity Level) rated shutdown systems.
