What Is Temperature Transmitter

Routing raw millivolt or resistance signals from RTDs and thermocouples over long distances creates a critical failure point in process control. Factory environments routinely corrupt these unamplified signals long before they reach the main control panel. You need a highly reliable bridge to protect your measurement data integrity. A Temperature Transmitter serves as this essential bridge. It converts weak, easily distorted sensor readings into robust, standardized outputs, typically using a 4-20 mA loop or modern digital protocols. By doing so, it locks in accuracy directly at the measurement source.

Choosing the right transmitter drastically reduces your total cost of ownership (TCO). You can completely eliminate expensive compensation cables, prevent costly false alarms, and ensure strict regulatory compliance across your facility. In this guide, we will explore the core physics of signal degradation, evaluate analog versus smart digital technologies, and outline a framework for selecting the best hardware for your industrial application.

Key Takeaways

• Signal Integrity: Transmitters eliminate the "antenna effect" (EMI/RFI noise) that degrades raw sensor data over long cable runs.

• Cost Reduction: Converting signals at the measurement point allows the use of standard twisted-pair copper wire instead of expensive thermocouple extension cables.

• Advanced Reliability: Modern smart transmitters feature sensor redundancy (Hot Backup), drift alerts, and galvanic isolation to prevent unplanned downtime.

• Scalable Integration: Output options range from traditional 2-wire 4-20 mA to advanced digital protocols like HART, IO-Link, and Ethernet-APL.

The Core Problem: Why Direct Temperature Sensors Fall Short

Directly wiring sensors to control systems often seems like a cost-effective strategy. However, the underlying physics of temperature measurement reveals major flaws in this approach. Thermocouples generate signals based on the Seebeck effect. When you join two dissimilar metals and apply heat, they produce a tiny electrical current. This current exists purely in the micro-volt range. Resistance Temperature Detectors (RTDs) operate differently. They rely on highly precise changes in electrical resistance. For example, a standard Pt100 RTD measures exactly 100 Ohms at 0°C. Neither of these native signal types possesses the physical strength to survive a long journey across a factory floor.

Long cable runs introduce severe resistance penalties. A mere 1 to 2 Ohm change in cable resistance can cause a 5 to 6°C error in an RTD reading. You cannot achieve tight process control with such massive inherent variance. Beyond simple resistance, industrial environments present intense electrical hazards. Factories contain large motors, variable frequency drives (VFDs), heavy transformers, and mechanical relays. These devices constantly emit electromagnetic interference (EMI) and radio frequency interference (RFI).

When you run unshielded sensor wires across long distances, they act exactly like giant antennas. They absorb ambient EMI and RFI noise. This phenomenon, known as the "antenna effect," introduces severe transient voltage spikes into your sensitive control systems. The resulting data becomes erratic and practically unusable.

A transmitter provides the definitive solution to these physical limitations. By installing it right at the measurement point, it filters out high-frequency noise before data transmission begins. It also provides vital galvanic isolation. Galvanic isolation physically separates the input circuit from the output circuit. This feature proves crucial for high-temperature applications where sensor insulation degrades and leaks stray voltage into the loop. Finally, the transmitter scales the fragile reading into a robust, noise-immune 4-20 mA output. Current loops resist voltage drops effortlessly, ensuring your PLC receives the exact same value the sensor initially recorded.

Analog vs. Smart Digital Transmitters: Evaluating the Tech Stack

Process engineers must choose between legacy analog devices and modern digital architectures. While both serve the same fundamental purpose, their internal capabilities differ dramatically. Understanding this technology stack helps you match the right instrument to your operational demands.

Legacy analog transmitters operate using basic fixed ranges. They remain relatively low-cost because they lack internal microprocessors and memory chips. However, this simplicity brings major drawbacks. Analog units lack diagnostic capabilities. When sensor wires begin to fail, an analog transmitter cannot warn you. Furthermore, technicians must perform Zero and Span calibration using manual potentiometers. They must physically turn tiny screws on the device while applying simulated loads. This outdated process consumes valuable maintenance hours and introduces human error.

Smart digital transmitters now dominate as the industry standard. They utilize powerful internal microprocessors to achieve exceptionally high accuracy. More importantly, they support Callendar-Van Dusen (CVD) sensor-transmitter matching. Every RTD possesses a unique, slightly non-linear error curve. By inputting specific CVD mathematical coefficients into a smart transmitter, the device perfectly flattens this error curve. The transmitter and sensor become perfectly matched pairs, delivering laboratory-grade precision in harsh field conditions.

The digital communication layer continues to evolve rapidly. Facilities typically transition through several integration standards depending on their infrastructure:

• HART Protocol: This standard layers a digital communication signal directly over traditional 4-20 mA analog wiring. It allows facilities to access basic diagnostic data without replacing existing copper wire.

• Digital Bus Systems: Protocols like PROFIBUS and PROFINET replace the analog loop entirely. They transmit multiple process variables and deep diagnostic data over high-speed digital networks.

• Modern Parameterization: The latest units feature Bluetooth and IO-Link capabilities. Maintenance teams can configure ranges, monitor health, and calibrate devices securely from smartphones or tablets.

Technology Comparison Chart

Mounting Configurations and Wiring Implementation

Implementing temperature measurement systems requires practical wiring decisions. The industry relies heavily on two primary wiring topologies: 2-wire and 4-wire systems. You must clarify implementation realities before purchasing hardware.

The 2-wire loop-powered system reigns supreme in industrial automation. It delivers power to the transmitter and carries the 4-20 mA signal back to the controller on the exact same twisted copper pair. This design maximizes efficiency. It drastically reduces wiring costs, minimizes conduit space, and simplifies troubleshooting. Conversely, 4-wire systems require isolated power. Two wires supply dedicated AC or DC power to the transmitter, while a separate pair transmits the signal. You generally use 4-wire systems only when integrating specific high-draw digital protocols or large local display screens.

Beyond wiring, housing and installation styles dictate how well the device survives its environment. Engineers categorize form factors into three primary styles:

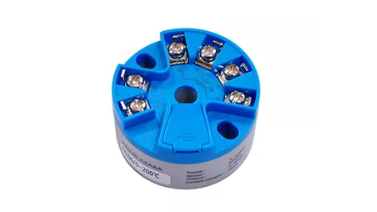

• Head Mount (DIN Form B): These puck-shaped units fit directly inside the sensor connection head. They represent the most common installation style. They sit right at the measurement point, maximizing signal integrity. Head mount units work perfectly for space-constrained installations where local displays remain unnecessary.

• DIN Rail Mount: Built for high-density stacking, these slim modules snap directly onto standard 35mm DIN rails. They live inside protected control cabinets rather than out in the field. You typically use them when field temperatures exceed the electronics' thermal limits, requiring you to mount the processing unit safely inside a climate-controlled room.

• Field Mount: These rugged transmitters feature heavy-duty metal enclosures. Manufacturers build them for harsh, outdoor, or frequent washdown environments. They utilize dual-compartment designs. One compartment houses the electrical terminal blocks, while a sealed inner compartment protects the sensitive microprocessors. If moisture penetrates the wiring compartment during a storm or high-pressure cleaning, the electronics remain perfectly dry.

Advanced Diagnostics: Building a Case for High-End Models

Enterprise facilities cannot afford unplanned downtime. A simple broken sensor wire can halt a multi-million-dollar chemical batch. Investing in high-end models unlocks advanced diagnostic capabilities that transition your maintenance strategy from reactive to predictive.

1. Sensor Redundancy (Hot Backup): Processors can wire two separate sensors into a single high-end transmitter. The device continually monitors the primary sensor. If the primary sensor suddenly fails due to a broken wire or extreme thermal shock, the transmitter seamlessly switches to the secondary sensor. It triggers a maintenance alarm in the control room but prevents a costly process shutdown.

2. Degradation & Drift Monitoring: Smart transmitters constantly evaluate the health of the measurement loop. They monitor loop resistance to detect thinning or corroding thermocouples long before they suffer total failure. Furthermore, if you employ a dual-sensor setup, the transmitter tracks both inputs simultaneously. If the two sensors drift apart beyond established mathematical tolerances, it generates a drift alert. This ensures your data remains completely trustworthy.

3. EMF Compensation & Filtering: Factory environments subject equipment to immense physical stress. High-end models automatically deploy transient voltage filters. These filters recognize and discard sudden voltage spikes caused by mechanical vibration or nearby electrical switching. Additionally, they provide EMF compensation algorithms. When terminal junctions corrode, they inadvertently create tiny secondary thermocouples that induce false voltages. Advanced transmitters identify and eliminate these induced errors automatically.

These features justify the premium price tag. They act as an insurance policy against catastrophic measurement failures, securing process continuity in high-stakes manufacturing environments.

TCO and the Temperature Transmitter Manufacturer Selection Framework

Procurement teams often focus solely on the initial purchase price of measurement hardware. However, a proper economic analysis must frame the cost argument around Total Cost of Ownership (TCO). The upfront cost of a premium transmitter is rapidly offset by immediate installation savings.

When you run native thermocouple signals back to a control panel, you must use specialized thermocouple extension wire. This wire costs significantly more per foot than standard industrial cable. By placing a transmitter at the measurement point, you convert the signal immediately. You can then run standard shielded copper wire for the remainder of the distance. Over runs of several hundred feet, the savings generated by using standard wire completely cover the cost of the transmitter.

Navigating the market requires a structured decision tree. Use the following shortlisting criteria to identify the optimal hardware for your specific use case:

The Selection Decision Tree

Carefully evaluating a Temperature Transmitter manufacturer ensures you secure reliable hardware backed by solid engineering support. Look for vendors who understand your specific industry challenges, whether that involves extreme sanitary washdowns in dairy processing or explosive gas atmospheres in petroleum refining. Aligning your diagnostic needs with environmental constraints guarantees optimal performance and longevity.

Conclusion

A temperature transmitter is not merely a passive passthrough device. It acts as a critical, active component essential for maintaining signal fidelity and process safety. By filtering extreme electrical noise, providing galvanic isolation, and standardizing outputs to robust 4-20 mA or digital protocols, it secures your measurement data against harsh factory environments.

Moving forward, we recommend taking immediate action to audit your current instrumentation loops. Inspect your direct-wired sensor setups to identify any noise-induced variances or erratic control behaviors. Calculate the potential cost savings of replacing long, expensive thermocouple extension cables with standard shielded copper wire paired with modern transmitters. Finally, compile your environmental and diagnostic requirements, and request demonstration units from a vetted manufacturer to test these capabilities within your actual process environment.

FAQ

Q: What is the difference between a temperature sensor and a temperature transmitter?

A: A temperature sensor physically measures the heat and produces a raw, weak signal like a micro-voltage or resistance change. The transmitter takes that raw measurement, translates it, cleans out electrical noise, and amplifies it into a robust standard signal (like 4-20 mA) for the control system.

Q: Why use 4-20 mA instead of 0-10 V for temperature transmission?

A: A 4-20 mA current loop remains completely immune to voltage drops over long distances. It also offers a built-in "live zero" at 4 mA. If a wire breaks, the signal drops to 0 mA, allowing the control system to instantly detect the failure. Voltage signals cannot reliably distinguish between a 0 V reading and a broken wire.

Q: Can one temperature transmitter work with both RTDs and Thermocouples?

A: Yes. Most modern, universal digital transmitters feature highly programmable inputs. You can easily configure them via software or Bluetooth to accept multiple sensor types, various wiring configurations, and custom temperature measurement ranges.

Q: How often does a temperature transmitter need calibration?

A: Calibration frequency depends heavily on application criticality and regulatory requirements. In standard industrial environments, you should check them for calibration drift every 1 to 3 years. Critical pharmaceutical or aerospace applications often require annual verification using certified signal reference calibrators.
