Selecting the wrong temperature sensor compromises process control. It accelerates component degradation and skews your baseline data. Plant managers often discover these errors only after experiencing significant downtime or batch rejections.
An effective temperature measurement loop requires matching the right sensing element to your environment. You must choose between an RTD or a Thermocouple. Then, you pair this element with an industrial-grade Temperature Transmitter. This vital combination ensures signal integrity across the entire plant floor.
We designed this article to provide a technical and commercial framework for instrumentation professionals. You will learn how to evaluate, specify, and integrate RTDs (Resistance Temperature Detectors) and TCs (Thermocouples). We will break down your choices based on accuracy demands, environmental severity, and Total Cost of Ownership (TCO).
RTDs deliver superior accuracy, linearity, and long-term stability, making them the standard for precision processes below 850°C.
Thermocouples excel in extreme temperatures (up to 2500°C), offer faster response times, and withstand high-vibration environments.
Upfront sensor costs are misleading; long extension wire runs can make Thermocouples more expensive to install than RTDs.
Both sensors require a high-quality Temperature Transmitter to convert raw, low-level signals into stable, noise-immune outputs (like 4-20mA or HART) for DCS/PLC integration.
Understanding how a sensor detects heat helps you avoid fundamental application errors. The core difference lies in whether the device actively generates a signal or passively alters an electrical circuit.
An RTD operates on predictable changes in electrical resistance. As the surrounding temperature fluctuates, the metal element resists electrical flow differently. Because it is a passive device, an RTD requires an external excitation current from a connected transmitter or control system to measure this resistance shift.
Manufacturers typically build RTDs using two main constructions. Thin-film RTDs feature a thin layer of metal deposited onto a ceramic substrate. They are fast, cost-effective, and dominate modern industrial applications. Wire-wound RTDs wrap a fine metal wire around a core. They offer the highest accuracy and handle physical strain better over time.
Platinum is the undisputed standard material for RTDs. Engineers favor Pt100 and Pt1000 elements for their exceptional linearity across wide temperature spans. You might also encounter Copper or Nickel RTDs. They serve niche applications requiring specific cost profiles or lower temperature bands.
Thermocouples operate via the Seebeck effect. When you join two dissimilar metals at one end, they generate a micro-voltage proportional to the temperature difference between the hot and cold junctions. This makes the thermocouple an active device. It is self-powered and requires no external excitation current.
Engineers categorize thermocouples by their specific metal pairings. Type K pairs Chromel and Alumel. It serves as the general industrial workhorse due to its wide temperature range and reliability. Type J pairs Iron and Constantan. It remains popular for low-temperature applications and reducing atmospheres. Each pairing produces a unique, non-linear voltage curve.
You cannot specify a sensor based on a single parameter. Industrial loops require a balanced evaluation of operating limits, precision over time, and response speed.
Parameter | RTD (Resistance Temperature Detector) | Thermocouple (TC) |
|---|---|---|
Temperature Range | -200°C to 850°C (Standard industrial limit) | -200°C to 2500°C (Depending on type) |
Accuracy | High (Often ±0.1°C to ±0.15°C) | Lower (Often ±1.0°C to ±2.0°C) |
Response Time | Slower (1 to 10 seconds, depending on sheath) | Fast (Ground junctions react in milliseconds) |
Linearity | Excellent (Highly predictable resistance curve) | Poor (Requires complex polynomial compensation) |
Sensitivity | Moderate (Best handled by modern electronics) | Low (Micro-volt changes per degree) |
Establish your industrial baseline first. RTDs typically cap at 850°C. Pushing platinum elements beyond this point accelerates substrate breakdown. Thermocouples routinely measure up to 2500°C. They easily handle blast furnaces and incineration stacks where RTDs would melt.
Next, consider precision and drift. We classify RTDs by rigorous tolerance standards. Class A provides tighter accuracy than Class B. Both maintain exceptional stability over years of continuous operation. Thermocouples carry standard limits of error. They suffer from metallurgical drift over time. Oxidation and chemical exposure alter the metal composition. This causes the generated voltage to slowly deviate from its original calibration curve.
Finally, contrast their response dynamics. Standard Pt100 RTDs experience a slight thermal lag due to their protective sheathing and internal mass. A grounded Thermocouple bonds directly to the probe tip. It transfers heat immediately. This allows it to react up to three times faster to sudden thermal spikes. You need this speed for critical safety interlocks.
Procurement teams often look at the raw component price and stop there. Base RTD elements do cost two to three times more than standard thermocouples. However, the supporting wiring infrastructure fundamentally alters the final math.
Thermocouples fall into the extension wire trap. You cannot wire a thermocouple back to a control panel using standard copper cable. You must use expensive, specialized thermocouple extension wire that perfectly matches the sensor's specific metal type. If you use the wrong wire, you create accidental junctions. This destroys your measurement accuracy entirely. Over long cable runs across a sprawling facility, these specialized wires make thermocouple loops significantly more expensive.
RTDs use standard instrumentation copper wire. Copper is cheap, readily available, and easy to run. The true architectural decision for RTDs lies in the wiring configuration:
2-Wire Configurations: These offer the lowest cost but the lowest accuracy. The control system cannot separate the lead wire resistance from the sensor resistance. You should only use them for short runs where precision does not matter.
3-Wire Configurations: This is the industrial standard. It adds a third wire to calculate and subtract the lead-wire resistance. It perfectly balances installation cost and lead-wire compensation.
4-Wire Configurations: These provide laboratory-grade precision. They completely isolate the excitation current from the measurement voltage. They cost the most to wire but eliminate all lead resistance errors.
Field engineers frequently encounter unmarked probes during plant retrofits or emergency maintenance. Knowing how to identify these sensors prevents costly integration errors.
Start with a physical wire inspection. Open the connection head. Thermocouples typically utilize two solid, stiff wires. You can often identify them by standard color codes. For instance, Type K uses red and yellow wires in the United States. RTDs feel completely different. They utilize three to four multi-stranded, flexible wires. You will commonly see two red wires and one white wire inside an RTD housing.
If visual inspection leaves you unsure, perform a multimeter resistance test. Disconnect the sensor from its loop power. Set your multimeter to measure ohms.
Probe the thermocouple leads at room temperature. The meter will yield near-zero ohms. Because the junction simply touches two metals together, it acts like a dead short circuit to your multimeter. Probe a standard Pt100 RTD at room temperature. Your meter will yield approximately 108 to 110 ohms. This perfectly matches the platinum resistance curve for an ambient environment.
Sensor elements generate fragile signals. Raw millivolt signals from thermocouples and weak resistance shifts from RTDs are highly susceptible to Electromagnetic Interference (EMI). Heavy machinery, variable frequency drives, and high-voltage cables easily corrupt these signals over distance.

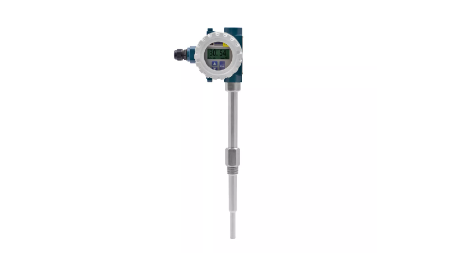

Routing your sensor directly into a head-mount or DIN-rail transmitter solves this problem. The transmitter digitizes the raw input at the source. It then scales the signal to an industry-standard 4-20mA or a digital protocol like HART. A strong 4-20mA loop resists EMI and travels thousands of feet without signal degradation.
You must specify advanced evaluation criteria when sourcing from a reliable Temperature Transmitter manufacturer. Look for features that mitigate inherent sensor weaknesses. Insist on universal inputs. This allows one transmitter model to accept both RTD and TC configurations. It simplifies your plant floor inventory.
Seek out sensor redundancy features. Premium transmitters monitor dual elements. They initiate an automatic switchover if one primary element fails, keeping your process running smoothly. Ensure the device includes built-in drift detection and robust cold-junction compensation. This compensation is absolutely critical for maintaining thermocouple accuracy as ambient control room temperatures fluctuate.
Choosing between an RTD and a thermocouple requires matching the sensor's physical profile to your process reality. Use this framework to finalize your engineering specification.
Specify an RTD when:
Process temperatures remain strictly below 850°C.
Tight compliance and high repeatability are non-negotiable. Pharmaceutical manufacturing and food & beverage operations demand RTD precision.
Minimizing calibration frequency is a priority. RTDs drift far less, allowing you to extend maintenance intervals and reduce downtime.
You plan to run long lengths of copper wire back to the control system.
Specify a Thermocouple when:
Operating in extreme heat environments. Furnaces, kilns, and exhaust manifolds quickly destroy RTD elements.
Tracking rapid temperature transients requires split-second response times. Grounded thermocouples catch thermal spikes instantly.
The installation environment involves severe mechanical vibration. Heavy vibration fractures an RTD's delicate ceramic substrate, while rugged thermocouples survive intact.
The RTD vs. TC debate is never about which technology is inherently superior. It is entirely about which sensor aligns with your specific thermal profiles, accuracy mandates, and wiring topologies. RTDs dominate clean, stable, high-precision applications. Thermocouples own the harshest, hottest, and most dynamic environments.
Remember that a sensor is only as reliable as the signal it outputs to your control system. An unprotected millivolt signal will fail in a noisy industrial plant. You must pair your chosen element with a modern, intelligent transmitter to digitize, isolate, and scale the measurement.
Review your current measurement loops today. We strongly prompt you to consult engineering support or download a comprehensive transmitter selection guide to finalize your loop architecture and ensure maximum process stability.
A: No. You must verify transmitter compatibility first. Most modern smart transmitters accept both, but you must reconfigure the device software. You also need to update the DCS scaling parameters and change the field wiring from specialized extension wire to standard copper.
A: Both are platinum RTDs. A PT100 measures 100 ohms at 0°C, while a PT1000 measures 1000 ohms. The PT1000 offers a much higher signal-to-noise ratio. It is better suited for 2-wire configurations and battery-powered applications, though it is generally more expensive to procure.
A: No, this is a common misconception. Platinum-based RTDs offer superior long-term stability. They require significantly less frequent calibration than thermocouples. Thermocouples are highly prone to metallurgical drift from oxidation and heat cycling, demanding more aggressive maintenance schedules.
