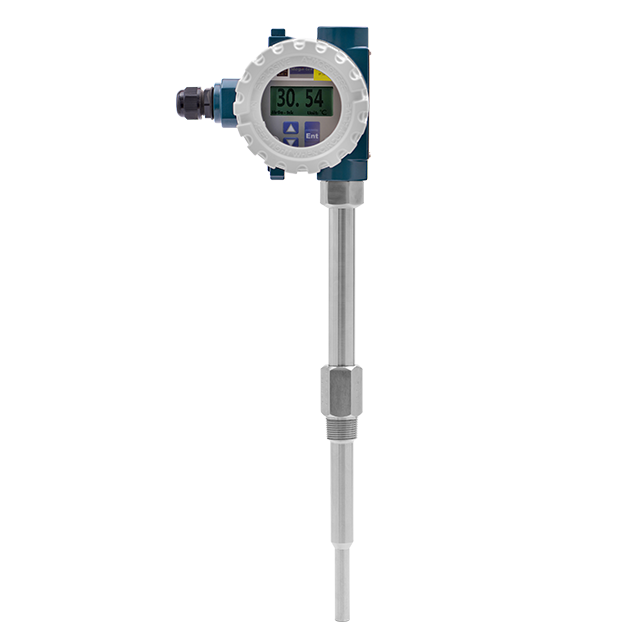

Incorrect transmitter selection leads to ground loops, signal degradation, and compromised control logic in industrial automation. Modern PLCs and DCS require highly stable, linear inputs to function properly. Moving from direct sensor wiring to digital transmitters solves voltage drop and noise issues immediately. However, this shift introduces new selection variables for control engineers. You must balance protocol compatibility, physical installation constraints, and environmental robustness.
Every industrial process demands reliable temperature data. When you integrate sensors directly into a complex control system, errors multiply. A well-specified transmitter mitigates these errors before they reach the controller. This guide outlines a decision framework for evaluating transmitter protocols, form factors, and isolation specs. Following these principles ensures seamless integration and strict regulatory compliance.
You will learn how to match outputs to your architecture, choose the correct physical housing, and avoid common integration pitfalls. We provide actionable insights to protect your expensive I/O cards and optimize your process loops.
Match the output protocol (analog, HART, Fieldbus) to the specific diagnostic requirements of your PLC/DCS architecture.
Select form factors based on installation environment: panel density favors DIN rail, while field wiring distances favor head-mounted units.
Prioritize galvanic isolation to protect expensive I/O cards from voltage spikes and ground loops.
Verify hazardous area certifications (ATEX, IECEx) and SIL ratings before finalizing procurement for critical process loops.
Control systems dictate your instrumentation choices. You must align your transmitter selection with the realities of your overarching architecture.
A Distributed Control System (DCS) handles thousands of interconnected I/O points across a sprawling facility. Plant managers evaluate I/O card costs carefully. High channel density becomes a priority. DCS platforms generally update slower but demand rich diagnostic data. Conversely, a Programmable Logic Controller (PLC) manages specific machine loops. PLCs require incredibly fast update rates. You must match the transmitter response time to the controller scan rate. Mismatched speeds cause erratic loop behavior. Engineers must weigh the per-channel cost against the required processing speed.
Directly wiring a sensor to a PLC creates significant vulnerabilities. RTDs rely on tiny resistance changes. Thermocouples generate weak millivolt signals. Long cable runs expose these fragile signals to severe electromagnetic interference (EMI). Radio frequency interference (RFI) also degrades the raw signal. Industrial environments contain massive motors and variable frequency drives. These devices generate severe electrical noise. Bypassing a transmitter exposes your logic controller to this noise. Signal degradation inevitably leads to poor process control.
Safe logic execution relies on predictable failure states. NAMUR NE43 compliance is an essential standard here. It standardizes how a transmitter signals a sensor failure. The normal analog range operates between 3.8 and 20.5 mA. If a sensor breaks, the transmitter forces the current outside this band. An upscale failure drives the signal above 21.0 mA. A downscale failure drops it below 3.6 mA. Your PLC detects this out-of-bounds current instantly. The controller then safely shuts down the process. Without this compliance, a broken sensor might mimic normal operating conditions.
Choosing the correct communication protocol determines how well your instrumentation talks to your control system.
The standard analog current loop remains the undisputed baseline. It offers robust, long-distance signal transmission. Current signals resist electrical noise far better than voltage signals. A traditional 4–20 mA temperature transmitter works perfectly for standard PLC integration. It is highly reliable when you only need basic process variables. Maintenance technicians understand current loops intuitively. Troubleshooting requires only a basic multimeter. It represents a low-risk, highly effective solution for simple loops.
HART communication adds immense value to traditional analog loops. It superimposes a digital signal over the standard 4-20mA wiring. This overlay provides remote diagnostics and calibration data. You can read secondary variables without running new cables. DCS environments rely heavily on HART for asset management. It allows engineers to reconfigure devices from the control room. This capability saves countless trips to hazardous field locations. It bridges the gap between simple analog and full digital communication.
Modern networked topologies utilize protocols like Profibus PA, Foundation Fieldbus, and IO-Link. These fully digital buses offer massive data density. They transmit process variables, status flags, and device health simultaneously.
Profibus PA: Excellent for process automation requiring intrinsic safety.
Foundation Fieldbus: Enables control-in-the-field architecture, reducing DCS load.
IO-Link: Perfect for factory automation and rapid sensor replacement.
Evaluate these options carefully before shifting away from analog. Digital buses introduce significant integration complexity. They require specialized configuration files and trained personnel. While digital networks offer immense power, they carry higher initial hardware costs compared to a standard electronic temperature transmitter. Balance the need for data against the reality of your maintenance capabilities.
The physical environment dictates the mechanical housing. You must match the form factor to the installation realities.
Table 1: Transmitter Form Factor Comparison
Form Factor | Primary Location | Key Benefit | Ideal Application |
|---|---|---|---|
Head-Mounted (Form B) | Inside sensor connection head | Immediate signal conversion | Long field cable runs |
DIN Rail Mounted | Control cabinets / Remote I/O | High channel density | High vibration at measurement point |
Field installations usually demand compact solutions. A head-mounted temperature transmitter installs directly inside the sensor connection head. This design keeps the raw sensor wire incredibly short. It converts the weak millivolt or resistance signal into a robust analog loop immediately. This immediate conversion minimizes EMI over long cable runs back to the DCS. Form B is the global standard for these puck-style devices. They fit seamlessly into standard industrial thermowell enclosures.
Sometimes, field conditions prohibit electronics at the measurement point. Extreme heat or severe vibration will destroy integrated microprocessors quickly. In these scenarios, a DIN rail temperature transmitter provides the perfect solution. You mount these units inside protected control cabinets. They are ideal for high-density installations where space is premium. Cabinet mounting provides easy access for maintenance technicians. You run the raw sensor wire to the panel, and the transmitter handles the conversion safely inside the cabinet.
Specifications directly impact process yield. High-performance transmitters guarantee tight control and protect downstream hardware.
A universal transmitter must support various sensor types. Plant standards usually dictate specific RTDs (Pt100 or Pt1000). They also utilize different Thermocouples (Types J, K, T, E). Ensure your chosen hardware accepts these inputs natively. Thermocouples present a unique challenge. They measure a temperature difference between two points. Accurate internal cold junction compensation (CJC) is mandatory. The transmitter must measure its own terminal temperature accurately. Flawed CJC logic ruins thermocouple accuracy completely.
Sensors do not behave linearly. Their output curves change depending on the temperature range. A digital temperature transmitter uses an internal microprocessor to correct these curves. It references built-in lookup tables. This internal correction sends a perfectly linear signal to the PLC. Linearization at the field level saves immense processing power on the control system side. The PLC avoids running complex polynomial equations. It simply scales the incoming analog loop directly.
Never underestimate the importance of galvanic isolation. This is a non-negotiable metric for industrial environments. Industrial plants experience differing ground potentials. Connecting a grounded field sensor to a grounded PLC chassis creates a ground loop. Unwanted current flows through the signal wire. This current causes massive measurement errors and destroys I/O cards. Optical or galvanic isolation prevents this completely. Transmitters typically offer 1.5 kV to 2 kV of isolation. This physical separation blocks voltage spikes and keeps your controller safe.
Process industries often handle explosive gases or combustible dust. Regulatory compliance ensures plant safety and legal operation.
Hazardous areas demand specific protection methods. We classify these areas into Zones 0, 1, and 2 based on risk frequency. Intrinsically Safe (IS) designs limit the electrical energy. Even under fault conditions, an IS transmitter cannot generate a spark hot enough to ignite a gas. Explosion Proof (Ex d) enclosures take a different approach. They contain the explosion internally. The heavy metal housing prevents flames from escaping into the broader atmosphere. You must select the right protection method for your classified zone.
Safety Instrumented Systems (SIS) require specialized hardware. Normal process controllers manage standard operations. An SIS acts as the last line of defense. Instruments used here require specific Safety Integrity Level (SIL) ratings. You must evaluate SIL 2 or SIL 3 certified transmitters for these critical process loops. These devices undergo rigorous failure mode analysis. They guarantee a highly predictable response during an emergency shutdown scenario.
Heavy industrial plants are hostile environments. Moisture, dust, and corrosive gases attack electronic boards relentlessly. Assess the Ingress Protection (IP) rating carefully. IP67 or IP68 ratings ensure survival against temporary or continuous water submersion. Standard boards fail quickly in chemical plants. Conformal coating adds a thin polymeric film over the printed circuit board. This chemical barrier assesses durability against corrosive gases. It prevents premature failure in extreme ambient conditions.
Moving from a specification sheet to actual procurement requires careful risk management. Integration hurdles often surprise unprepared engineering teams.
Firmware compatibility remains a major stumbling block for DCS integration. Modern transmitters use Device Type Manager (DTM) or Electronic Device Description (EDD) files. These files tell the DCS how to interpret the device data. Older DCS asset management systems struggle with new firmware. Outdated DTM files cause communication failures. You might plug in a new device and lose all diagnostic visibility. Always verify firmware compatibility with your specific DCS software version before ordering hardware.
Compiling clear specifications prevents purchasing errors. Use a structured approach before contacting instrumentation vendors. Follow this simple framework to build your request:
Define the exact sensor type and measurement range.
Select the required output protocol based on control system needs.
Determine the physical form factor based on installation location.
Identify all required hazardous area and SIL approvals.
Verify the necessary IP ratings and environmental protections.
Completing this checklist streamlines the procurement process. It ensures vendors quote the exact hardware you need.
Selecting the right instrumentation demands a strategic approach. You must balance physical installation constraints against signal integrity requirements. Control system compatibility drives the ultimate protocol decision. Whether managing a sprawling DCS or an isolated PLC loop, the principles remain the same.
We strongly recommend prioritizing galvanic isolation and digital diagnostics. These features protect downstream hardware and future-proof your control loops against evolving automation requirements. High-quality isolation prevents catastrophic I/O failures.
Take action today to optimize your measurements. Download a specification worksheet to standardize your plant requirements. Contact technical sales teams for a comprehensive loop evaluation. Review manufacturer product catalogs to find the precise instrument for your application.
A: Yes. Most older PLC analog input cards accept standard 4-20mA signals seamlessly. You must verify loop power requirements. Ensure the PLC provides 24V DC to power a 2-wire transmitter. Also, check the input load resistance. The total loop resistance must not exceed the transmitter’s driving capacity.
A: A head-mounted transmitter converts the weak RTD resistance into a robust 4-20mA signal immediately at the sensor. Direct wiring runs the fragile resistance signal long distances. Direct wiring suffers severe signal degradation and noise interference. The transmitter provides high noise immunity and reduces expensive specialized wire costs.
A: It depends on the wiring configuration. A 2-wire loop-powered transmitter draws power directly from the PLC's analog input 4-20mA loop. It needs no separate power wires. A 4-wire active transmitter requires a dedicated power supply, usually 24V DC or 110/220V AC, wired separately from the signal.
A: HART uses Frequency Shift Keying (FSK) to superimpose a high-frequency digital signal over the analog loop. The average value of this digital sine wave is zero. Therefore, it does not disrupt the primary 4-20mA analog control variable. The PLC reads the analog current perfectly while ignoring the digital data.
