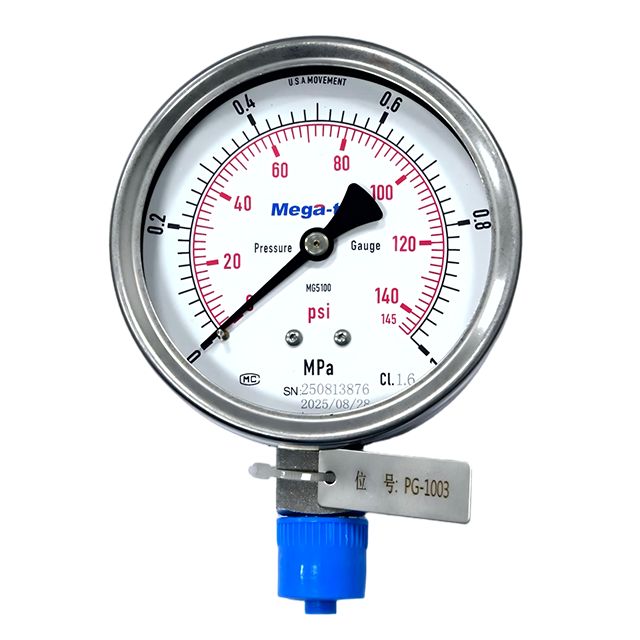

MG5100 Series
1. Suitable for situations where the pressure of the tested medium undergoes strong pulse changes orpressure shocks, and where there is frequent sudden unloading in the production process, as well asplaces with large environmental vibrations;
2. Equipped with different process interfaces to meet the interface size requirements of the user's site;
3. Easy to install, reasonably priced, highly sensitive, and easy to operate;
4. Widely used in industries such as metallurgy, power, petroleum, chemical, light industry, andmachinery;
5. Mechanical pressure gauges can be divided into Bourdon tube type, diaphragm type, and capsuletype according to different elastic elements;
6. The test components are made of copper alloy, stainless steel, or special materials used in specialoccasions.
| Pressure Gauge Type | Common Pressure Type, Diaphragm Type, Capsule Type, Electric Contact Type, Safety Type, Differential Pressure Type (high static pressure, micro differential pressure, bourdon tubes), Special Pressure Type |
| Measurement Parameters | Pressure |
| Housing Structure | Stainless Steel |
| Material | 316, 304, 316L, 304L, Others |
| Medium Temperature | -40~350℃ |
| Measurement Accuracy | Common type ± 1.6% (high-accuracy ± 1.0%); Capsule type ± 2.5% |
| Process Connection | Threads (M national standard, Z/ZG/G imperial system, NPT/PT American system), open flanges, I-flanges (GB/HG/DIN/JIS/ANSI), sanitary clamps, pipeline types |
| Dial Diameter | Φ60~250mm |
| Installation Mode | Radial or axial |
| Measurement Range（MPa） | -0.1~0.06——0.3, -0.1~0.06——2.4, 0~0.1——0.4, 0~0.6——10, 0~16——60, 0~100 |
| Wetted Part Material | Tantalum, Hastelloy C, Titanium, Monel, 316L SST, PTFE lined, etc |
| Instrument Glass | Organic glass, safety double-layer glass |
| Overpressure Protection | Standard 1.3 times (customizable for overvoltage 1.9 times) |
| Anti Vibration Performance | Conventional V.H.3, Seismic resistant type V.H.4 |
| Filling Fluid | High Viscosity Silicone Oil, Low Viscosity Silicone Oil, Glycerin, Vegetable Oil, Fluorine Oil |
| Attachments | Overpressure protector, radiator, damper, extension section, capillary tube, gauge joint, pressure gauge bend, pressure gauge valve group, etc |
| Ingress Protection | IP66/IP67 |
The following are the application scenarios of MG5100 pressure gauge
Oil and Gas Industry
Chemical industry
Water treatment and sewage treatment
Food and Beverage Industry
Metallurgical Industry
Pulp and Paper Industry
HVAC Engineering
Metallurgy and Machinery Industry
Electric power industry
Municipal Industry
