1. Suitable for situations where the pressure of the tested medium undergoes strong pulse changes orpressure shocks, and where there is frequent sudden unloading in the production process, as well asplaces with large environmental vibrations;
2. Equipped with different process interfaces to meet the interface size requirements of the user's site;
3. Easy to install, reasonably priced, highly sensitive, and easy to operate;
4. Widely used in industries such as metallurgy, power, petroleum, chemical, light industry, andmachinery;
5. Mechanical pressure gauges can be divided into Bourdon tube type, diaphragm type, and capsuletype according to different elastic elements;
6. The test components are made of copper alloy, stainless steel, or special materials used in specialoccasions.
| General Specifications | |

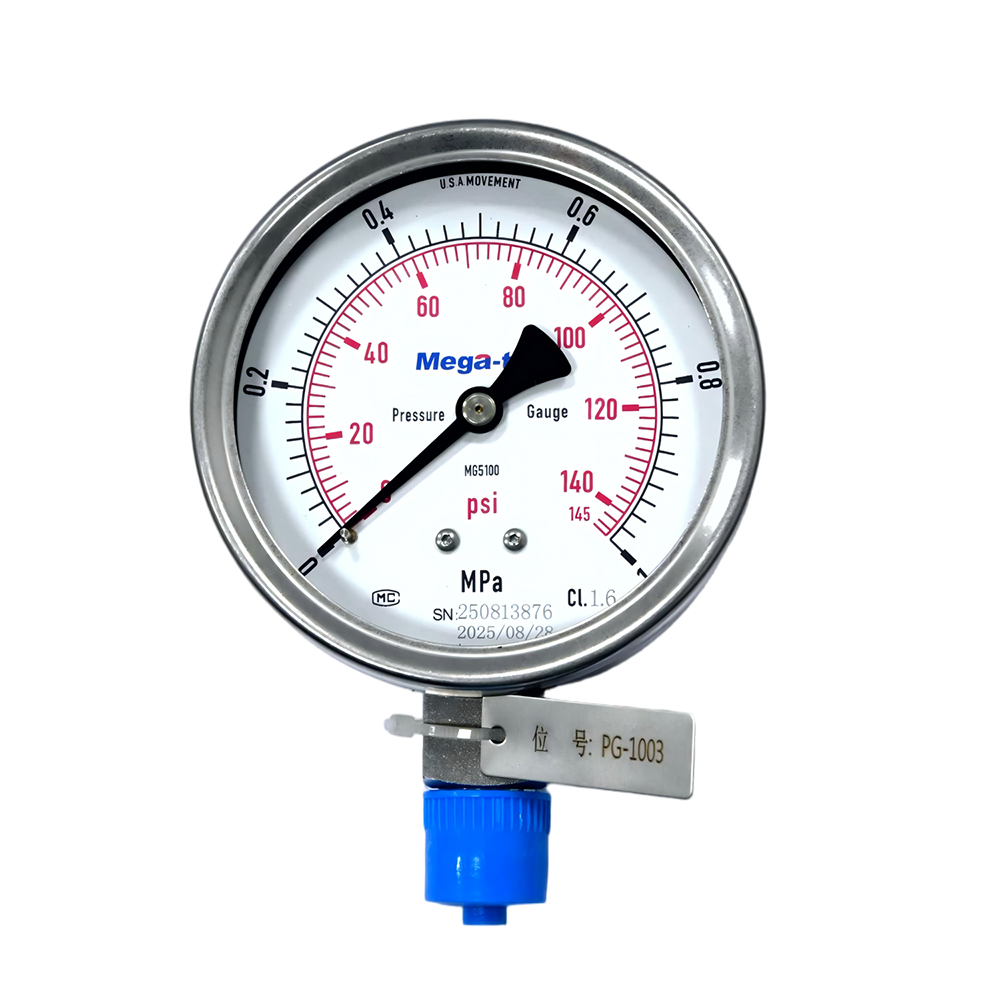

| Product Description | Full Stainless Steel (shock-proof)Pressure Gauge |
| Measurement Parameters | Pressure |
| Housing Structure | Stainless Steel |
| Material | 316,304,316L,304L,Others |
| Process Temp. | Max.+200℃(Fill the case with silicone oil) Max+100℃(Without oil in the case) |
| -20~185°F(-20~85℃)(Fill the case with glycerin) | |
| Ambient Temp.Limit | -25~185°F(-25～85℃)(Fill the case with silicone oil) |
| -40~185°F(-40~85℃)(Without oil in the case) | |
| Storage Temp.Limit | -40～185°F(-40~60℃) |
| Humidity Limit | 0~100%Relative humidity |
| Digital Accuracy | 1.6%、2.5% |
| Process Connection | M14*1.5,M20*1.5,G1/4、G1/2,1/4”NPT,1/2”NPT(and other sizes) |
| Diameter Of Dial | Pressure Digital Accuracy(%) |
| 0~0.6、1、1.6、2.5、4、6、10、16、25MPa | |
| φ60 | -0.1～0、0.06、0.15.0.3、0.5、0.9、1.5、2.4MPa 2.5 |
| 0~0.1、0.16、0.25、0.4、0.6、1、1.6、2.5、4、6、10、16、25、40、60MPa | |
| φ100/φ150 | -0.1～0、0.06、0.15.0.3、0.5、0.9、1.5、2.4MPa 1.6 |
| Overpressure limits | |
| φ60 | Static pressure:3/4*full span |
| Dynamic pressure:2/3*full span | |
| Instantaneous pressure:full span Static pressure:full span | |
| φ100/φ150 | Dynamic pressure:0.9*full span |
| Machinery | Instantaneous pressure:1.3*full span |
| Sealing | Factory sealing |
| Enclosure Ratings | IP65 |
The following are the application scenarios of MG5100 pressure gauge
Oil and Gas Industry
Chemical industry
Water treatment and sewage treatment
Food and Beverage Industry
Metallurgical Industry
Pulp and Paper Industry
HVAC Engineering
Metallurgy and Machinery Industry
Electric power industry
Municipal Industry
