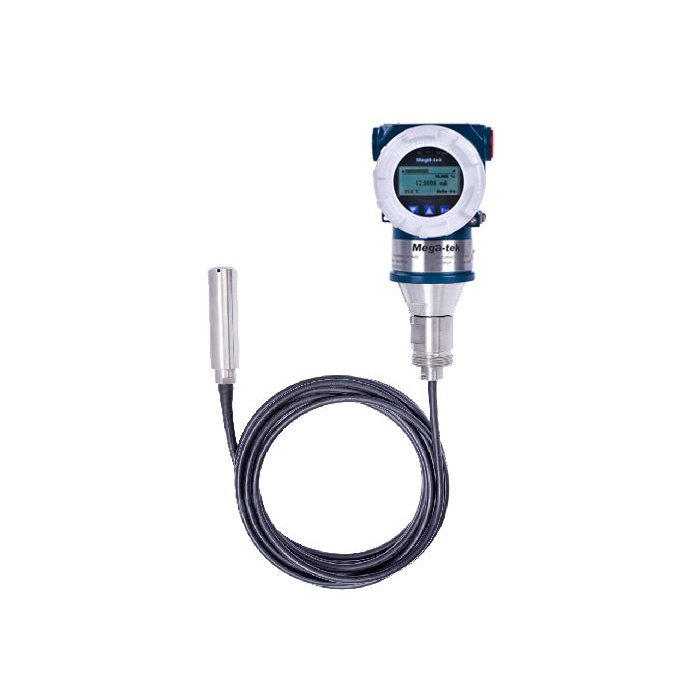

MG5200 Series Static Pressure Level Transmitter

The MG5200 series input level gauge measures the liquid level by measuring the static pressure at the bottom of the liquid. It consists of high-precision and highly stable pressure sensors and fully intelligent module units. During operation, the static pressure of the liquid column that changes with the liquid level is converted into 4-20mA analog signals and digital signals based on the Hart protocol. It has the characteristics of large measurement range, high accuracy, easy installation and
disassembly, simple calibration, safety and reliability.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Features

1.Large measurement range: ≤ 3937 "(100m);
2.Simple and convenient calibration;
3.Temperature and moisture resistance;
4.Wiring error reverse protection, anti RF interference;
5.Implement anti-corrosion with different materials;
6.Good sealing performance

Technical Specifications

GENERAL
Product	MG5200 Series Static Pressure Level Transmitter
Measurement Parameters	Liquid levelpressure
Housing Structure	Dual Chamber
Housing Material	High Pressure Cast Aluminum
Viscosity	≤0.15PaS
Cable Entry	1/2"NPTor M20×1.5
Installation Mode	Top mounted (threaded installation,flange installation,bracket installation)
ELECTRIC
Input Voltage 10.5/16.5~55VDC,with polarity reverse protection
Output Signal	2-wire 4~20mADCHART
Fault Signal High value alarm21mA,low value alarm 3.6mA
Damping 0~1005
Lightning Protection Device	Meet the requirements (GB/T17626.2)severity	of EN61000-4-4(GB/T17626.4)severity level 4and EN61000-4-5 level4
ENVRONMENT
Process Temperature	-4~212F(-20~100C)
Ambient Temperature	-40~185F(-40~85℃)
Storage Temperature	-40~176'F(-40~80℃)
Humidity	0~100%Relative humidity
MEASUREMENT PERFORMANCE
Accuracy	±0.1%,±02%
Environmental temperature im	pact ±0.2%of upper range		limit/10K
Refresh Interval	Once/1S
DISPLAY/INDICATION
Process Display	Display 4-20mA Percentage,Engineering Units
Output Unit	t,in,m,cm,mm
CABLE
Cable length 0~3937'(0~100m)
TRANSMITTER MATERIAL
Sensor Material	304,316LPP,PVDF
Sealing Components	FKM
Cable	PTFE
Diaphragm	316L,Ceramic AL,O₃
HAZARDOUS LOCATIONSC	ERTIFCATIONS
NEPSI	Explosion Proof
NEPSI	Intrinsically Safe
MECHANI
Filler material	PTFE,Graphite material,etc
Outline Dimensions	Refers to P9,Product dimension diagram
Thread	M201.5(M),M421.5(M,1/2"NPT(M),I'NPT(M),1-1/2'NPT(M),2"NPT(M)
Ingress Protecion	IP67/IP68

ftheprobeisinsidea metal containeror guidetube,it complieswith EN61326-1(1997), therevised clause specificalyforuseintheworkplace,specficallyfor Class A1Aequipment.
