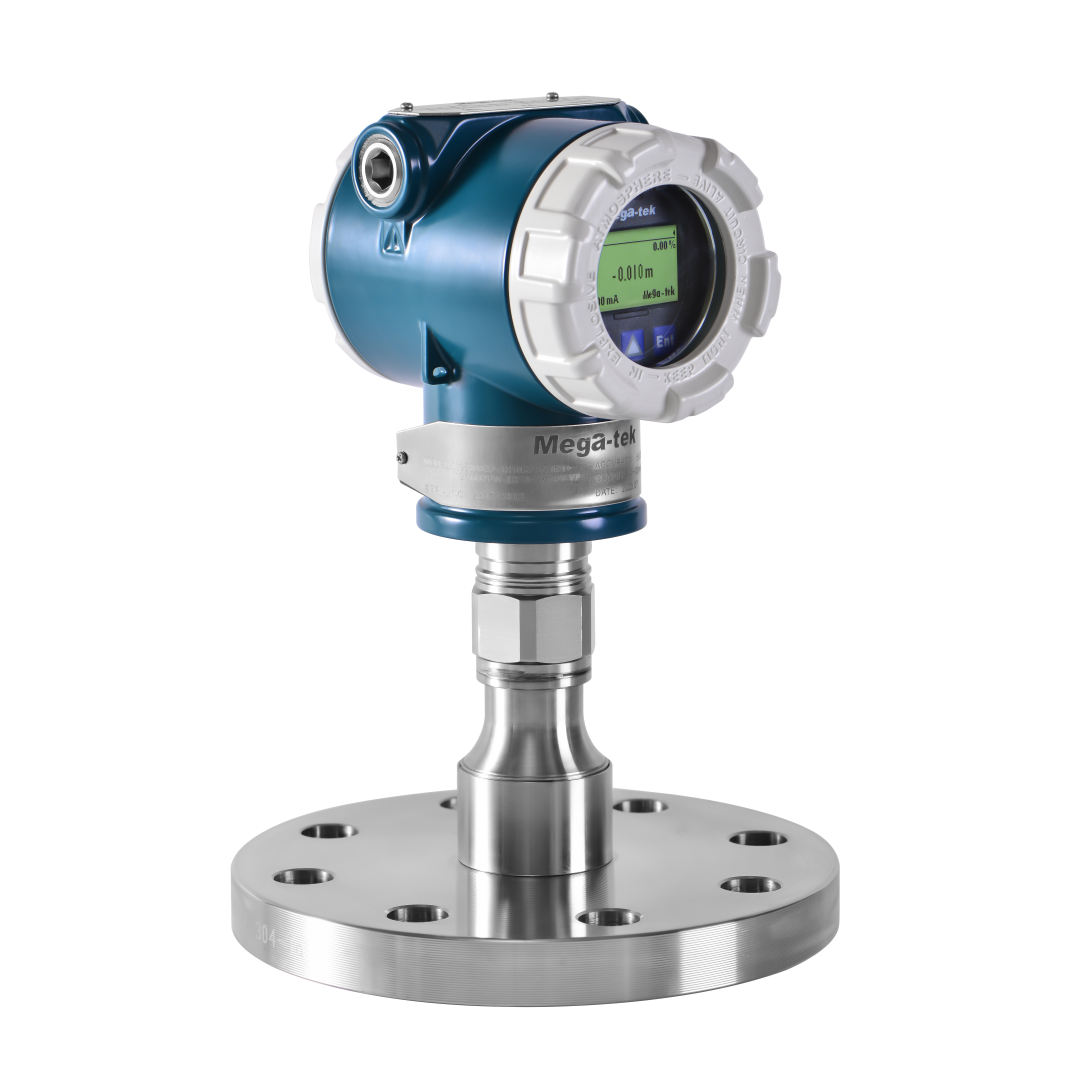

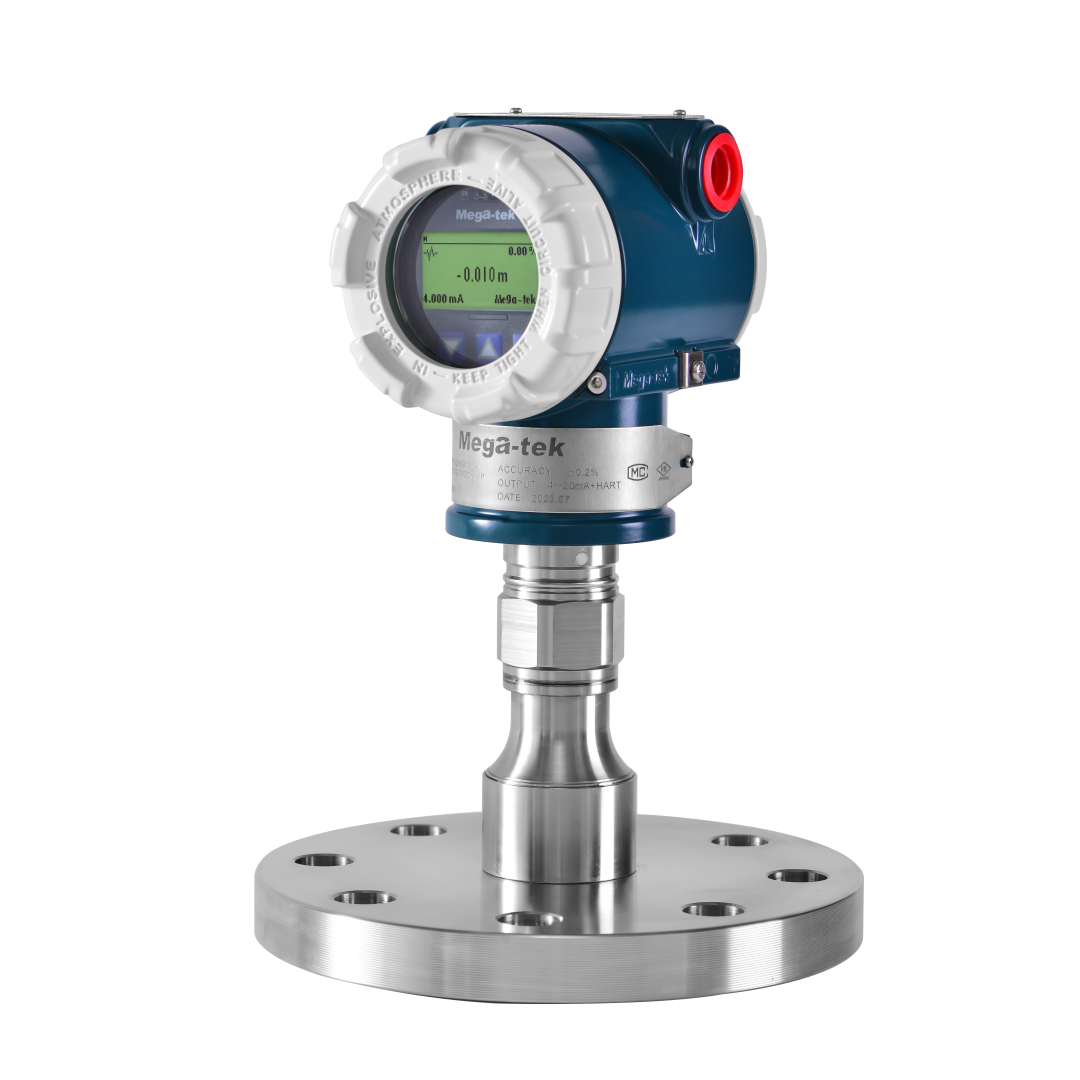

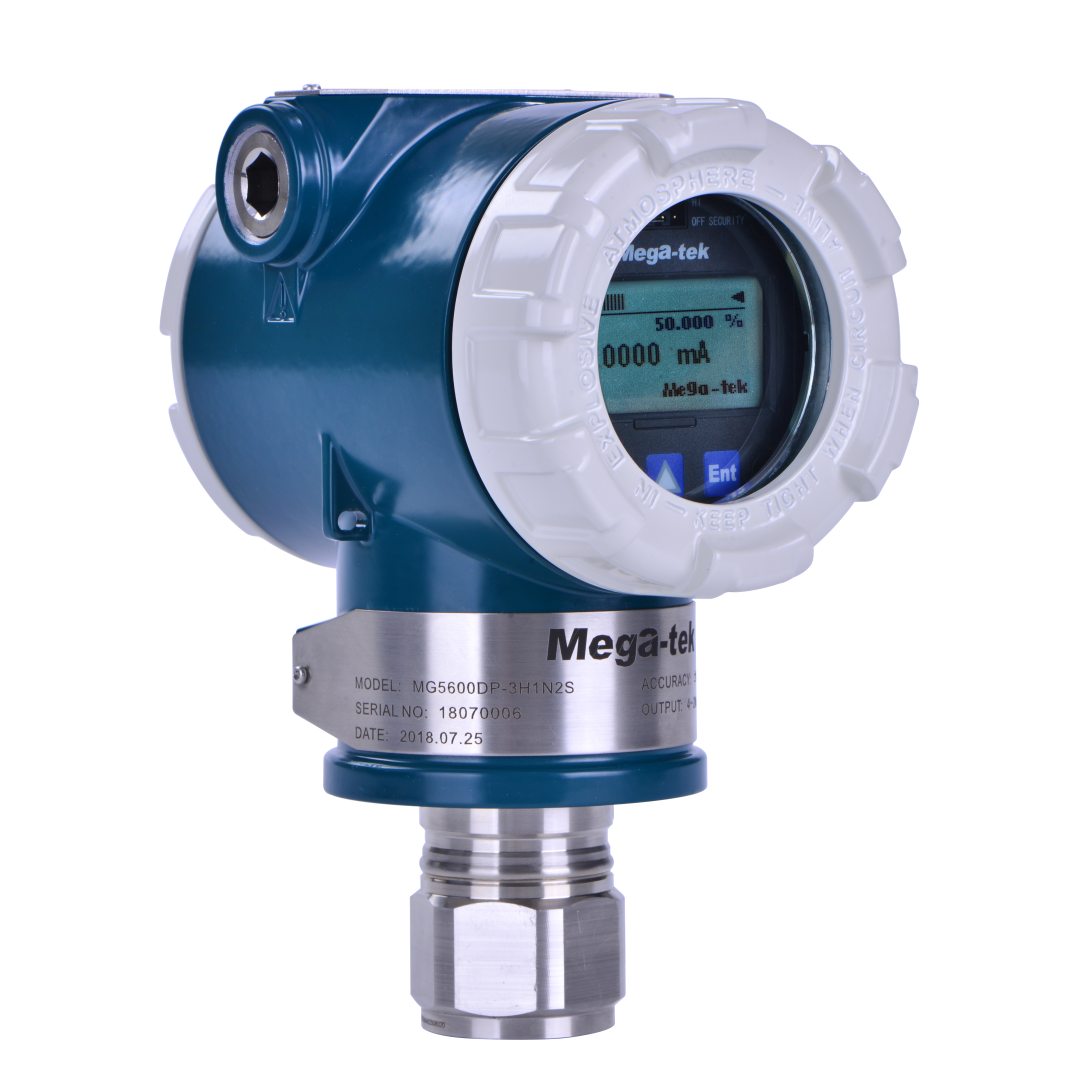

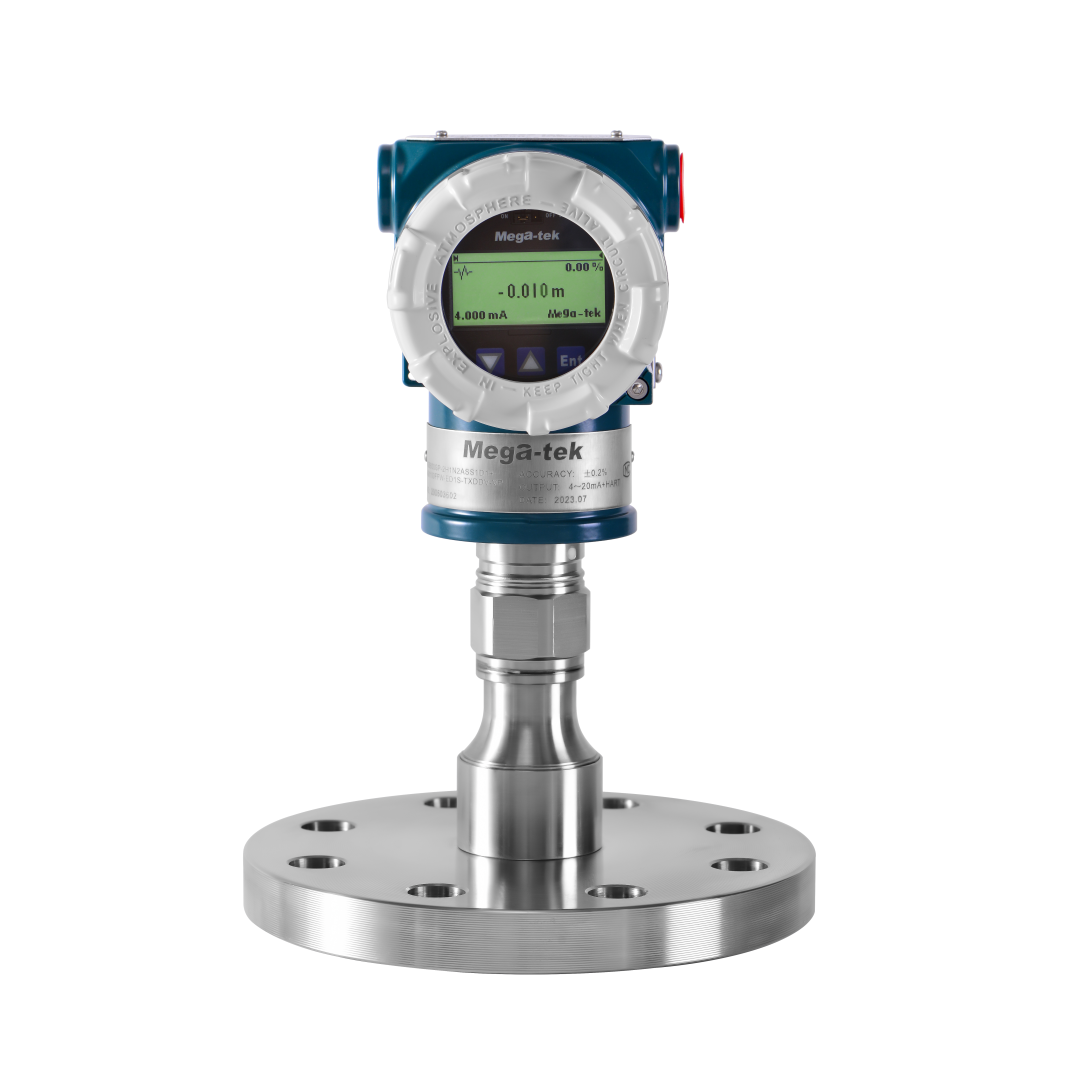

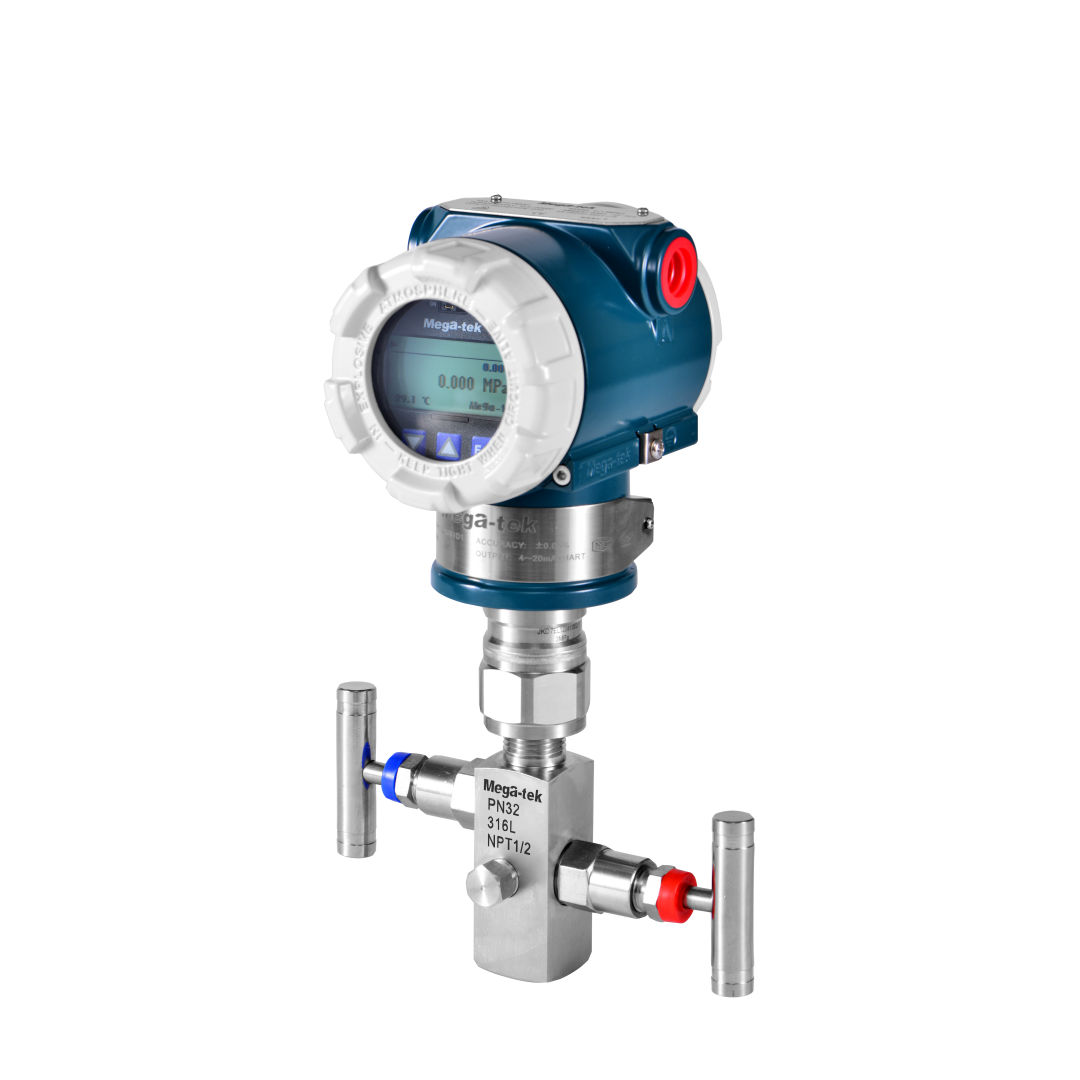

The MG5600GP/AP Series Pressure Transmitter is a high-precision measuring device independently developed by Mega-tek. It is mainly composed of personalized sensor components and central processing circuit modules. The sensor components integrate corrosion-resistant flexible isolation diaphragms, sensor capsules, filling liquids and high-precision pressure sensors. This transmitter is widely used in measuring the pressure of liquid, gas and steam media. It has the characteristics of high stability, high precision and ultra-high overvoltage performance, and can meet the pressure monitoring needs of various harsh industrial environments.
Adopting advanced double beam suspended MEMS monocrystalline silicon pressure sensors and integrated anti high-pressure overload center diaphragms, the transmitter can withstand a maximum overpressure of 0~1000bar (0~100MPa). It has excellent measurement performance, with total accuracy up to ±0.02% for standard pressure ranges, ensuring reliable and accurate data output.
The sensor capsule is embedded with pressure and temperature compensation, personalized information processing and storage circuits. This design allows arbitrary interchangeability of circuit modules without recalibration, greatly reducing maintenance time and costs. The fully plug-in anti-loosening module design enables fast and convenient installation, which is safe and reliable.

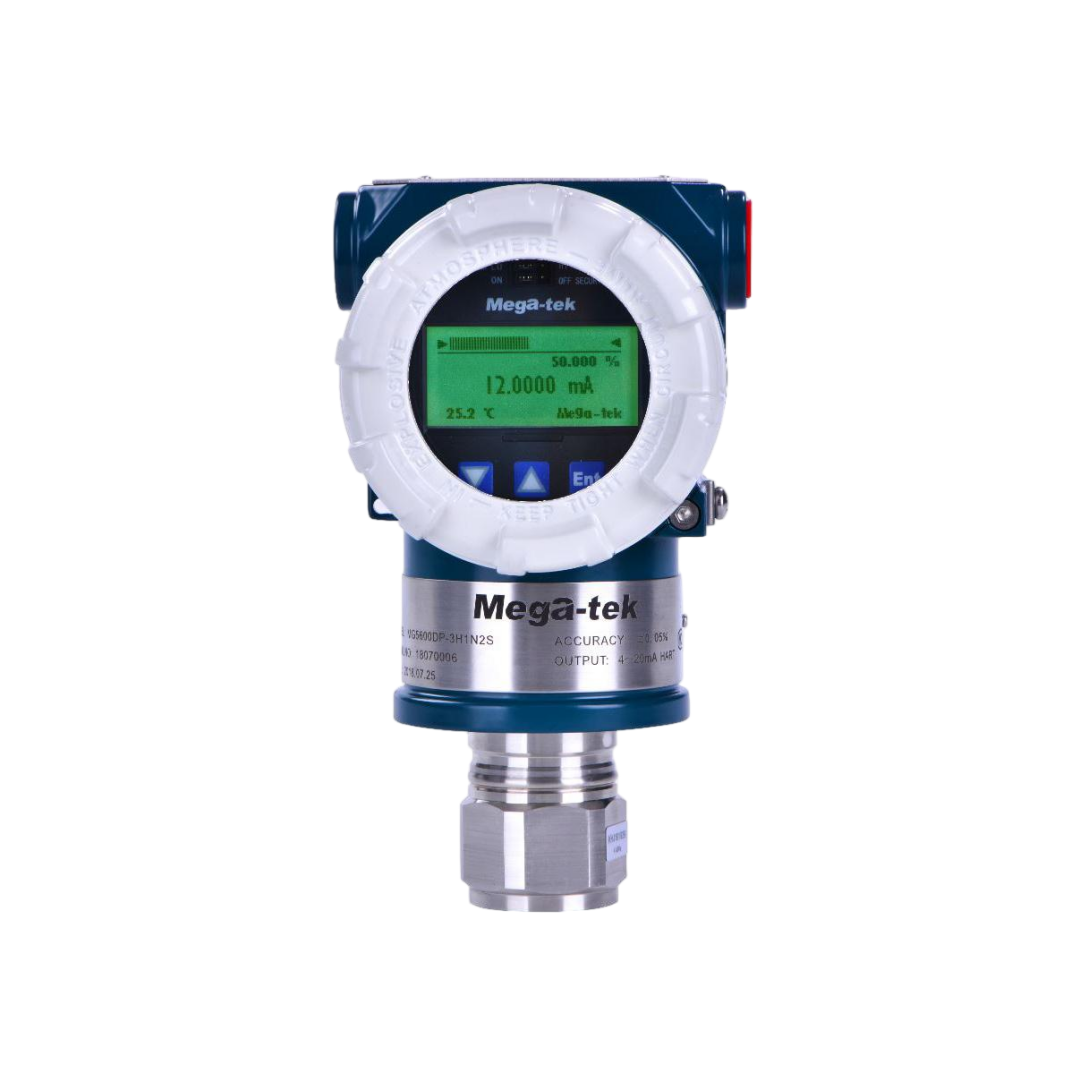

The panel can simultaneously display pressure value, current value, percentage value, percentage rate bar, sensor capsule temperature and logo, and even transmitter waveform curve parameters. The display orientation can be adjusted 360 degrees and configured through three panel buttons. The circuit module has overload protection, lightning protection and strong electromagnetic interference resistance, complying with multiple international standards.
Technical Parameters | Details |
Measured Medium | Liquid, gas, steam |
Measurement Range | 0~700bar (0~70MPa) |
Total Accuracy | ±0.02%, ±0.03%, ±0.04%; Micro differential pressure: ±0.2% (range down ratio ≥2), ±0.4% (range down ratio ≤10) |
Output Signal | Two-wire 4~20mADC, HART |
Input Voltage | General voltage: 10.5-45VDC; Intrinsically safe voltage: 10.5～26VDC |
Load Resistance | 250~600Ω (DC24V, including cable resistance) |
Housing Material | High-pressure cast aluminum or 316 stainless steel |
Cable Entry | 1/2"NPT(F) or M20×1.5 |
Operating Temperature | Ambient temperature: -40~85℃ (inert fill); -40~60℃ (standard); Process temperature: -40~150℃ |
Explosion-Proof Certification | FM, ATEX, NEPSI; Single sets meet SIL2, redundant use meets SIL3 |
In the petrochemical industry, the MG5600GP/AP Series Pressure Transmitter is used to monitor the pressure of crude oil, natural gas and chemical reagents in pipelines and storage tanks. Its corrosion-resistant structure and high-pressure resistance can adapt to the harsh working environment of high temperature, high pressure and corrosive media, ensuring the safe and stable operation of the production system.
During the metal smelting process, the transmitter monitors the pressure of high-temperature steam and molten metal pipelines. It can withstand extreme temperature changes and high-pressure impacts, providing real-time pressure data for smelting equipment. This helps prevent pipeline rupture and leakage accidents, and improves the safety of the smelting site.
In power plants, the transmitter is widely used in boiler systems, steam turbines and water supply pipelines. It monitors the pressure of steam and water in real time to ensure the normal operation of power generation equipment. The high stability of the transmitter ensures long-term reliable data output, which is of great significance for improving power generation efficiency and reducing maintenance costs.
The food and pharmaceutical industries have strict requirements for production equipment and environmental hygiene. The MG5600GP/AP Series Pressure Transmitter with food-grade materials can meet the hygiene standards of the industry. It is used to monitor the pressure of raw materials and finished products in the production process, ensuring the quality and safety of products and complying with relevant industry regulations.
Yes. The zero and full scale points can be adjusted on site or configured through the three buttons on the panel, which is very convenient.
It has excellent long-term stability, with annual drift less than ±0.05% FS, and long-term drift less than ±0.1% FS in 10 years.
Yes. It supports HART communication protocol, and the linear output or square root output can be adjusted remotely through configuration software.
Are you in need of a high-precision pressure transmitter for industrial pressure measurement? The MG5600GP/AP Series Pressure Transmitter can meet your diverse needs with its excellent performance and flexible design! Don't hesitate to click the "Inquire" button to get the latest quotation and technical parameters, or add the product to your basket directly. Our professional technical team will provide you with one-stop solutions and after-sales service!
