Application
The MG8210 Series Magnetic Float Level Gauge is designed for continuous level and interface monitoring in extreme industrial environments. Based on non-contact magnetic coupling and flip indicator technology, it delivers stable and intuitive level indication under ultra-high temperature, ultra-high pressure, and corrosive conditions. With operating temperatures up to 538 °C, pressures up to 42 MPa, and measurement ranges up to 8000 mm, it is ideal for complex process systems where reliability and safety are critical.
Water & Wastewater Treatment
The MG8210 is widely used in clean water, wastewater, and sludge treatment systems for long-range level monitoring. Its magnetic coupling structure avoids direct contact between the medium and the indicator, ensuring stable operation even in fluctuating liquid conditions.
Key advantages:
Measurement range up to 8000 mm
IP67/IP68 protection for humid environments
Stable performance unaffected by bubbles or foam
Oil & Gas Industry
In oil and gas production, storage, and refining processes, the MG8210 is applied in separators, storage tanks, and high-pressure vessels. With pressure resistance up to 42 MPa and temperature tolerance up to 538 °C, it supports demanding upstream and downstream applications.
Key advantages:

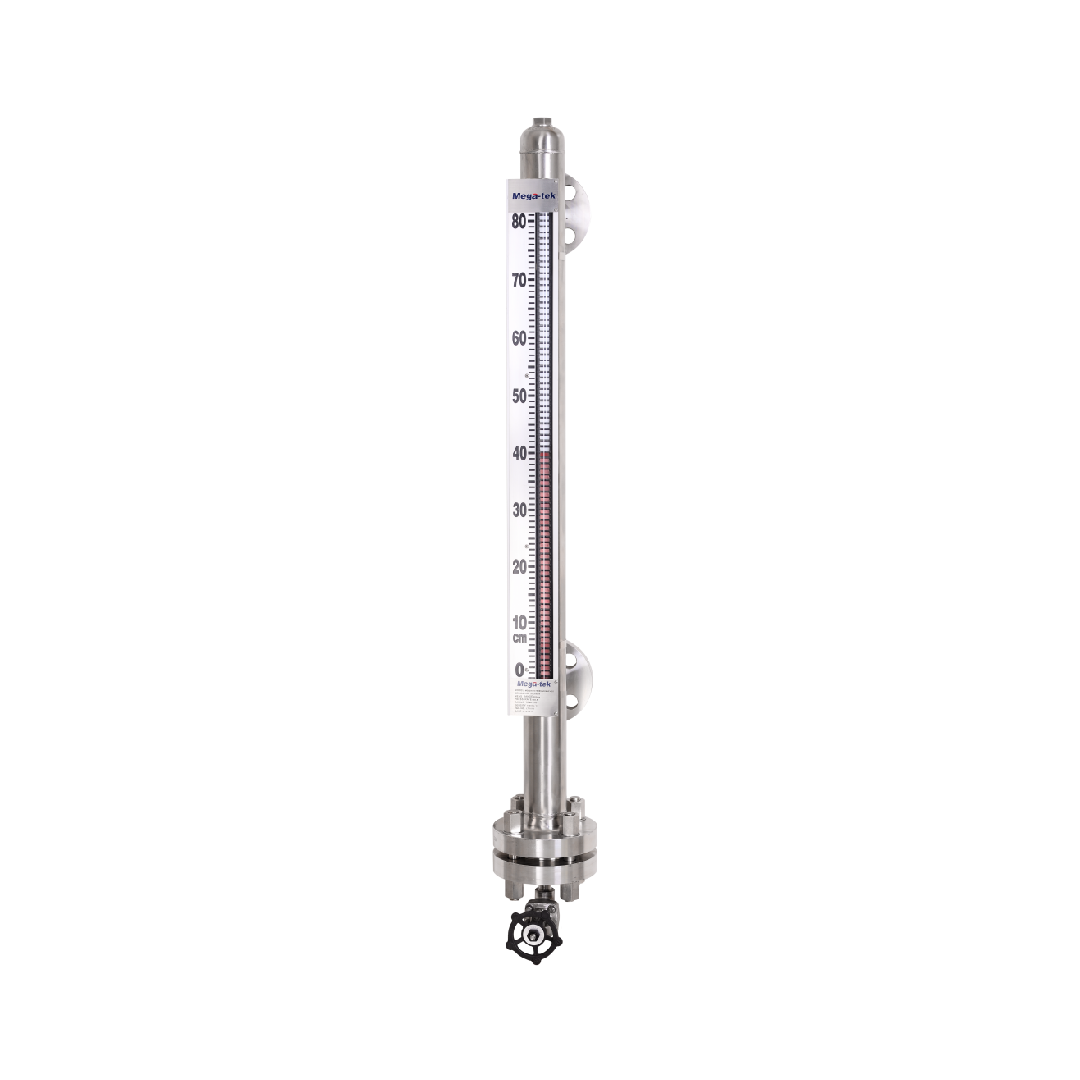

High-pressure models up to 42 MPa
Non-contact magnetic indication for enhanced safety
Suitable for cryogenic and high-temperature media (196 ~ 538 °C)
Chemical & Petrochemical Industry
The MG8210 is suitable for monitoring aggressive chemical media. Wetted parts made of 316L stainless steel, titanium, Hastelloy C-276, graphite, and PTFE lining ensure long-term resistance to strong acids and alkalis.
Key advantages:
Broad medium density adaptability (120–1350 kg/m³)

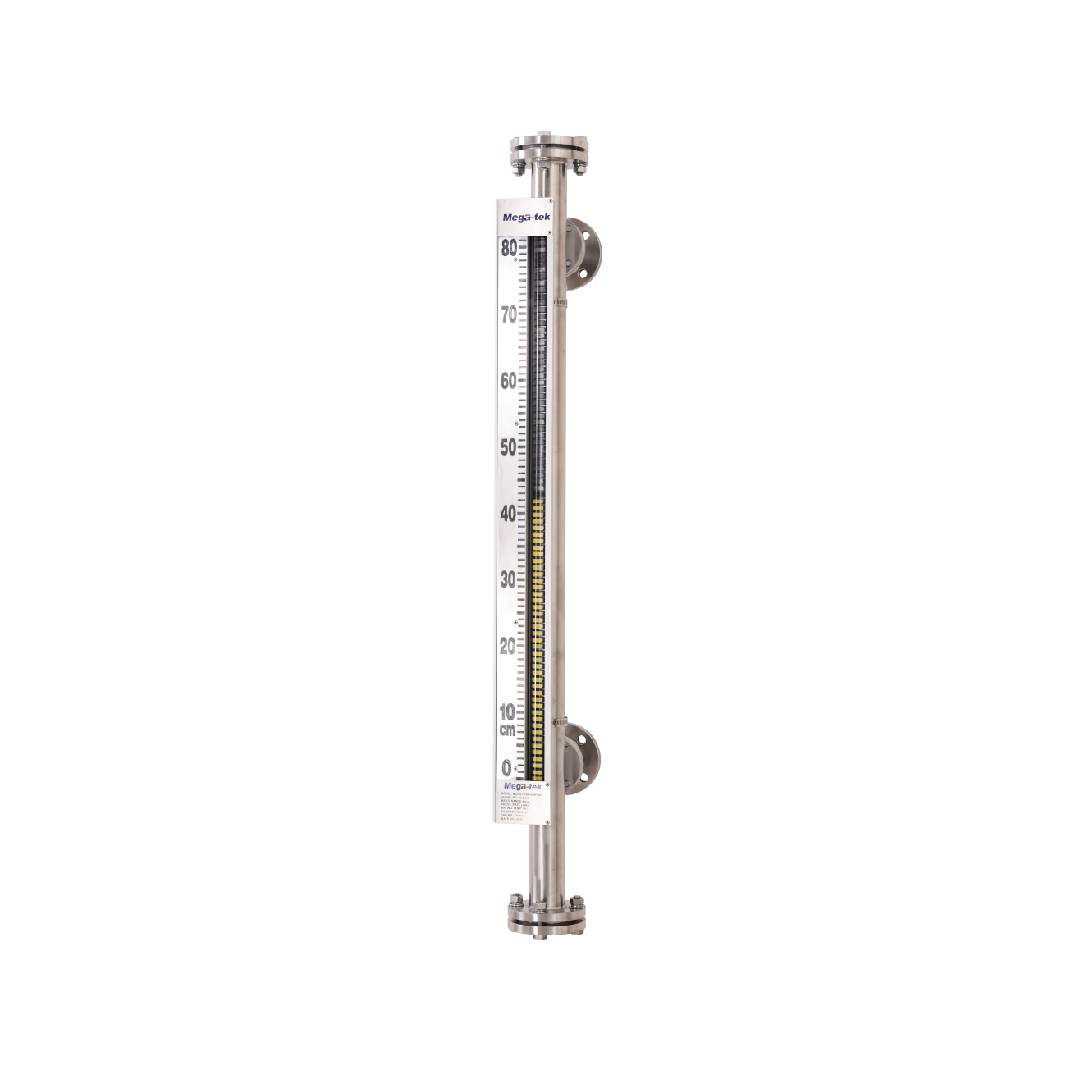

Corrosion-resistant material options
Accurate level and interface indication (±10 mm)
Power Industry
In thermal and nuclear power systems, the MG8210 is used for drum level and auxiliary tank monitoring. Its magnetic flip indicator provides clear visual indication without blind spots, ensuring reliable level observation in high-temperature and high-pressure environments.
Key advantages:

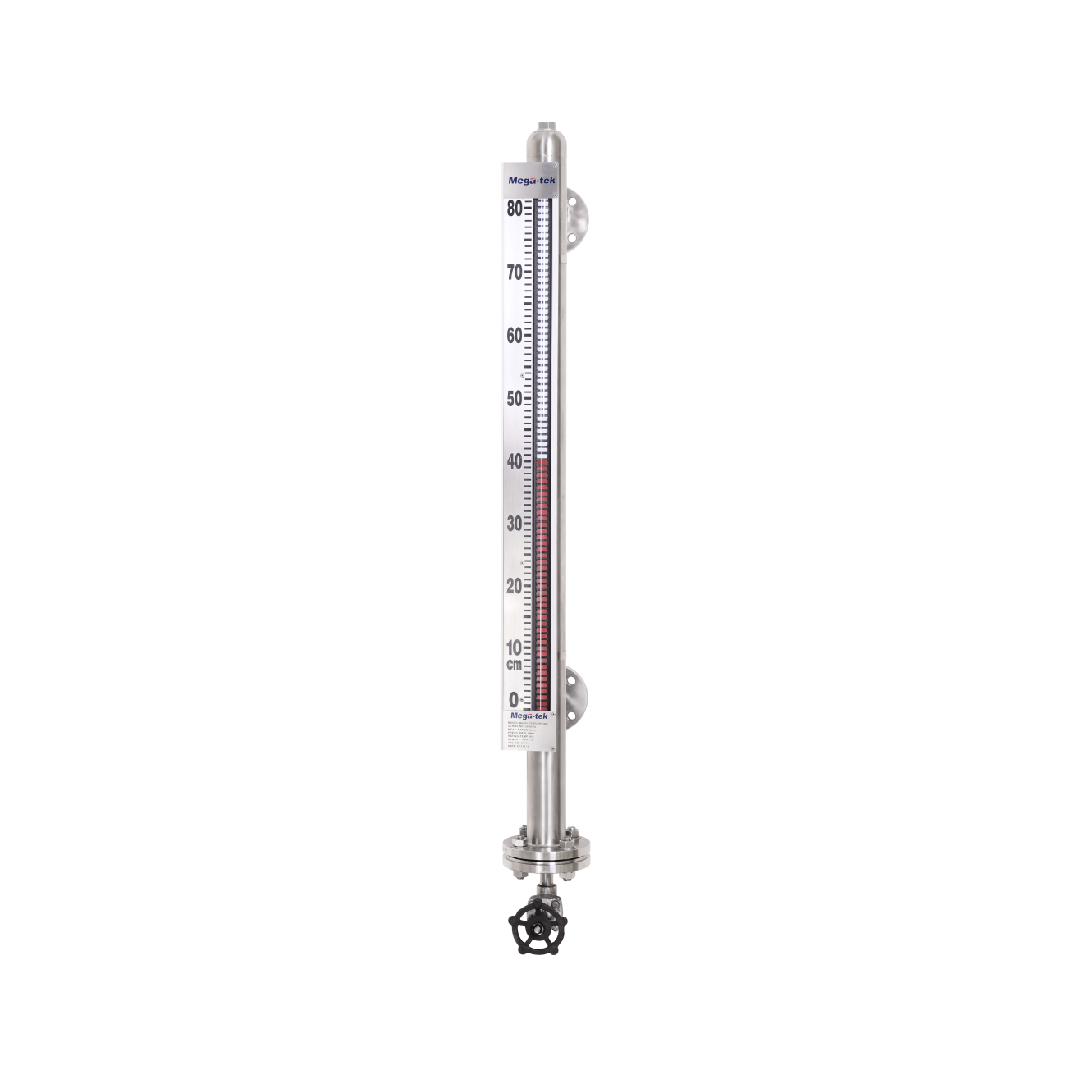

High-temperature models up to 538 °C
Clear visual indication with flip panel display
Long-term stable operation in thermal systems
Food & Beverage Industry
The MG8210 is applied in storage tanks and process vessels requiring stable and hygienic level monitoring. Its stainless steel structure and non-contact indication design reduce the impact of medium turbulence and gas content.
Key advantages:
Smooth stainless steel wetted parts
Stable indication unaffected by medium bubbles
Suitable for continuous process monitoring
Pharmaceutical Industry
In pharmaceutical processes, the MG8210 supports precise level and interface monitoring in reactors and storage tanks. The magnetic coupling design isolates the medium from the indicator, improving operational safety and measurement stability.
Key advantages:
Non-contact indication mechanism
High reliability in continuous operation
Compatible with transmitter accessories for signal output
Metallurgical & Mechanical Industry
The MG8210 is widely used in metallurgical and industrial systems for monitoring cooling liquids, lubricants, and process fluids under harsh operating conditions.
Key advantages:
Robust mechanical structure
Wide temperature and pressure tolerance

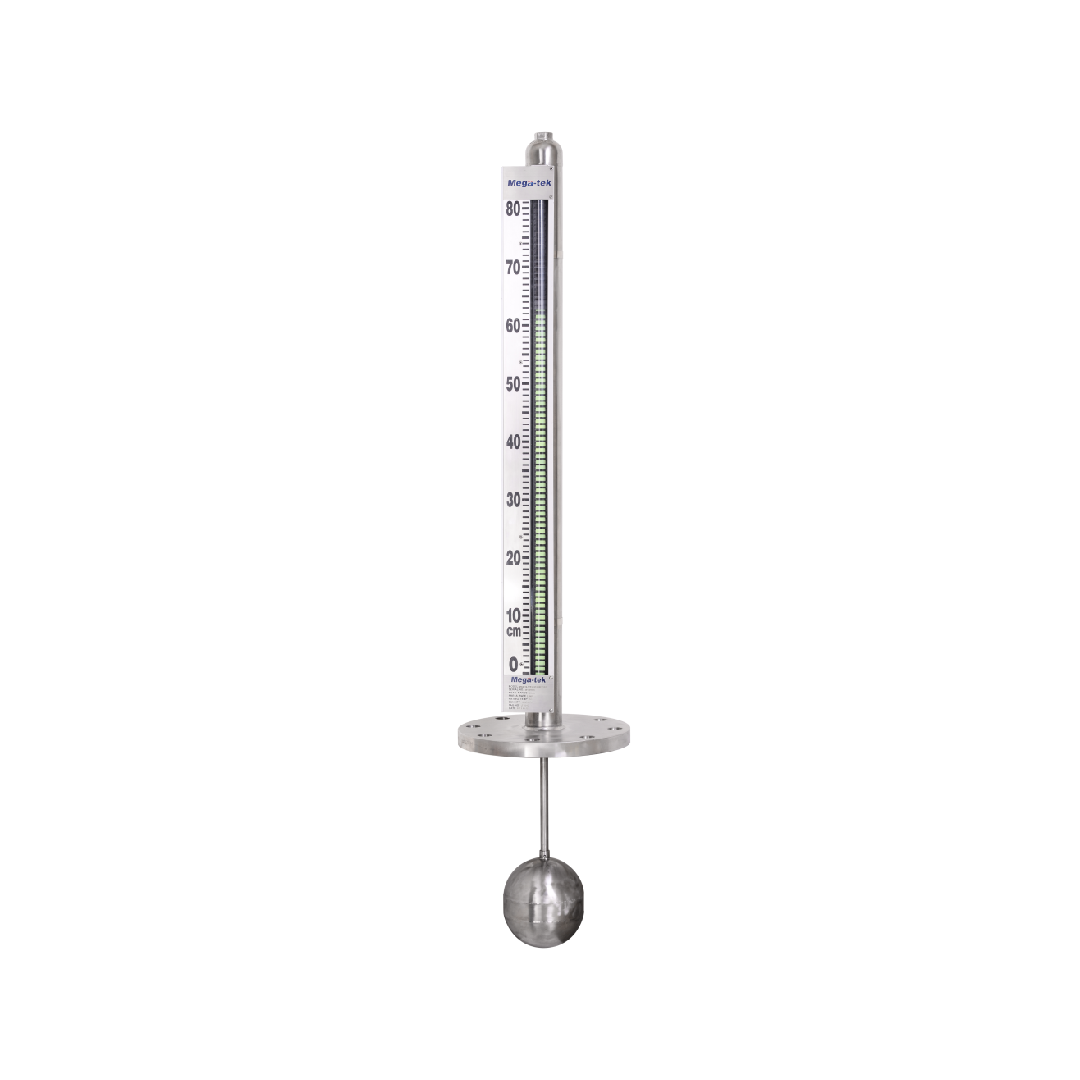

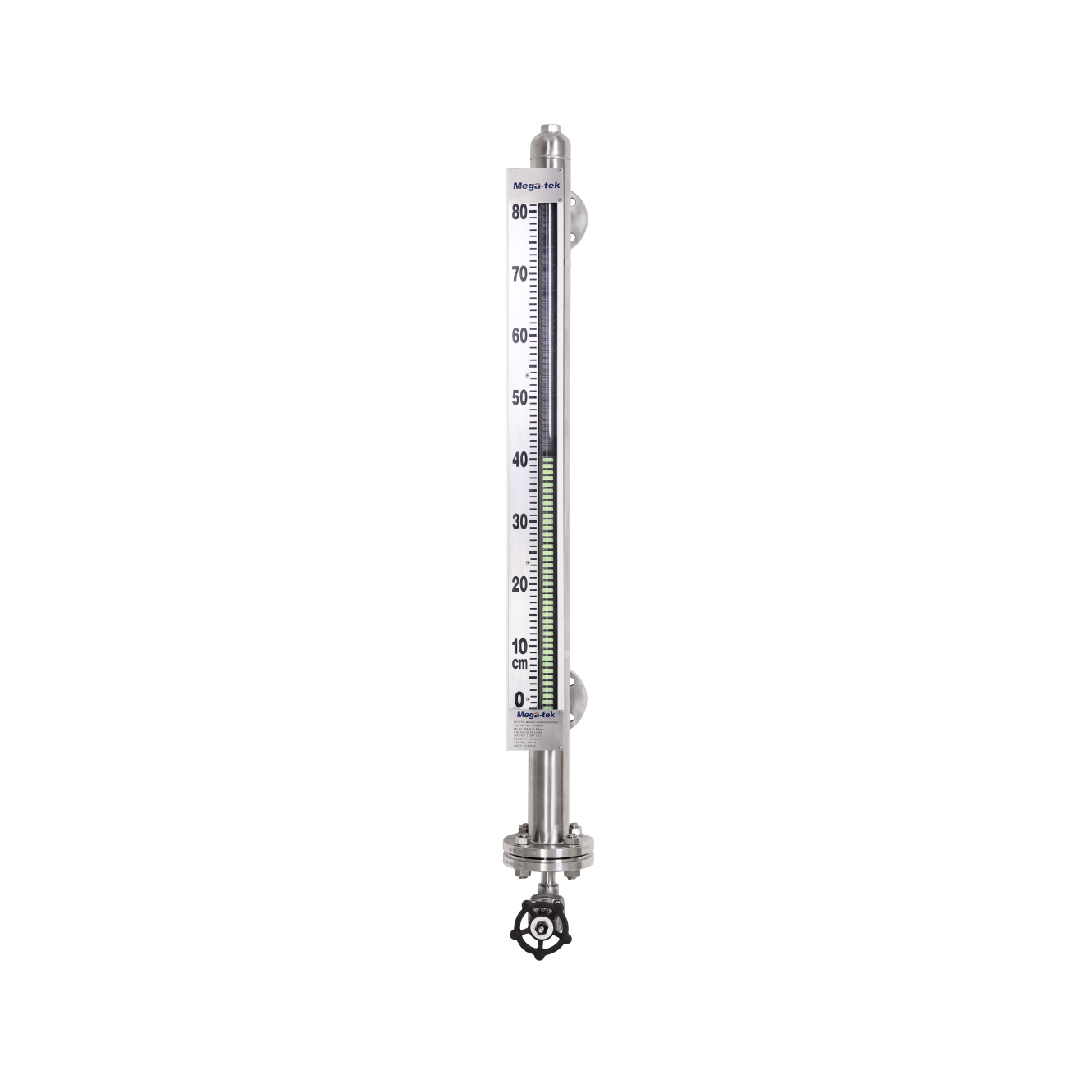

Optional top-mounted and side-mounted configurations
