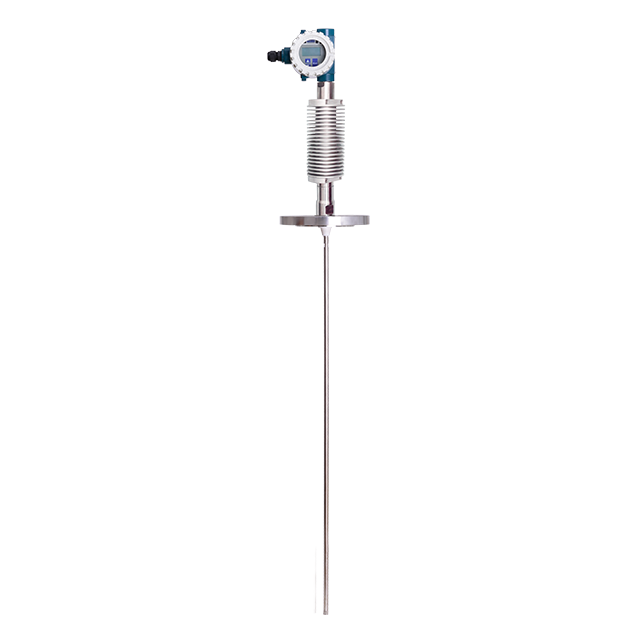

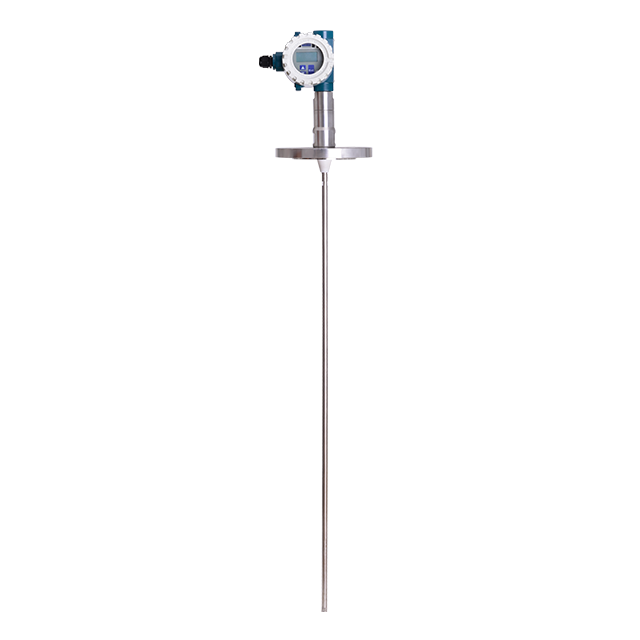

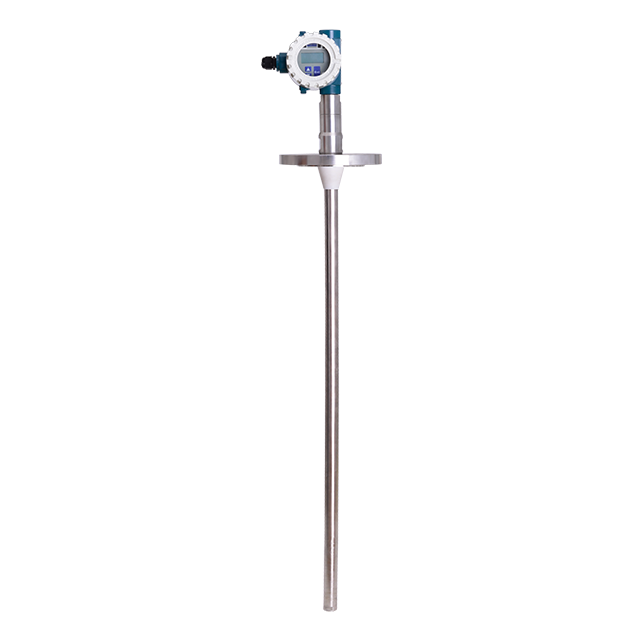

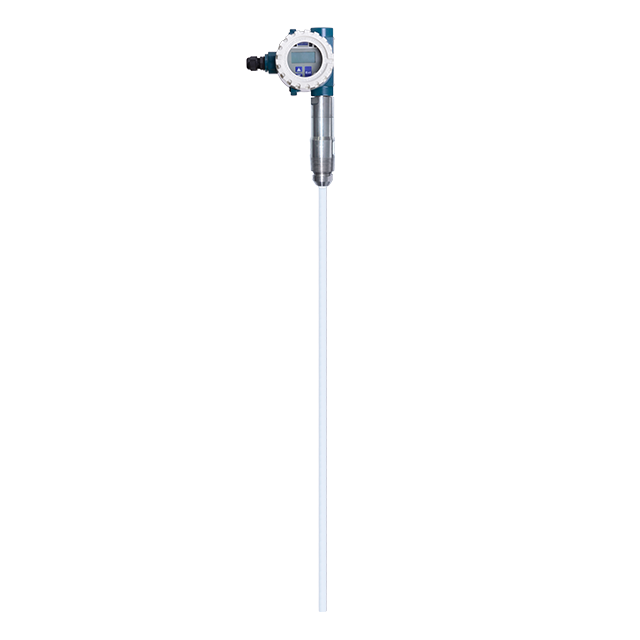

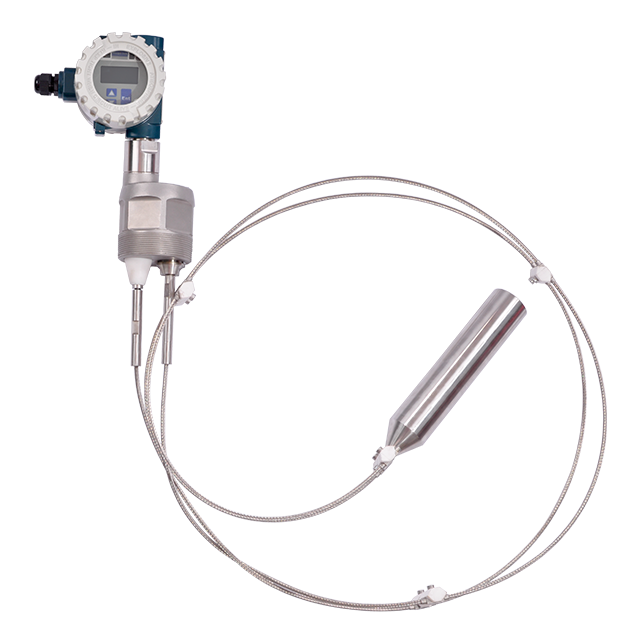

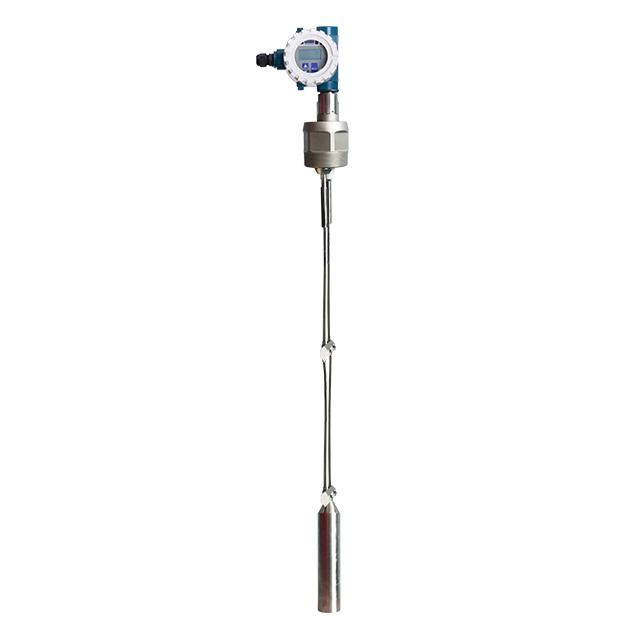

MG8910 Series
●The microwave signal of guided wave radar is transmitted along the guided wave antenna, which can eliminate false echo signal, reduce signal loss, and has high reliability;
●Guided wave radar technology can eliminate the influence of powder, steam, obstacles and turbulence. It is applicable to the level measurement of various shapes equipment;
●No drift, not affected by atmospheric conditions and medium density changes;
●The wetted parts are made of stainless steel and PTFE, which are resistant to corrosive media such as strong acid and alkali;
●Modules are interchangeable, when replacing modules on site needs no calibration;
●Full digital module display;
●Module design and movable parts without disassembly and wear guarantees a long service life;
●Various installation modes, by thread, flange and cylinder side, are easy to operate.
| GENERAL SPECIFICATION | |
| Product | MG8910 Series Guided Wave Radar Level Tranmitter |
| Measuring Principle | Time domain reflection measurement (TDR) |
| Dielectric Constant | ≥1.4 |
| Start-up Time | ＜10S |
| Measuring Target | Liquid level, liquid interface, object position |
| Case Structure | Double chamber |
| Case Material | High pressure cast aluminum, stainless steel |
| Cable Entry | 1/2"NPT or M20×1.5 |
| Material | 316LSST, 304SST, 316SST, Ti, 304LSST, Ta, Zirconium 702 alloy, Harbin C-276 alloy, 600 alloy, 400 alloy, 201 nickel, 20 alloy, Harbin C-22 alloy, 2507 two-phase SST, PTFE lining |
| ELECTRICAL PARAMETERS | |
| Input Voltage | 13.5~30VDC, Protection against wrong polarity reverse connection |
| Output Signal | 2-wire 4~20mADC, HART |
| Fault Signal | Over-high level alarm 21mA, over-low level alarm 3.6mA |
| Damping | 0.2~30s |
| Lightning Protection Device | Meet EN61000-4-4 (GB/T17626.4) severity level 4 and EN61000-4-5 (GB/T17626.2) severity level 4 |
| PRESSURE | |
| Working Pressure | 0~250bar (0~25MPa) |
| SURROUNDINGS | |
| Working Temp. | -320~1000℉ (-196~538℃) |
| Ambient Temp. | -40~176℉ (-40~80℃) |
| Storage Temp. | -40~176℉ (-40~80℃) |
| Humidity | 0~100％ relative humidity |
| PERFOMANCE | |
| Accuracy | ±3mm |
| Influence of Ambient Temp. | The error caused by each change of 1 ℃ is less than 0.01% of the measuring distance. |
| Refresh Interval | 1 time/s |
| MONITOR/DISPLAY ON SITE | |
| Process Display | 4~20mA, percentage, project unit |
| Output Unit | ft, in, m, cm, mm |
| PROBE ROD | |
| Thread Type | Rigid probe rod: 20~236" (500~6000mm), Flexible probe rod: 20~2362" (500~60000mm) |
| Flange Type | Rigid probe rod: 20~236" (500~6000mm), Flexible probe rod: 20~2362" (500~60000mm) |
| Coaxial Type | 20~787" (500~20000mm) |
| Side-side Type | 20~708" (500~18000mm) |
| EXPLOSION PROOF CERTIFICATION | |
| FM | American Industry Association Certification |
| CEX | Flame proof |
| CEI | Intrinsic safety |
| CSA | Canadian Standards Association Certification |
| IEI | IS International Electromechanical Commission |
| SIL | SIL2/SIL3 |
| MECHANISM | |
| Tensile Strength | Flexible Probe Rod: External diameter 0.2" (5mm) 3100 pounds (14kN) Double Rod Flexible Probe: External diameter 0.2" (5mm) |
| Load | 2210 pounds (10kN) 3755 pounds (17kN) |
| Wetted Part Material | 316LSST, 304SST, PTFE, 316SST, Ti, HC-276 alloy, Monel alloy, Graphite, etc. |
| Coaxial Tube Outer Diameter | φ22~89 |
| Thread | Thread 1-1/2"NPT, 2"NPT (Double Rod Probe Type) |
| Sealing | Original Sealing |
| Ingress Protection | IP67/IP68 |
| EMC | If the probe rod is installed in a metal container or guide tube, it shall comply with the provisions of the revised provisions of EN 61326-1 (1997) for Class A1A equipment specially used in the workplace. |
The following are the application scenarios of MG8910 Guided Wave Radar Level Transmitter:
●Pulp and Paper Industry
●Chemical and Petroleum Industry
●Oil and Gas Industry
●Pharmaceutical Factory
●Food and Beverage Industry
●Water Treatment and Sewage Treatment
●Electric Power Industry
●Machinery and Metallurgical Industry
