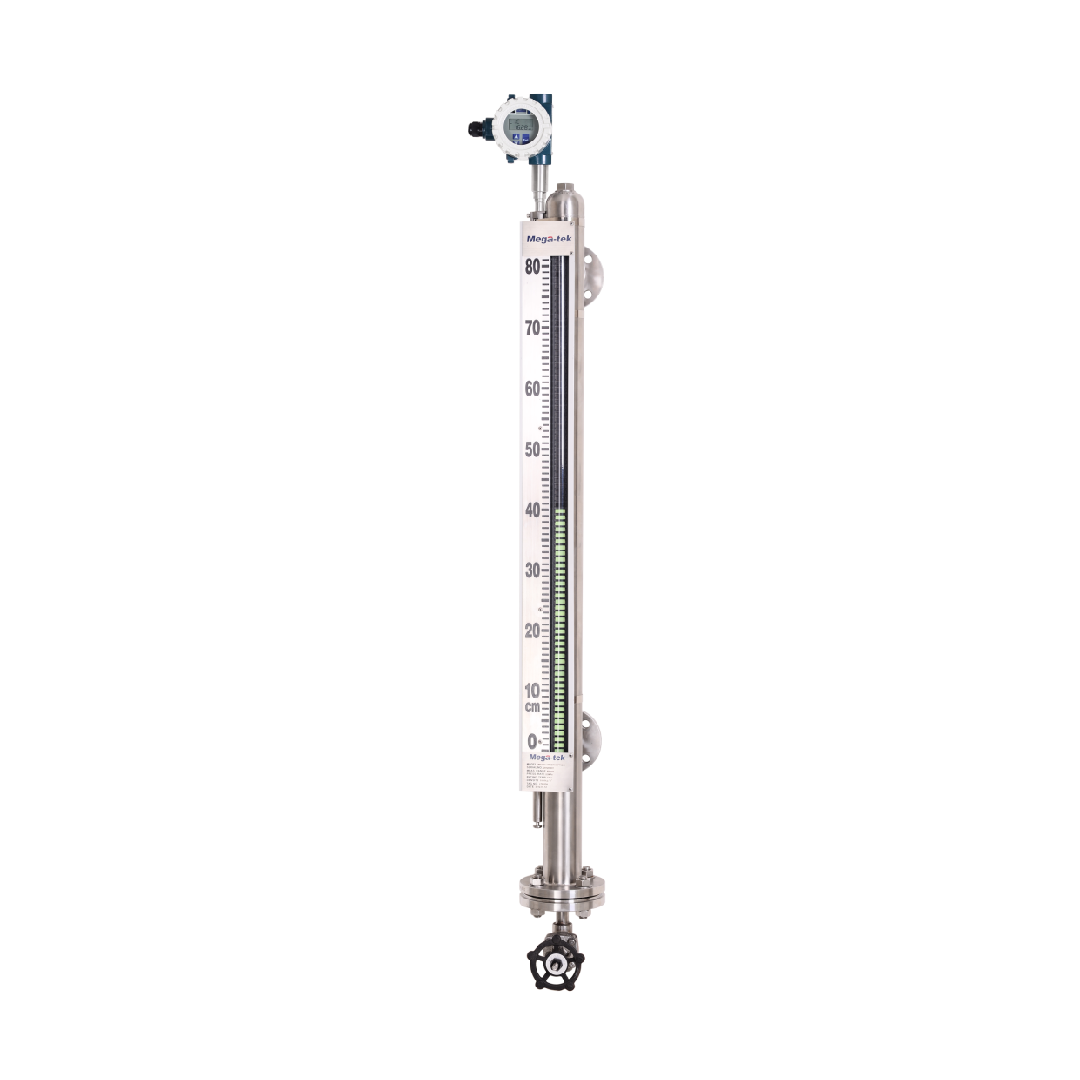

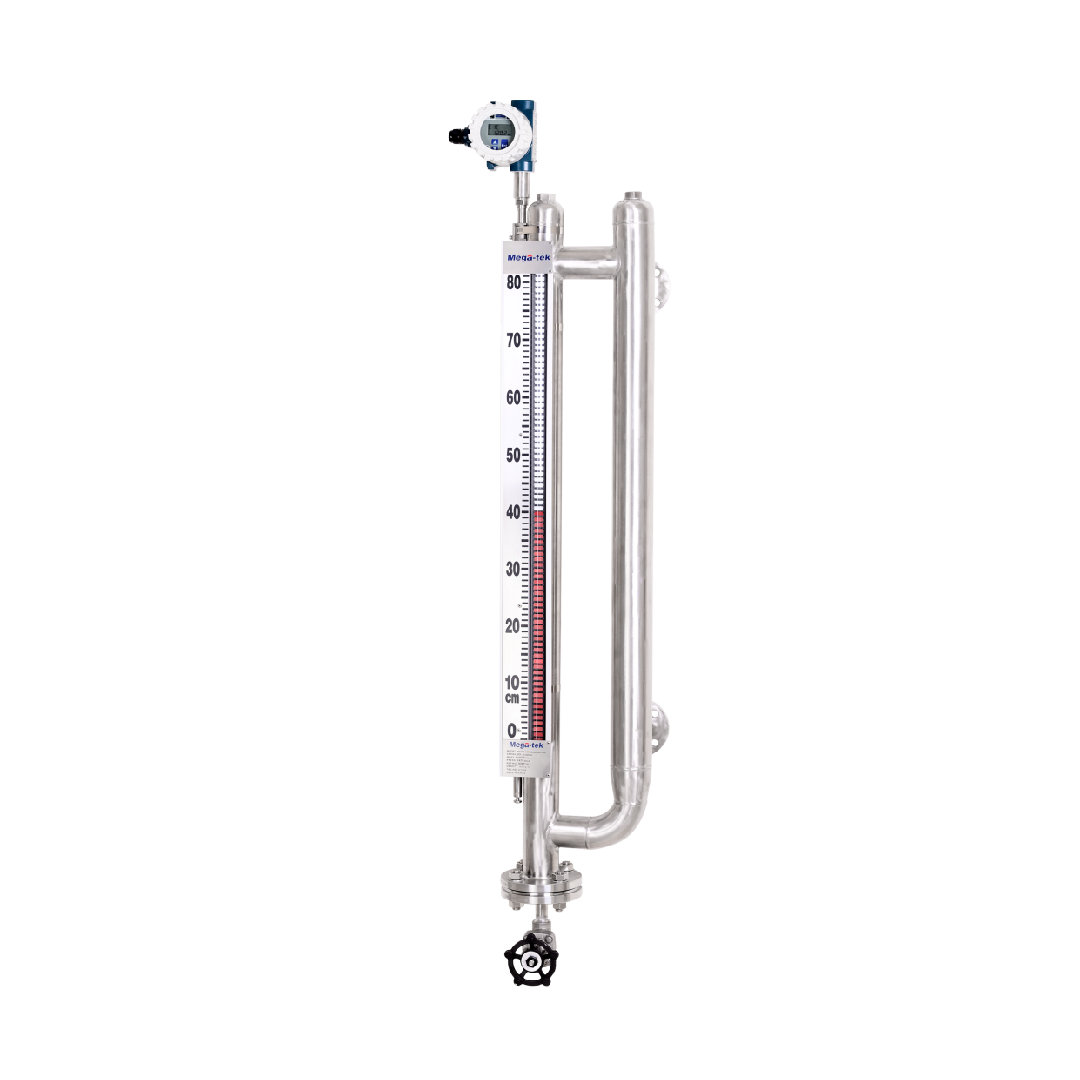

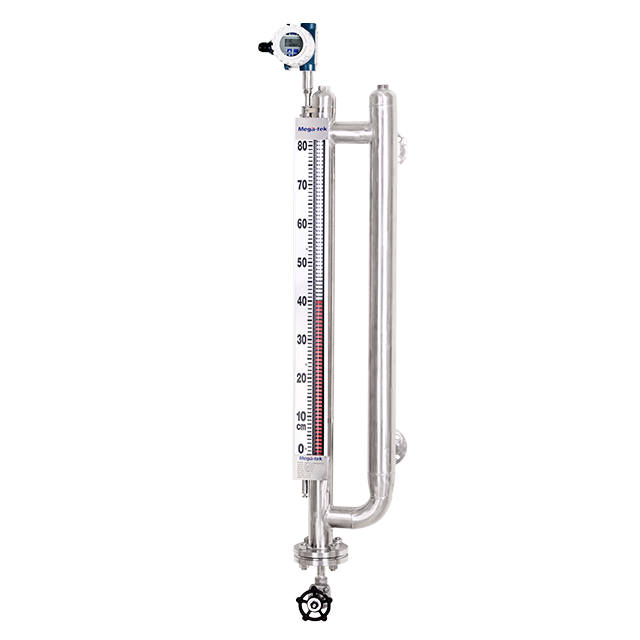

MG8350 Magnetic Float Level Transmitter

Technical Specifications

Product Application

The MG8350 Series Magnetic Float Level Transmitter is engineered for continuous level and interface measurement in hazardous, corrosive, and high-pressure environments. With magnetic coupling technology, dual-chamber housing, and 4–20 mA + HART signal output, it provides stable remote level transmission over measuring lengths from 900 to 6000 mm. Featuring accuracy up to ±0.5%, temperature drift below 0.01% per °C, and pressure resistance up to 42 MPa, the MG8350 is ideal for process systems requiring reliable real-time level monitoring.

Water & Wastewater Systems

The MG8350 is applied in underground reservoirs, sewage tanks, and pumping stations where continuous level transmission is required. Its magnetic coupling design ensures stable measurement even in fluctuating or foam-containing liquids.

Technical advantages:

• Continuous output via 4–20 mA + HART

• Suitable for media density ≥ 450 kg/m³

• Stable performance in humid environments

Oil & Gas Production and Storage

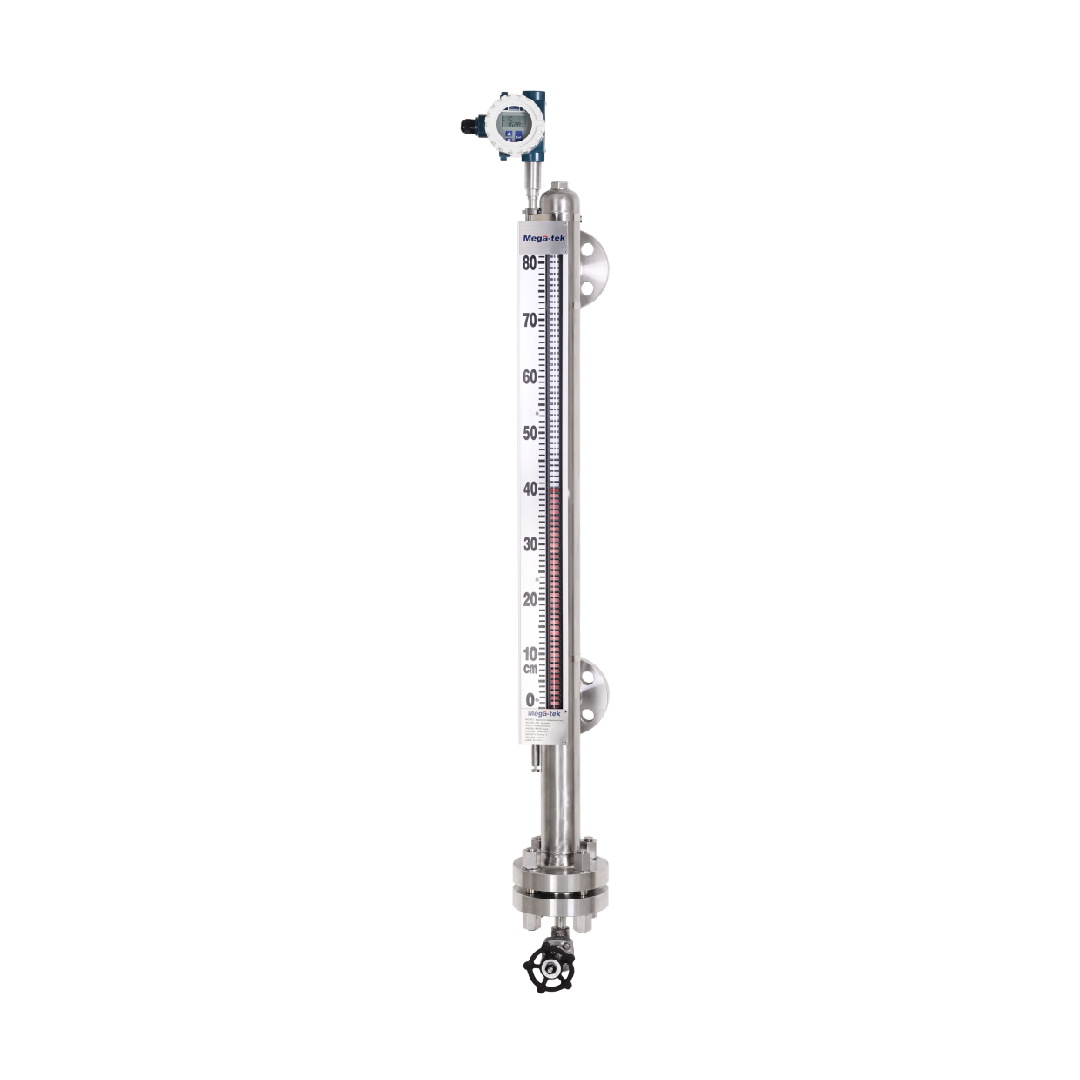

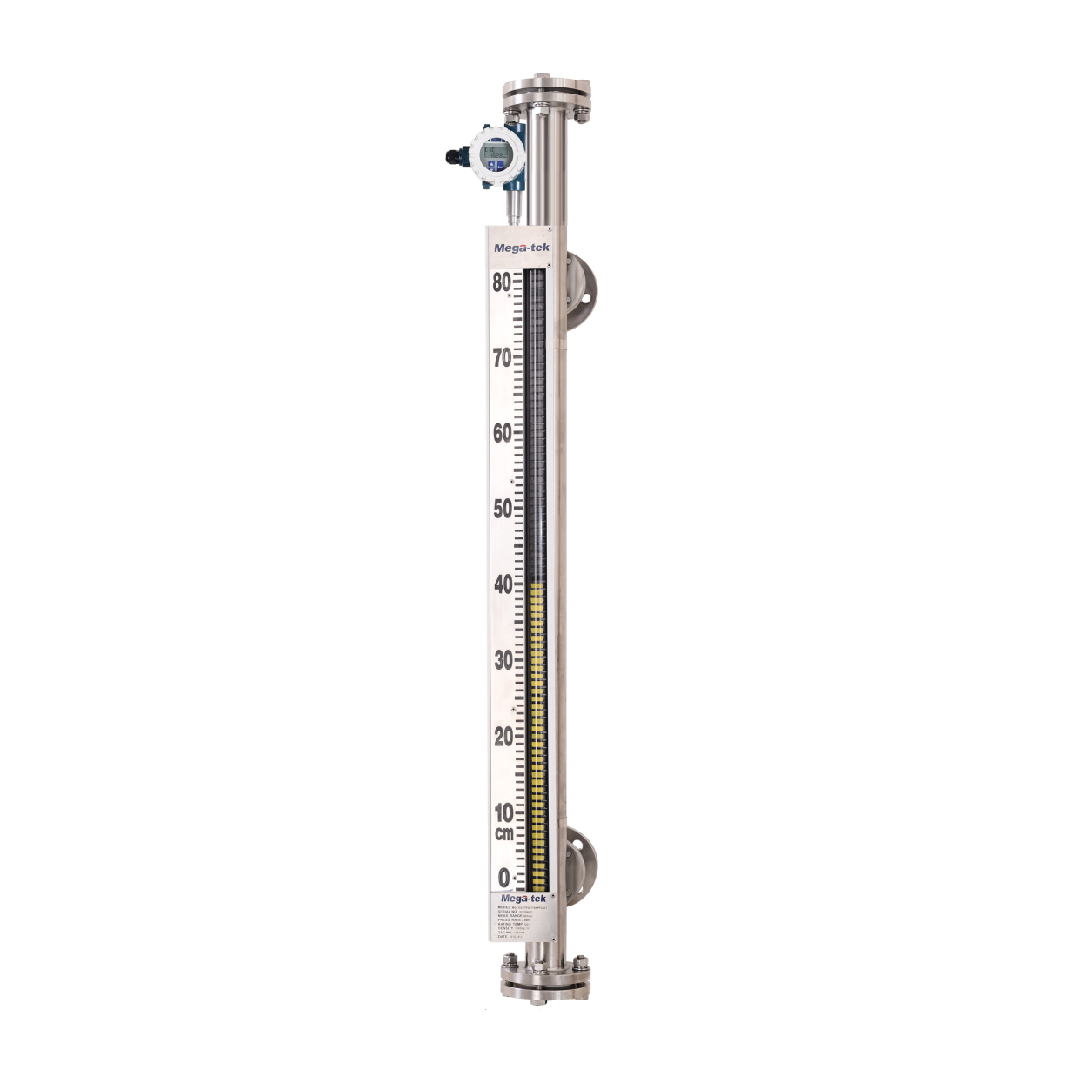

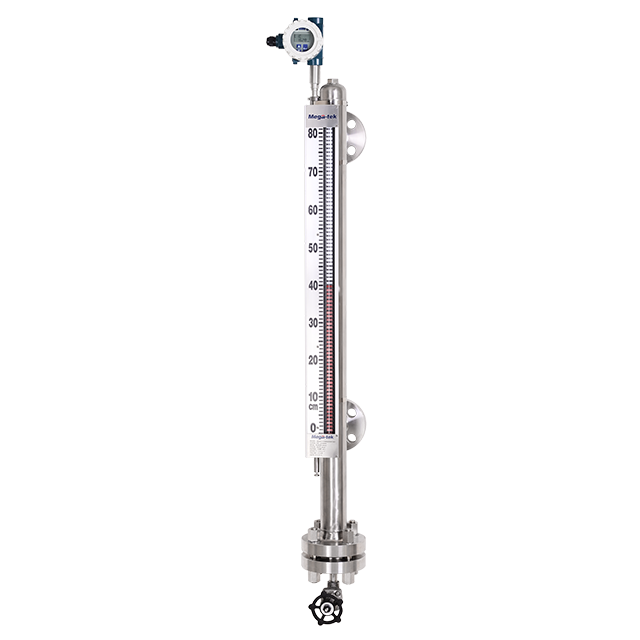

In oilfields, refineries, and storage terminals, the MG8350 provides continuous level and interface measurement for pressurized tanks and separators. The side-mounted version supports operating pressures up to 42 MPa, making it suitable for high-pressure process vessels.

Technical advantages:

• Explosion-proof and intrinsically safe certifications (FM / CSA / Ex / SIL)

• High-pressure capability up to 42 MPa

• Dual-chamber housing for enhanced safety

Chemical and Petrochemical Processes

The MG8350 is widely used in reactors, distillation towers, and chemical storage tanks. Wetted parts made of stainless steel with PTFE lining ensure long-term resistance to acids, alkalis, and aggressive chemicals.

Technical advantages:

• Corrosion-resistant wetted materials

• Interface measurement with density difference ≥ 120 kg/m³

• Damping adjustable from 0.2 to 30 s

Power Generation Systems

In thermal and auxiliary power systems, the MG8350 monitors liquid levels in feedwater tanks, condensate tanks, and auxiliary vessels. Its high stability and fast refresh rate (1 s) support precise process control.

Technical advantages:

• Measurement accuracy up to ±0.5%

• Temperature influence < 0.01%/°C

• Real-time signal transmission to DCS/PLC

Food & Beverage Processing

The MG8350 is used in storage and processing tanks where continuous level monitoring is required. Its non-contact magnetic transmission minimizes interference from bubbles and gas phases in liquids.

Technical advantages:

• Stable indication unaffected by bubbles or dielectric changes

• Output in engineering units (m, cm, mm, %)

• Reliable long-term operation

Pharmaceutical Industry

In pharmaceutical production, the MG8350 supports continuous level monitoring in reactors and storage vessels. The intelligent module design enables precise signal processing and remote configuration via HART communication.

Technical advantages:

• High signal stability and EMC protection

• Reverse polarity and RF interference protection

• Suitable for GMP-oriented process control

Metallurgy and Heavy Industry

The MG8350 is applied in cooling systems, lubricant tanks, and process vessels in metallurgical plants. Its robust probe design and wide measuring range allow adaptation to large industrial tanks.

Technical advantages:

• Measuring length up to 6000 mm

• Probe diameter 6/8″ (19.9 mm)

• Reliable operation in harsh industrial conditions

FAQ – MG8350 Magnetic Float Level Transmitter

1) What distinguishes a magnetic float level transmitter from a magnetic level gauge?

A magnetic float level transmitter not only provides local indication but also delivers continuous electrical output signals. The MG8350 converts float position into 4–20 mA and HART digital signals, enabling real-time remote transmission and integration with control systems.

2) Can the MG8350 measure both liquid level and interface level?

Yes. The MG8350 supports measurement of both single liquid levels and liquid–liquid interfaces. It is suitable for applications where the density difference between phases is ≥ 120 kg/m³, such as oil–water separation or chemical layering processes.

3) How does the MG8350 perform in fluctuating process conditions?

The MG8350 maintains stable output even under dynamic conditions such as foam, turbulence, or temperature variation. Its signal stability is enhanced by intelligent damping settings (0.2–30 s) and low temperature drift (<0.01% per °C).

4) What installation options are available for the MG8350?

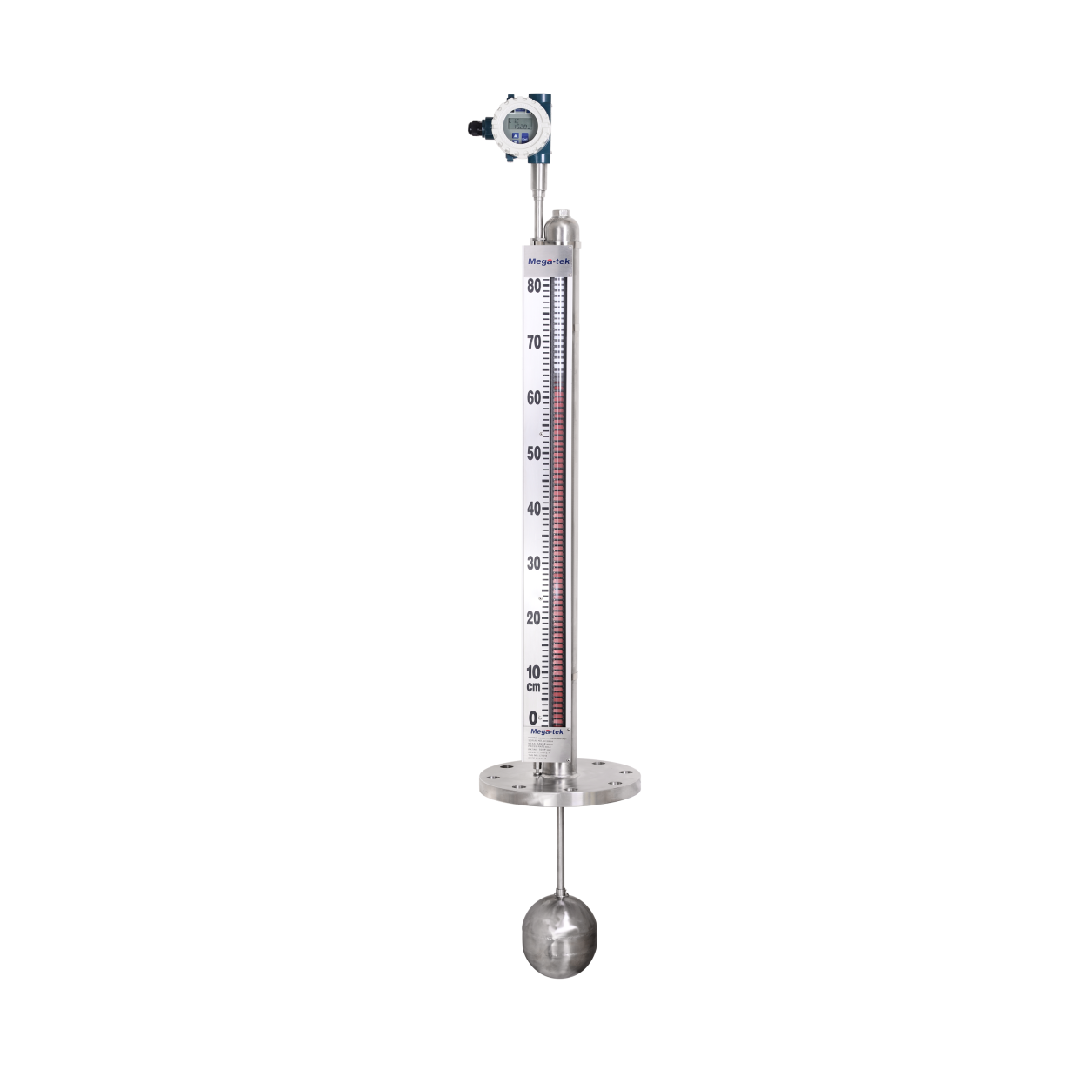

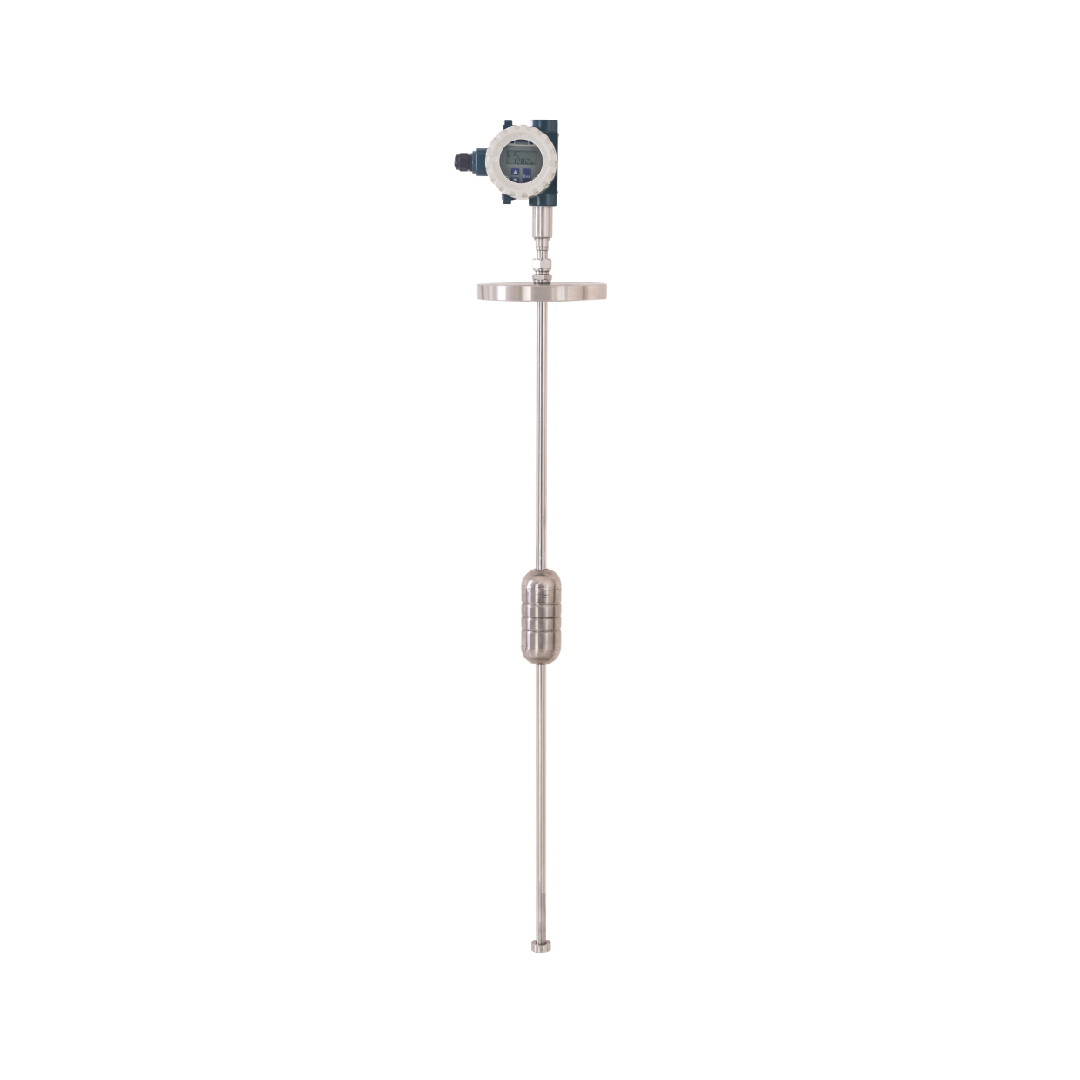

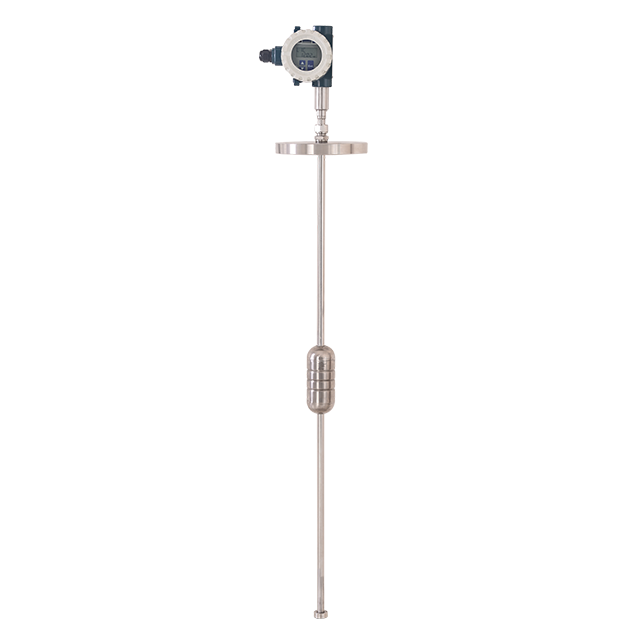

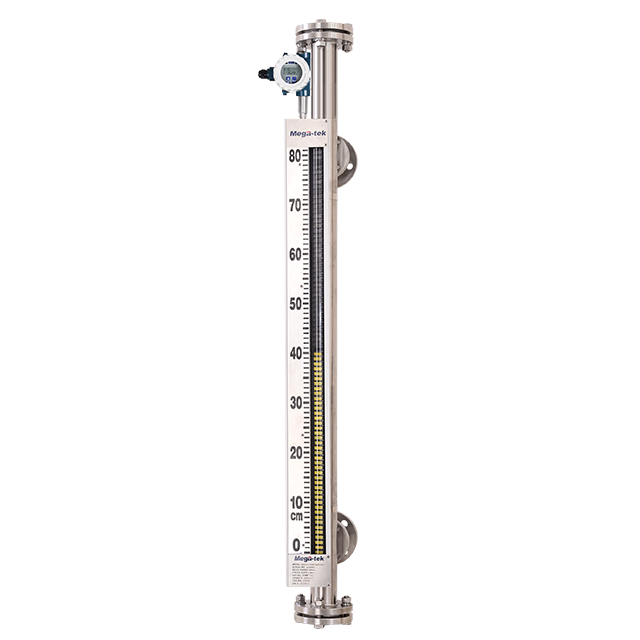

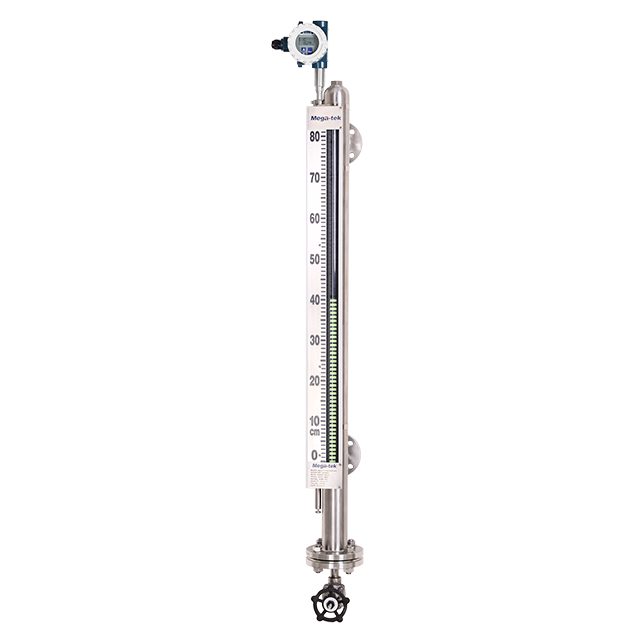

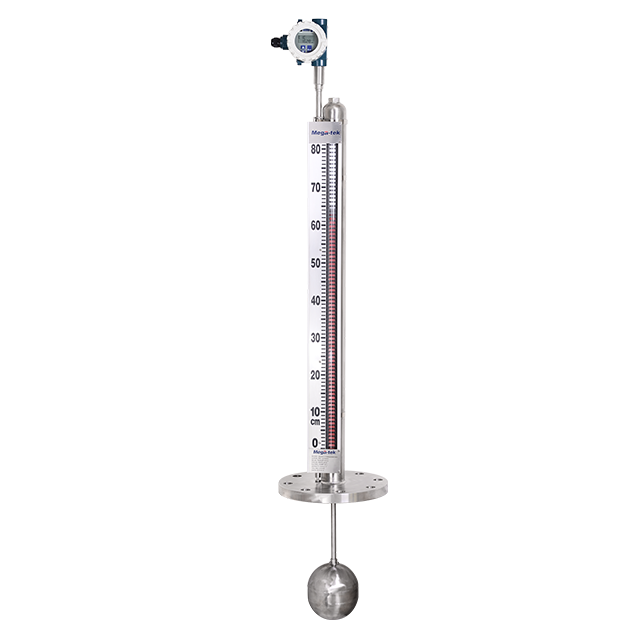

The MG8350 is available in top-mounted and side-mounted configurations, with probe lengths from 900 mm to 6000 mm, making it adaptable to tanks of different heights and geometries.

5) Is the MG8350 suitable for hazardous environments?

The MG8350 is designed for use in hazardous areas and can be supplied with certifications such as FM, CSA, Ex, and SIL. The dual-chamber housing further enhances operational safety in flammable or explosive atmospheres.

6) What level of accuracy can be expected from the MG8350?

The MG8350 achieves measurement accuracy up to ±0.5%, providing reliable continuous level data for process monitoring and control in industrial applications.

7) How does the MG8350 support long-term operation?

With corrosion-resistant wetted materials (stainless steel + PTFE lining), robust mechanical design, and non-contact magnetic coupling, the MG8350 is engineered for long-term stability with minimal maintenance requirements.
