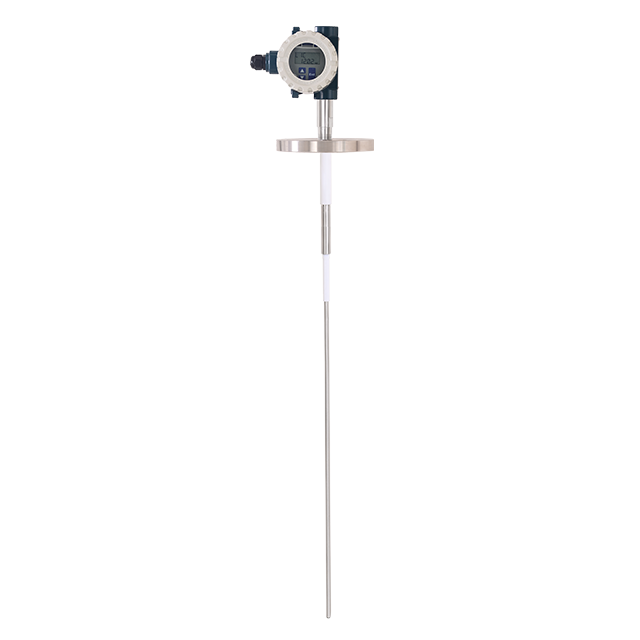

MG8650 Series
●Measure the impedance and capacitance of the hanging material at the same time, reliably solving the impact of hanging material and scale on measurement accuracy;
●The wetted parts materials are made of all stainless steel and PTFE-lined materials, which are resistant to corrosive media such as strong acids and alkalis;
●Not affected by changes in medium density and temperature;
●Modular design, without movable and disassembly parts, long service life;
●Against wiring errors protection and against radio frequency interference;
●Various installation methods, including threaded, flanged, and side-mounted, for easy operation.
| General | |
| Product | MG8650 Series Intellegent RF Admittance Level Transmitter |
| Measurement Principle | Principles of capacitance and methods of admittance measurement |
| Measuremen Parameter | Liquid level, interface, material level (powder, particles, flakes) |
| Housing Structure | Dual Chamber |
| Housing Material | High pressure cast aluminum and stainless steel |
| Cable Entry | 1/2"NPT or M20×1.5 |
| Dielectric Constant | ≥2.0 |
| Material | 316LSST, 304SST, 316SST, Titanium, 304LSST, tantalum, zirconium 702 alloy, Hastelloy C-276 alloy, 600 alloy, 400 alloy, 201 nickel, 20 alloy, Hastelloy C-22 alloy, 2507 duplex SST, PTFE lined anti-corrosion |
| Electric | |
| Power Supply | 13.5~30VDC, with polarity reverse protection |
| Output Signal | 2-wire 4~20mADC, HART |
| Fault Signal | High value alarm 21mA, low value alarm 3.6mA |
| Damping | 0.2~30s |
| Lightning Protection Device | Meet the requirements of EN61000-4-4 (GB/T17626.4) severity level 4 and EN61000-4-5 (GB/T17626.2) severity level 4 |
| Pressure | |
| Process Pressure | 0~250bar (0~25MPa) |
| Environment | |
| Process Temperature | -112~788℉ (-80~420℃) |
| Ambient Temperature | -40~176℉ (-40~80℃) |
| Storage Temperature | -40~176℉ (-40~80℃) |
| Humidity | 0~100％ Relative Humidity |
| Measuring Performance | |
| Reference Accuracy | ±0.1％ |
| Ambient Temperature Impact | The error caused by each change of 1 ℃ is less than 0.01% of the measured distance |
| Refresh Interval | Once/1s |
| Display/Indication | |
| Process Display | Display 4-20mA, Percentage, Engineering Units |
| Output Unit | ft, in, m, cm, mm |
| Probe | |
| Single Lead | Rigid Lead 20~236" (500~6000mm), Flexible Lead 20~1968" (500~50000mm) |
| Twin Lead | Rigid Lead 20~236" (500~6000mm), Flexible Lead 20~1968" (500~50000mm) |
| Coaxial | Rigid Lead 20~236" (500~6000mm), Flexible Lead 20~787" (500~20000mm) |
| Side-side Mount | Rigid Lead 20~236" (500~6000mm), Flexible Lead 20~236" (500~6000mm) |
| Hazardous Locations Certifications | |
| FM | Factory Mutual (FM) Approvals |
| CEX | Explosion Proof |
| CEI | Intrinsic Safety |
| CSA | Canadian Standards Association Certification |
| IEI | IS International Electromechanical Committee |
| SIL | SIL Certification |
| Mechanical | |
| Tensile Strength | Flexible Single Lead: 0.2" (5mm) 3100lb (14kN) Flexible Twin Lead: 0.2" (5mm) 2210lb (10kN) |
| Collapse Load | 3755lb (17kN) |
| Wetted Material | 316LSST, 304SST, PTFE, 316SST, Titanium, Hastelloy C-276 alloy, Montessori alloy, Graphite material, etc |
| Thead | Thread 3/4"NPT |
| Sealing | Factory Sealing |
| Ingress Protection | IP67/IP68 |
| EMC | If the probe is inside a metal container or guide tube, it complies with EN61326-1 (1997), the revised clause specifically for use in the workplace, specifically for Class A1A equipment. |
The following are the application scenarios of MG8650 RF admittance level transmitter
●Pulp and Paper Industry
●Electric Power Industry
●Chemical and Petroleum Industry
●Petroleum and Natural Gas Industry
●Food and Beverage Industry
●Water Treatment and Sewage Treatment
●Pharmaceutical Factory
●Machinery and Metallurgical Industry
