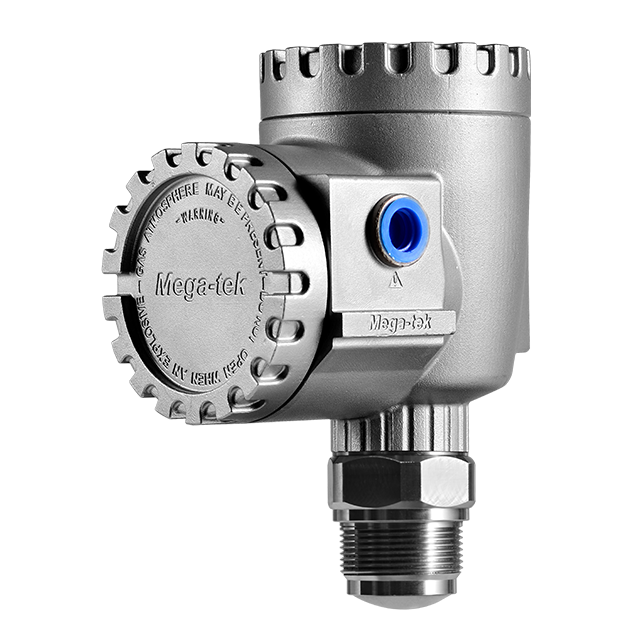

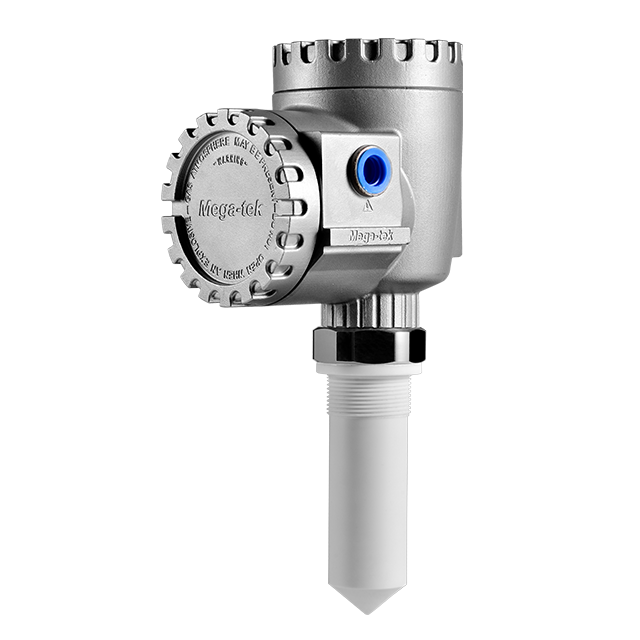

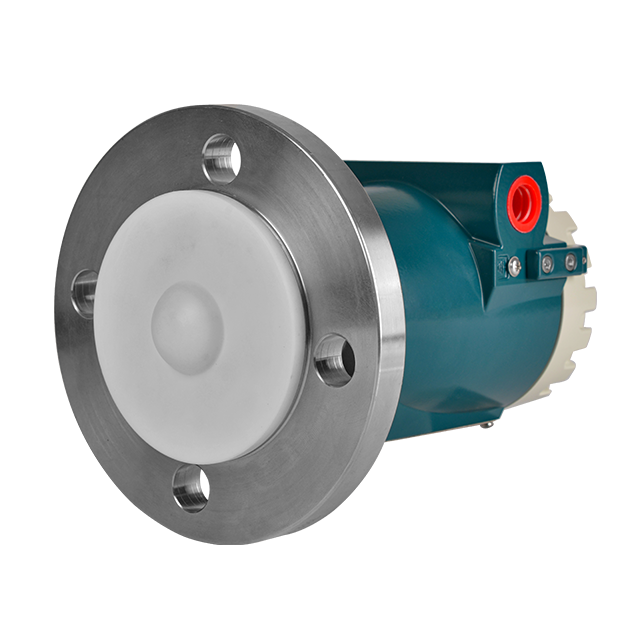

MG8900 Series
● The graphical local interface (LUI) makes the operation easy to understand, and the quick start wizard is used to realize the plug and play settings. LUI display echo image is used for diagnosis;
● Communication by HART or PROFIBUS-PA;
● The minimum blind area is only 50mm to the end of the horn;
● It applies to large range (100m) and harsh working conditions;
● Simple collimator improves signal quality from inclined solid surface;
● 120GHz high frequency allows small speakers to be installed on small mounting tubes;
● On site intelligent signal processing improves measurement stability, and automatic false echo suppression function eliminates fixed interference.

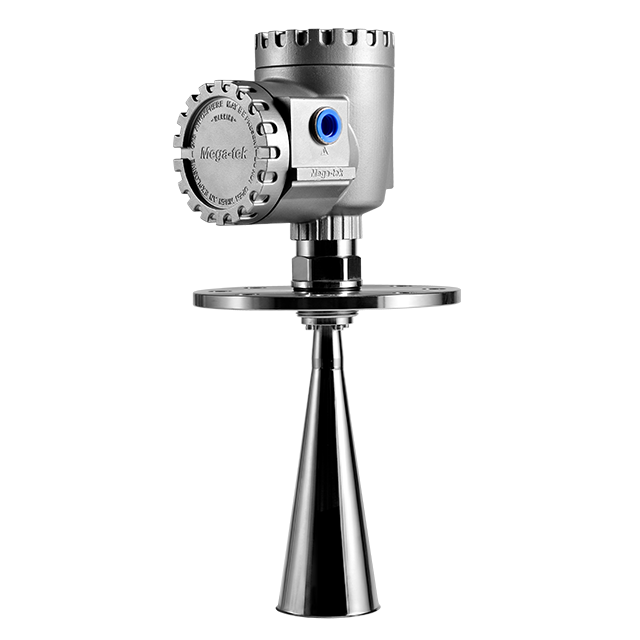

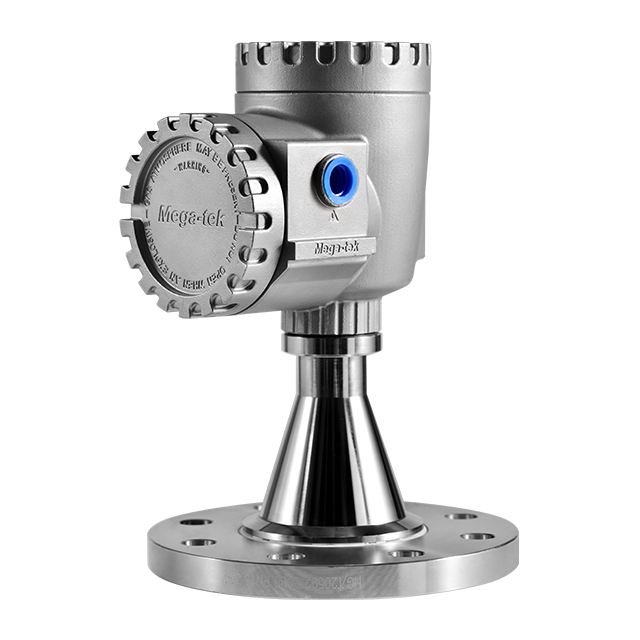

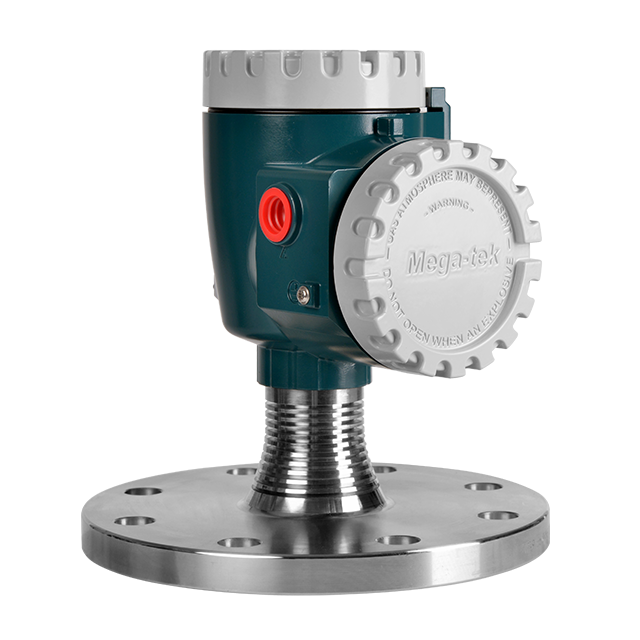

| MG8925 High Frequency Liquid Radar Transmitter | MG8926 High Frequency Solid Radar Transmitter | MG8950 High Frequency Liquid/ Solid Radar Transmitter |
| Conditions of liquid, stirred storage tank, process tank, crystallization, dewing liquid with vapor or high temperature, low dielectric constant | Solid silo, large range strong powder solid silo | In conditions of strong powder, steam, multiple agitation, high temperature and high pressure reactor, large range can ensure high precision |
500~20000mm 500mm to the end of the horn | 500mm to the end of the horn 2" horn: 10000mm 3" horn: 20000mm 4" horn: 30000mm Parabolic antenna: 70000mm | 350~150000mm |
| Dielectric constant ε > 1.6 Depending on horn antenna and application requirements | Dielectric constant ε > 1.6 | Dielectric constant ε > 1.4 |
| 26.0GHz | 26.0GHz | 800Hz (Beam angle 3”) |
| Accury ±3mm | Accuracy ±10m | Accuracy ±1mm |
| Maximum to 40 bar, based on diffrent proess connecfion and antenna type | Maximum to 32MPa | |
| Environment temp.: -40~80℃ Process temp.: -40~260℃ Depending on the antenna type | Environment temp.: -40~85℃ Process temp.: -196~1200℃ | |
| 4～20mA/HART RS485, FF PROFIBUS-DP, PROFIBUS-PA | ||
| 4～20mA Return Circuit 24～30VDC (The minimum voltage depends on the total circuit) 220VAC (Optional) | ||
| Graphical on-site interface, including quick start wizard and echo map display | ||
| 2*M20x1.5 or 2*1/2NPT | ||

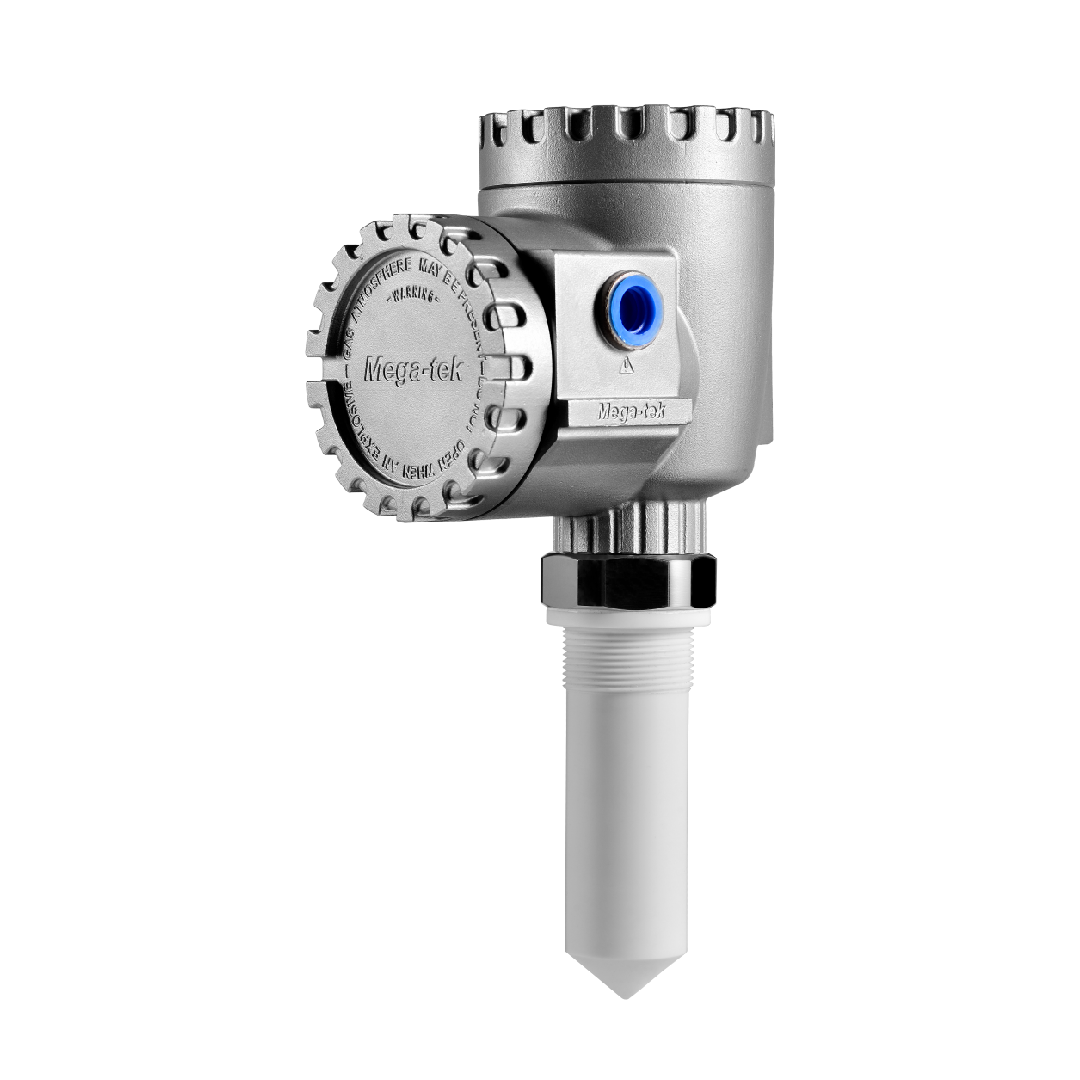

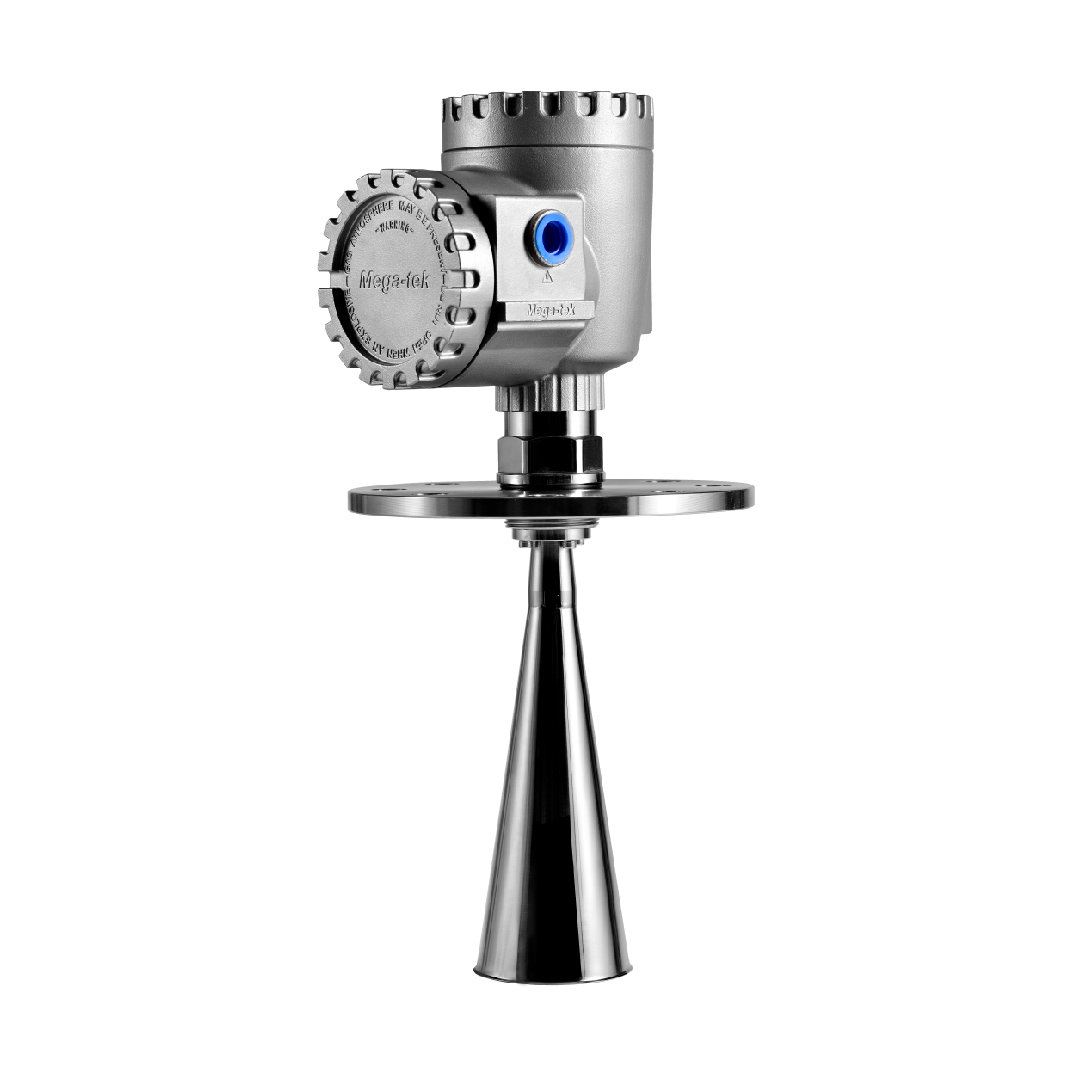

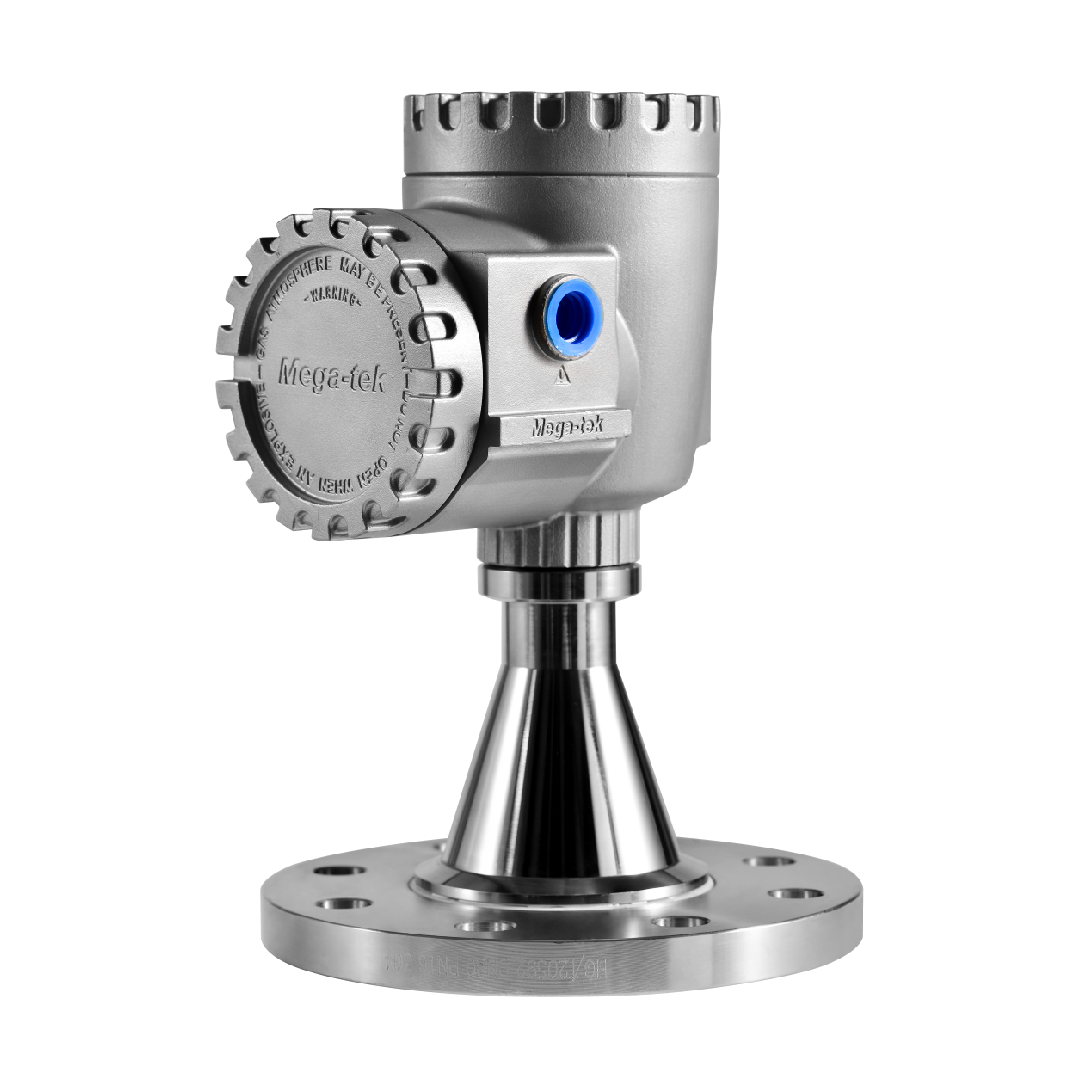

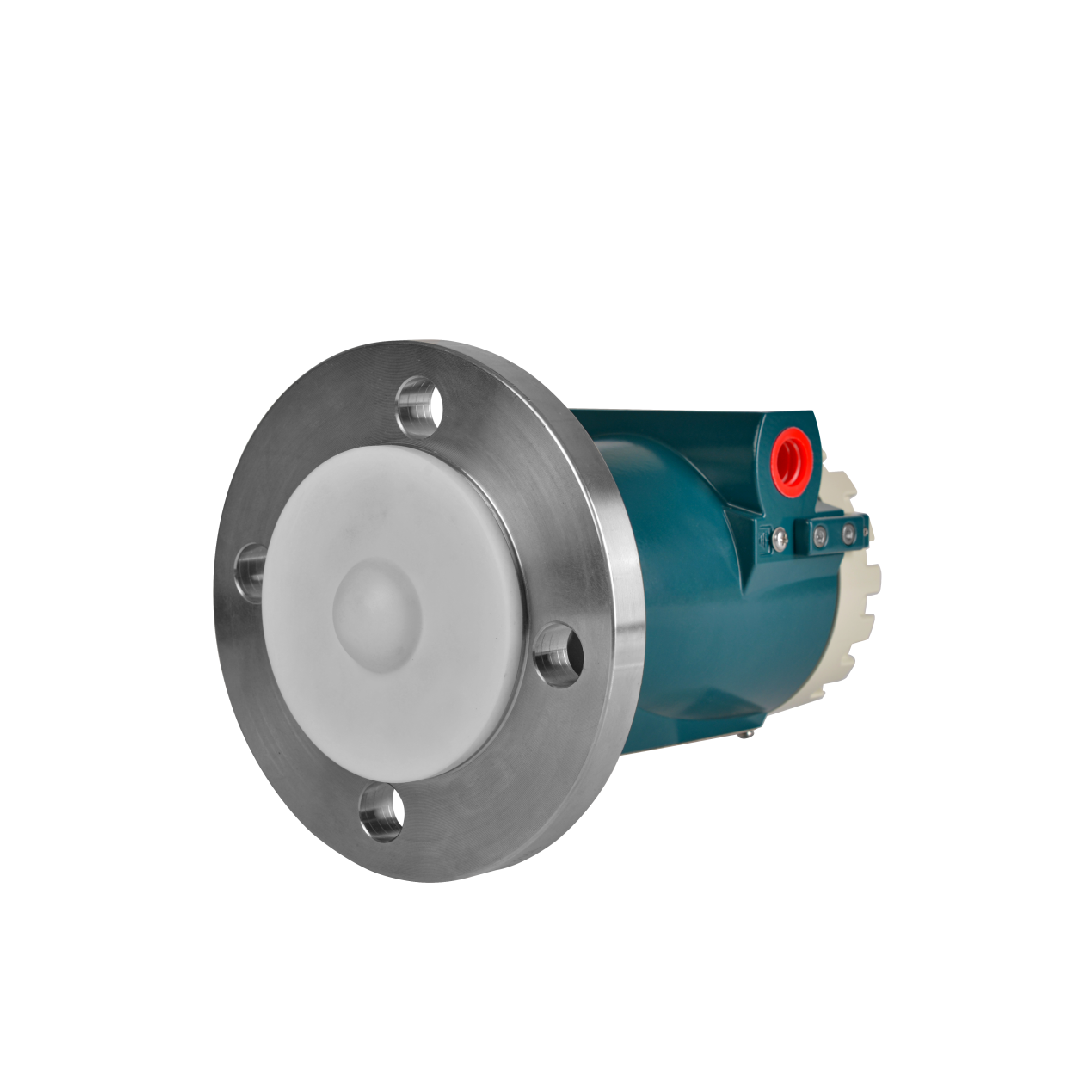

| The rod antenna is used for small diameter, small tank and corrosion occasions The horn antenna is used under normal working conditions The plane antenna is used for anti-corrosion, steam, dewing large tanks, etc The plane antenna is used for anti-corrosion, steam, dewing large tanks, etc Flange: 304 or customized Size (normal horn size): 1.5" (40mm), 2" (49mm), 3" (75mm), 4" (98mm) | Universal flange, purging and dust cover can be equipped Flange: 304 or customized Size (normal horn size): 1.5" (40mm) 2" (49mm) 3" (74.5mm) 4"(97.5mm) | Horn Lens Antenna Water-drop Lens Antenna High temp. convex lens antenna |
1-1/2"NPT or 2"NPT Genneral flange specifications: 2" (50mm), 3" (80mm) | Genneral flange specifications: 2" (50mm) 3" (80mm) 4" (100mm) | M48*2, M20*1.5 Genneral flange specifications: 2" (50mm), 3" (80mm) 4" (100mm), 6" (150mm) |
| IP67 | ||
| Explosion-proof, Intrinsically Safe, Dust Ignition Protection | ||
The following are the application scenarios of MG8900 non-contact radar transmitter
● Pulp and Paper Industry
● Chemical and Petroleum Industry
● Oil and Gas Industry
● Pharmaceutical Factory
● Food and Beverage Industry
● Water Treatment and Sewage Treatment
● Electric Power Industry
● Machinery and Metallurgical Industry
