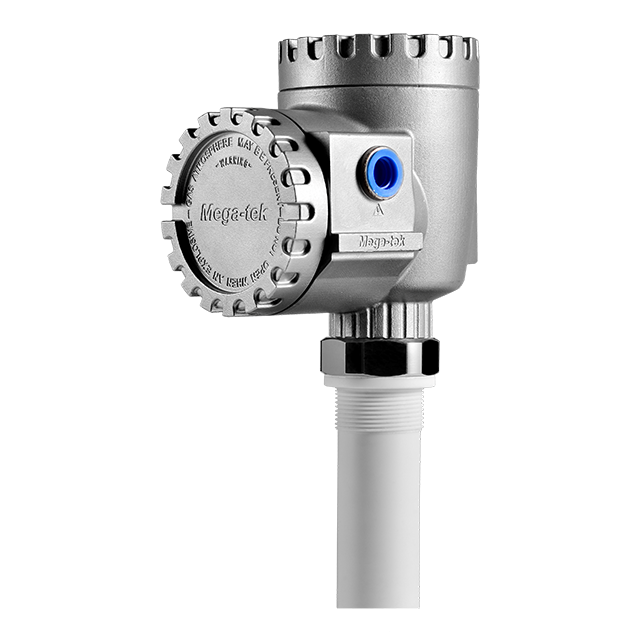

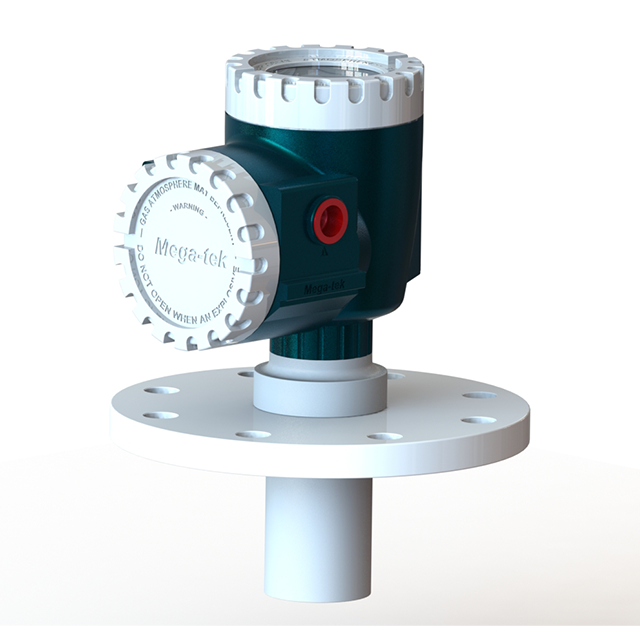

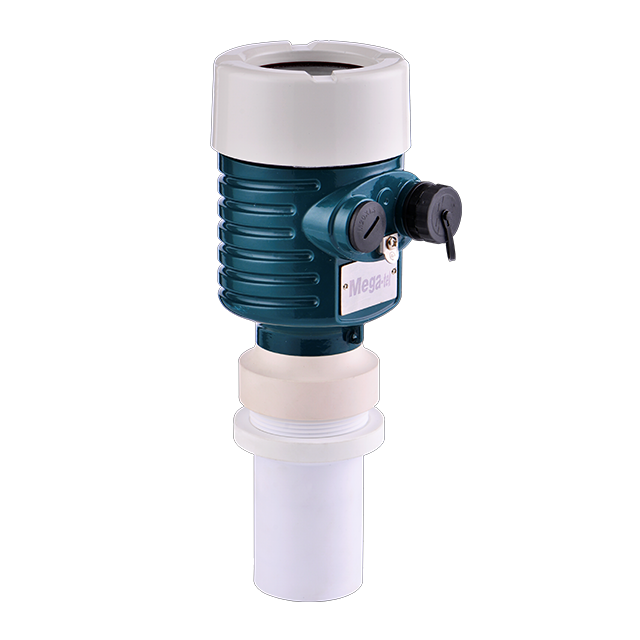

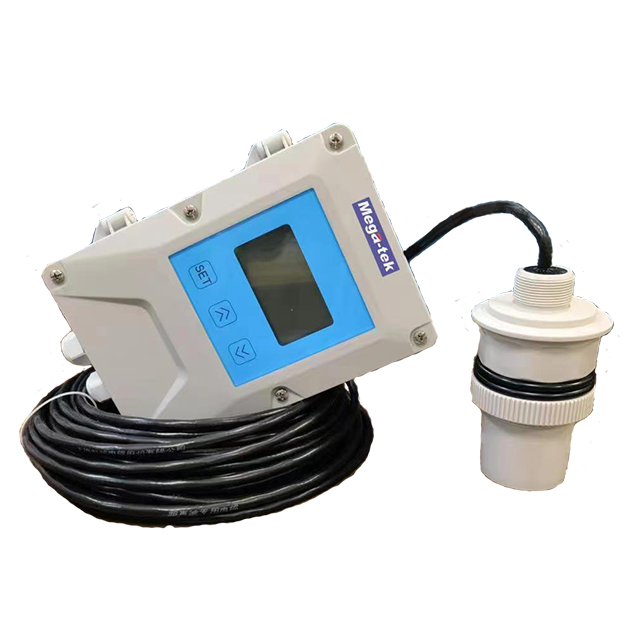

MG8750 Series
●Suitable for liquids, slurries, particles, powders, flakes, high viscosity, easily crystalline hanging media, and mixed media;
●No drift, unaffected by changes in medium density and dielectric constant;
●Strong corrosion resistance, the contact liquid is made of polytetrafluoroethylene material, and it is resistant to corrosive media such as strong acids and alkalis;
●The measurement range is large, and the range of 0.3-30m can be freely selected;
●Calibration is simple and convenient, with button or HART manual operator;
●Not affected by bumps, vibrations, stirring, etc;
●Long lifespan, intelligent module, and movable components without disassembly and wear, ensure the long lifespan of instrument;
●The installation is simple and convenient, and can be installed through the threaded port and flange on the container, making the operation fast, convenient, and reliable;
●Replace the following instruments on site: buoy type, optical guide type, nuclear type, etc.
| General | |
| Product | MG8750 Series Untrasonic Level Transmitter |
| Measuring | Liquid Level, Liquid Interface, Solid Level |
| Housing Structure | Single Chamber |
| Housing Material | High pressure cast aluminum or stainless steel |
| Beam Angle | 5°~12° (The size of the launch angle is directly proportional to the ranging ability) |
| Cable Entry | 1/2"NPT or M20×1.5 |
| Installation Mode | Top mounted (Thread, flange, bracket) |
| Electrical | |
| Power Supply | 24VDC or 220VAC with polarity reverse protection |
| Output Signal | 2-wire 4~20mADC, HART |
| Damping | 0.2~36s |
| Lightning Protection Device | Meet the requirements of EN61000-4-4 (GB/T17626.4) severity level 4 and EN61000-4-5 (GB/T17626.2) severity level 4 |
| Environment | |
| Process Temperature | -40~158℉ (-40~100℃) |
| Ambient Temperature | -40~158℉ (-40~80℃) |
| Storage Temperature | -40~158℉ (-40~80℃) |
| Humidity | 0~100％ Relative humiduty |
| Process Pressure | 0~3bar (0~0.3MPa) |
| Measuring Performance | |
| Level Accuracy | ±0.2％ |
| Ambient Temperature Impact | The error caused by each change of 1 ℃ is less than 0.01% of the measured distance |
| Level Resolution | When measuring distance < 10m: 1mm; When measuring distance ≥ 10m: 10mm |
| Blanking Distance (Dead Zone) | 0.25~1.0m, the size of the dead zone is proportional to the ranging ability |
| Display/Indication | |
| Proccess Display | 4~20mA, Percentage, Engineering Units |
| Output Units | ft, in, m, cm, mm |
| Measurement Range | |
| Measurement Range | 0~2362" (0~30m) |
| Probe Material | |
| Standard Type | Nylon |
| Anti Corrosion Type | PVDF, PTFE |
| Low Temperature Type | The probe with automatic defrosting function is suitable for use in cold northern regions, which can prevent the probe from frosting and unable to measure normally |
| Hazardous Location Certification | |
| CEX | Explosion proof |
| CEI | Intrinsically safe |
| Mechanical | |
| Thread | Thread G2A, M82×2, M45×1.5 |
| Sealing | Factory sealing |
| Ingress Protection | IP67/IP68 |
| EMC | If installed in a metal container or stationary tube, in accordance with EN61326-1 (1997), the revised provisions specifically for Class A1A equipment in the workplace. |
The following are the application scenarios of MG8750 Ultrasonic Level Transmitter:
●Water treatment and sewage treatment
●Food and Beverage Industry
●Chemical and Petroleum Industries
●Oil and Gas Industry
●Pulp and Paper Industry
●Pharmaceutical Factories
●Electric Power Industry
●Mechanical and Metallurgical Industries
