MG8800 Series
● Piezomagnetic sensor, a piezomagnetic sensor with a long magnetic distance of >45mm;
● High accuracy, the highest resolution is 0.2mm;
● Specially designed automatic gain control and liquid level following function to process signals to solve the data jumping caused by liquid level fluctuations or interference;
● Built-in on-board oscilloscope function for intelligent diagnosis;
● LCD screen, displaying histogram, current value, engineering unit, percentage value simultaneously;
● Measuring liquid level and interface, integrating remote transmission and local indication;
● Simple calibration, key operation, and calibration only once, no need to adjust repeatedly;
● The data is automatically read and stored when replacing the circuit module, and calibration is not required;
● Double-chamber explosion-proof isolation, safe and convenient operation;
● The wetted parts are acid-resistant, alkali-resistant, and PTFE-lined materials, which are suitable for strong acid and strong alkali corrosive media;
● Replace the traditional torsion tube electric float level gauge and differential pressure level gauge.
| General Specifcation | |

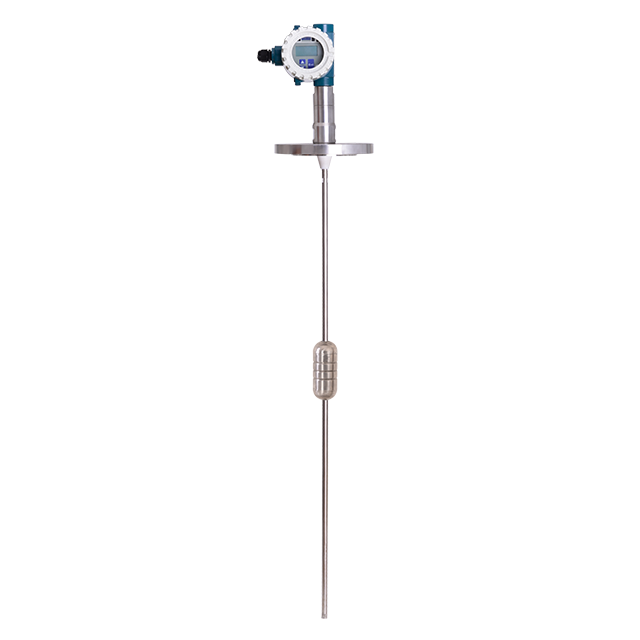

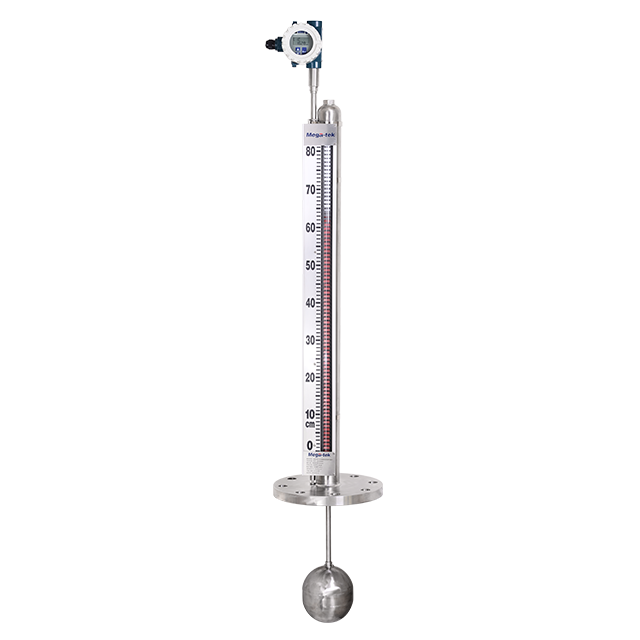

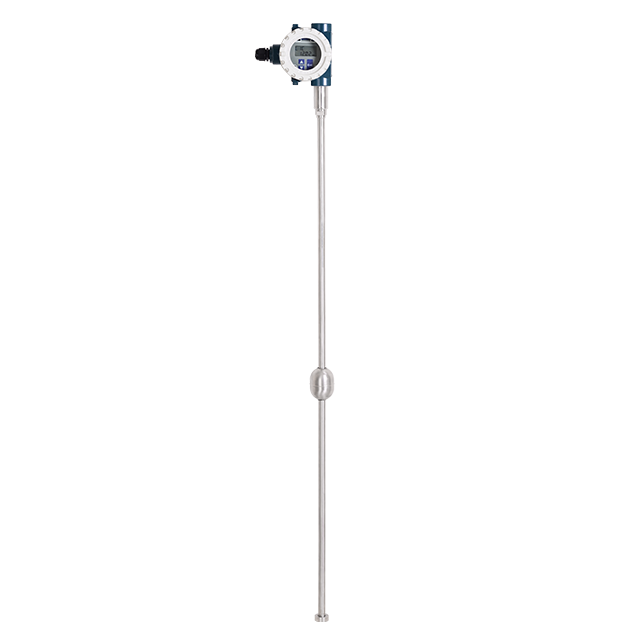

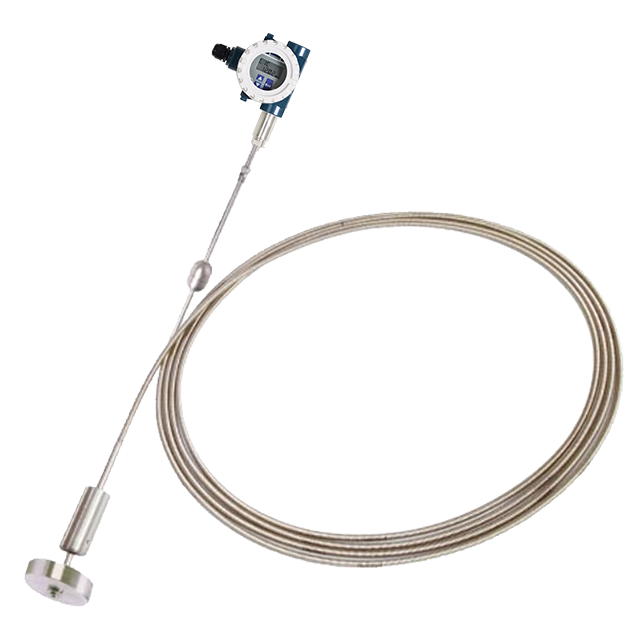

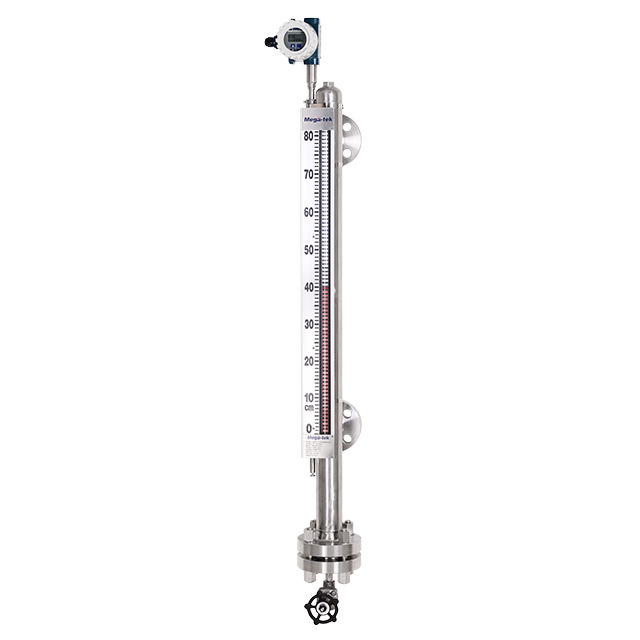

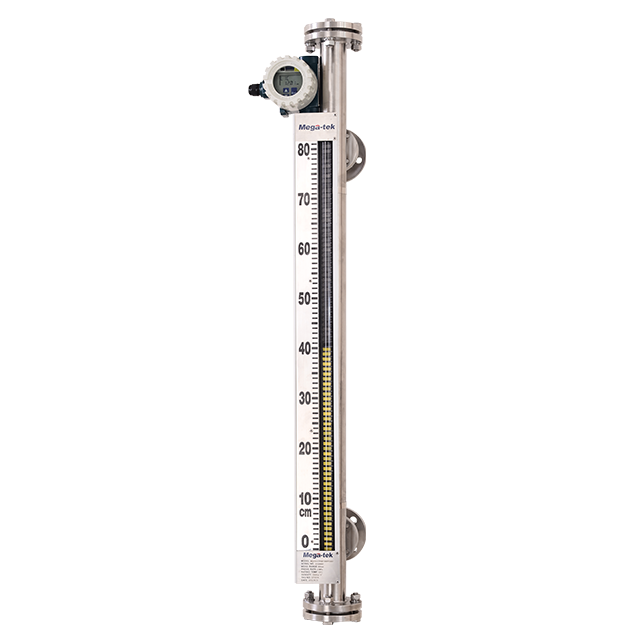

| Product | MG8800T Top-Mounted Magnetostrictive Level/Interface Transmitter MG8800L Side-Mounted Bundle Magnetostrictive Level/Interface Transmitter MG8800B Buoy Level/Interface Transmitter MG8800C Top-Mounted Bundle Magnetostrictive Level/Interface Transmitter MG8800D Double Chamber Magnetostrictive Level/Interface Transmitter MG8800M Muti-Parameter Magnetostrictive Level/Interface Transmitter |
| Measurement Parameters | Liquid Level, Interface |
| Case Material | High pressure cast aluminum or stainless steel |
| Media Density | Liquid Level 450~1350Kg/m³ Poor Interface 120~890Kg/m³, Other density need to inquiry factories |
| Media Viscosity | ≤0.4Pa·S |
Cable Entry | 1/2"NPT or M20×1.5 |
| Materials | 316LSST, 304SST, 316SST, Titanium, 304LSST, Tantalum, Zirconium 702 Alloy, HastelloyC-276 Alloy, 600 Alloy, 400 Alloy, 201 Nickel, 20 Alloy, HastelloyC-22 Alloy, 2507 Biphasic SST, anticorrosive equipment lined with teflon |
| Case Struction | Dual-Chamber |
| Electronic | |
| Input Voltage | 13.5~30VDC, Protection Against Reverse Polarity |
| Output Signal | Two-Wire System 4～20mADC, HART, FF |
| Fault Signal | High Alarm 21mA, Low Alarm 3.6mA |
| Damping | 0.2~30 Seconds |
| Lightning Protection Device | Content EN61000-4-4 (GB/T17626.4) Severe level 4 and EN61000-4-5 (GB/T17626.2) Severe level 4 |
| Environment | |
| Process Temp. | MG8800T -320~300℉ (-196~149℃) MG8800L -320~1000℉ (-196~538℃) MG8800B -320~1000℉ (-196~538℃) MG8800C -320~851℉ (-196~455℃) MG8800D -320~1000℉ (-196~538℃) MG8800M -320~300℉ (-196~149℃) |
| Environment Temp. | -40~176℉(-40~80℃) |
| Storage Temp. | -40~176℉(-40~80℃) |
| Humidity | 0~100% relative humidity |
| Pressure | |
| Process Press. | MG8800T 0~100bar (0~10MPa) MG8800L 0~420bar (0~42MPa) MG8800B 0~420bar (0~42MPa) MG8800C 0~25bar (0~2.5MPa) MG8800D 0~420bar (0~42MPa) MG8800M 0~100bar (0~10MPa) |
| Measurement Performance | |
| Measurement Accuracy | ± 0.01% |
| Affected by the ambient temperature, the error caused by each change of 1℃ is less than 0.01% of the measured distance. The refresh interval is once per second | |
| Indicator/Field Indicate | |
| Process Display | Display 4~20mA, Percentage, Construction Signal, Temperature Signal |
| Output Unit | ft, in, m, cm, mm |
| Field Indicate | Flip Indicator (MG8800T, MG8800M, MG8800B No Indicate) |
| Probe | |
| Probe Length | MG8800T Outer Diameter 16mm, Probe Length 35"~236" (900~6000mm); Soft Cable Probe Length 35"~787" (900~20000mm) MG8800L Outer Diameter 16mm, Probe Length 35"~236" (900~6000mm) MG8800B Outer Diameter 16mm, Probe Length 35"~236" (900~6000mm) MG8800C Outer Diameter 16mm, Probe Length 35"~137" (900~3500mm) MG8800D Outer Diameter 16mm, Probe Length 35"~236" (900~6000mm) MG8800M Outer Diameter 24mm, Probe Length 35"~236" (900~6000mm) |
| Explosion-Proof Certification | |
| FM | Factory Mutual (FM) Approvals |
| CEX | Explosion proof |
| CEI | Instinsically Safe Explosion Proof |
| CSA | Canadian Standards Association Certification |
| IEI | IS International Electromechanical Committee |
| GR | GOST Certification |
| SIL | SIL Certification |
| Machanical | |
| Wetted Body Material | 316LSST, 304SST, PTFE, 316SST, Titanium, HastelloyC-276 Alloy, Monel Alloy, Graphite materialetc. |
| Thread | Threaded Connection 3/4"NPT Adjustable Compressing Threads |
| Ingress Protection | IP67/IP68 |
| Electromagnetic | If the probe is installed in a metal container or guide tube, it complies with EN 61326-1 (1997), a revised clause dedicated to Operational Premises for Class A1A equipment |
The following are the application scenarios of MG8800 magnetostrivtive level/interface transmitter
● Chemical and Petroleum Industries
● Oil & Gas Industry
● Pulp and Paper Industry
● Pharmaceutical Factories
● Food & Beverage Industry
● Water Treatment and Sewage Treatment
● Electric Power Industry
● Machinery and Metallurgical Industry
