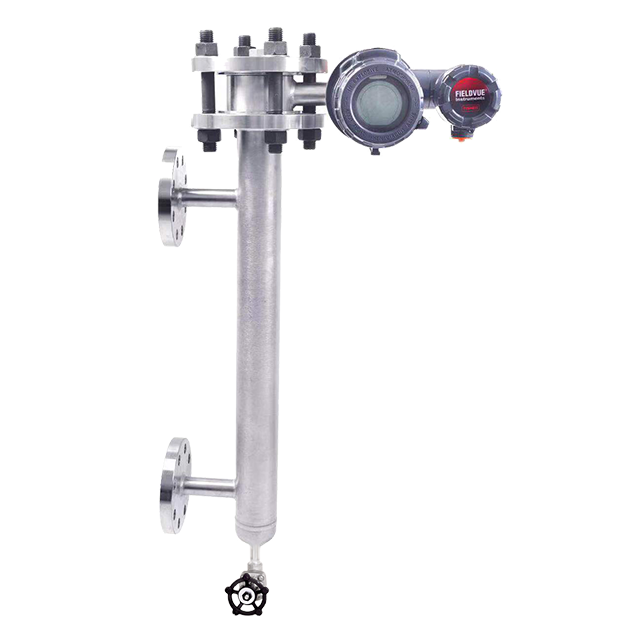

MG8730 Series
●The fully intelligent module linearizes the measurement output, compensates for errors, adjusts damping, and self diagnoses faults;
●Automatically compensate for density changes caused by temperature fluctuations;
●Easy calibration, medium calibration and dry calibration;
●Multi parameter measurement, measuring the liquid level, interface, and density of the medium;
●Easy calibration, button calibration or HART box calibration;
●Dual chamber housing, circuit module and terminal isolation, easy to operate, safe and reliable;
●Resistant to transportation bumps, installation collisions, electronic modules resistant to vibration and moisture;
●Protection against misconnection, lightning strikes, and radio frequency interference.
| GENERAL SPECIFICATIONS | |
| Product | MG8730 series Intelligent Displacer Level/Interface Transmitter |
| Parameters | Level/Interface |
| Housing Structure | Dual Chamber |
| Housing Material | High pressure cast aluminum coated with polyurethane or stainless steel |
| Media Density | Level 450~1350Kg/m3 Interface 120~890Kg/m3 |
| Viscosity | ≤0.15Pa·S |
| Cable Entry | 1/2"NPT or M20×1.5 |
| LOCAL DISPLAY | |
| Process Display | 4~20mA, percentage, Programme Unit |
| Output Unit | ft, in, m, cm, mm |
| ELECTRIC | |
| Input Voltage | 12~30VDC, protection against polarity misconnection |
| Output Signal | 2-wire 4~20mADC, HART |
| Default Signal | High-alarm 21mA, Low-alarm 3.6mA |
| Damping | 0.2~30 Seconds |
| Lightning Protection Device | Meet the requirements of EN61000-4-4 (GB/T17626.4) severity level 4 and EN61000-4-5 (GB/T17626.2) severity level 4 |
| ENVIRONMENT | |
| Operation Temperature | -311~842℉ (-196~450℃) |
| Ambient Temperature | -40~176℉ (-40~80℃) |
| Storage Temperature | -40~176℉ (-40~80℃) |
| Humidity | 0~100％ Relative humidity |
| PRESSURE | |
| Operation Pressure | 0~320bar (0~32.0MPa) |
| MEASUREMENT PERFORMANCE | |
| Accuracy | ±0.5％ |
| The error caused by each change of 1 ℃ is less than 0.01% of the measured distance | |
| Refresh Interval | Once/1s |
| Measurement range | 11.8~118" (300~3000mm) |
| HAZARDOUS LOCATION CERTIFICATIONS | |
| FM | Factory Mutual (FM) Approvals |
| CEX | Explosion Proof |
| CEI | Intrinsic Safety |
| CSA | Canadian Standards Association Certification |
| IEI | IS International Electromechanical Committee |
| SIL | SIL Certification |
| MACHANISM | |
| Wetted Material | 316LSST, 304SST, Hastelloy C-276, Montessori alloy, Graphite material, etc |
| Sealing | Factory Sealing |
| Ingress Protection | IP67/IP68 |
| EMC | If the probe is inside a metal container or guide tube, it complies with EN61326-1 (1997), the revised clause specifically for use in the workplace, specifically for Class A1A equipment. |
The following are the application scenarios of MG8730 Intelligent Displacer Level/Interface Transmitter:
●Water Treatment and Sewage Treatment
●Electric Power Industry
●Chemical and Petroleum Industries
●Oil and Gas Industry
●Pulpand Paper Industry
●Food and Beverage Industry
●Mechanical and Metallurgical Industry
●Pharmaceutical Factory
