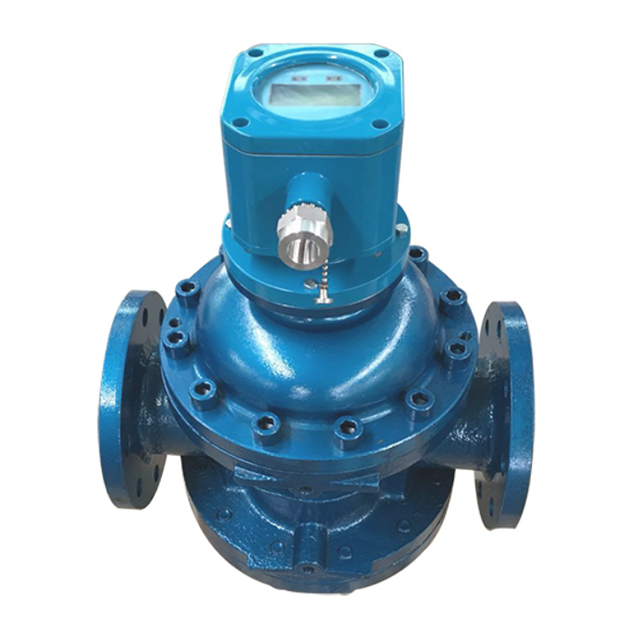

MG9860 Series
●No pulsation, extremely low noise, high precision and high reliability;
●High precision (±0.5%, Max±0.2%), good repeatability;
●Wide measuring range, less pressure loss;
●Strong viscosity adaptability, it can measure the liquid high temperatureand highviscosity;
●Stable performance;
●Various counters, governors and external fine-tuners can be configured.
| General Specifictions | |
| Product Name | MG9860 Duplex Rotor Flowmeter |
| Measuring Medium | Various high-viscosity liquids (diesel, heavy oil, etc.), chemical raw materials, syrups, edible oils, etc. |
Casing Structure | Double cavity |
| Casing Material | High pressure cast aluminum |
| Body Material | Stainless steel, cast steel |
Rotor Material | Stainless steel, cast iron |
Cable Entry | 1/2"NPT, M20×1.5 |
| Electric | |
Power Supply | 24VDC, Battery powered |
Output Signal | Electric current, HART, Modbus |
Explosion Proof | Ex ia IIC T6 Ga, Ex d IIC T6 Gb |
Temperature | |
| Process Temperature | -20℃~250℃ |
Ambient Temperature | -41℃~+60℃ |
| Humidity | 0~95％ Relative humidity |
| Pressure | |
Process Pressure | 0~10MPa |
| Measurement Performance | |
| Accuracy | ±0.5%, ±0.3％, ±0.2％ |
| Range | Flow: 0~900m3/h |
| Repeatability | ±0.05% of measured value |
| Mechinery | |
Structure Type | All-in-one |
Caliber | DN25~DN350 |
Flange | Cast steel, stainless steel |
| Sealing | Factory Sealed |
| Ingress Protection | IP65 |
The following are the application scenarios of MG9860 Duplex Rotor Flowmeter
●Chemical and Petroleum Industry
●Chemical fiber Industry
●Transportation
●Pharmaceutical Industry
●Food and Beverage Industry
●Ships, oil depots, docks
●Power Industry
●Mechanical and Metallurgical Industry
