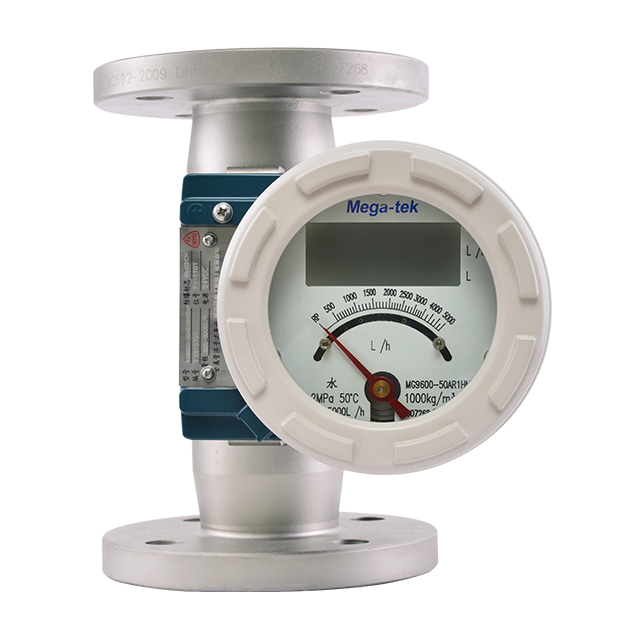

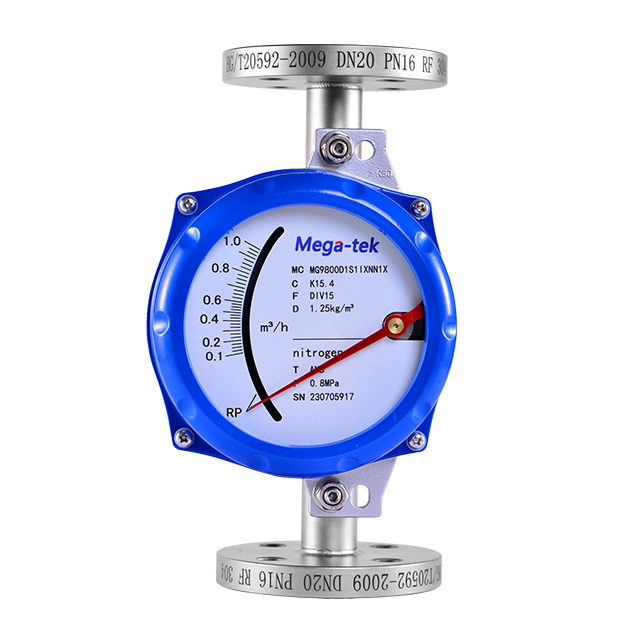

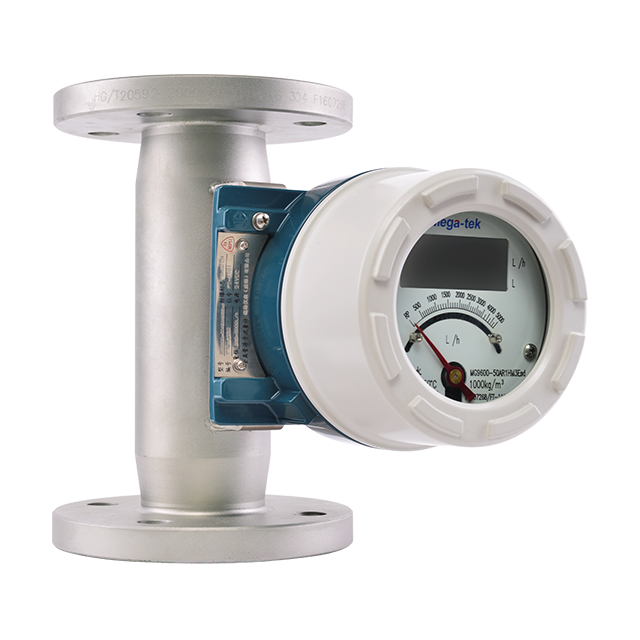

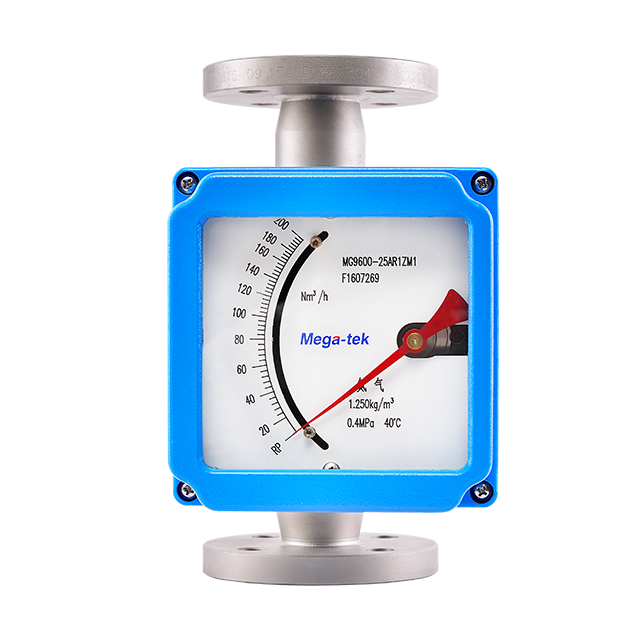

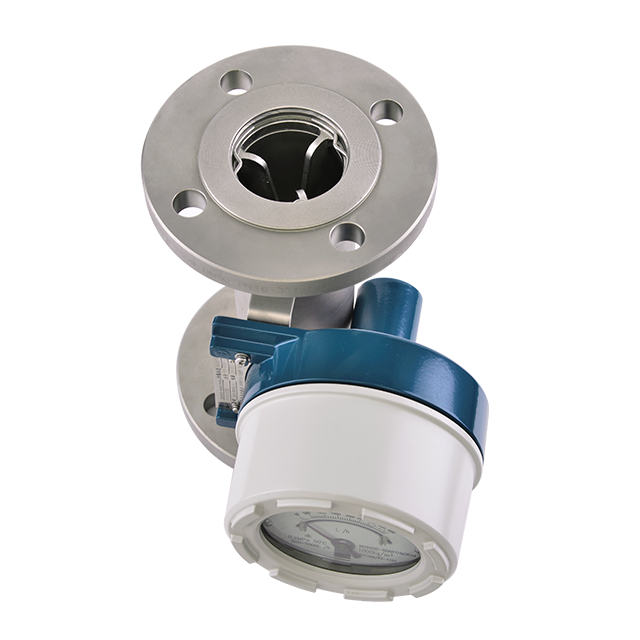

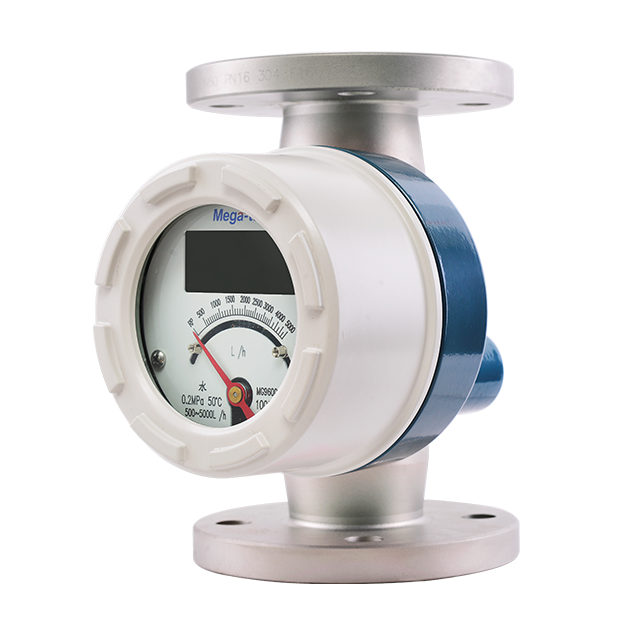

MG9800 Series
●Modular combination design, convenient maintenance, and maintenance free for normal use
●Single axis, non-contact new magnetic coupling structure for more stable signal transmission
●Dual row, large screen LCD display for instantaneous and cumulative flow, with backlight capability
●Intelligent type with power-off protection, data backup and recovery functions
●All metal structure, earthquake resistant, pressure resistant, temperature resistant, and anti-corrosion
●Short stroke, total height of 250mm, designed for more convenient installation
| General | |
| Product | MG9800-D Bottom In and Top Out Type Variable-Area Flowmeter MG9800-T Top In and Bottom Out Type Variable-Area Flowmeter MG9800-S Side In and Side Out Type Variable-Area Flowmeter MG9800-B Bottom In and Side Out Type Variable-Area Flowmeter MG9800-R Left In and Right Out Type Variable-Area Flowmeter |
| Medium | Gas, liquid |
| Housing Material | High pressure cast aluminum or stainless steel |
| Viscosity | DN15: ≤5mPa.s (F15.0~F15.4), ≤30mPa.s (F15.5~F15.9) DN25: ≤250mPa.s, DN50~DN200: ≤300mPa.s |
| Cable Entry | M20×1.5, PG11, 1/2"NPT |
| Wetted Part Material | 316LSST, 304SST, 316SST, Lining PTFE, Alloy steel, Other material consult factory for avaliable |
| Electric | |
| Power supply | 10.8VDC~36VDC (Direct-Current Type), 85~265VAC (Alternating-Current Type), 3.6@4AH Nickel hydrogen battery (battery type) |
| Output Signal | 2-wire 4~20mADC Alarm signal, open collector, MAX100Ma@30VDC Internal impedance 100 Ω |
| Process Display | Instantaneous flow display value range: 0-50000, cumulative flow display value range: 0-99999999 |
| Lightning Protection Device | Meet the requirements of EN61000-4-4 (GB/T17626.4) severity level 4 and EN61000-4-5 (GB/T17626.2) severity level 4 |
| Environment | |
| Process Temperature | -112~284℉ (-80~180℃), lining PTFE ≤170℉ (85℃), High temperature type: Max.350 ℃ |
| Ambient Temperature | -22~185℉ (-30~85℃) |
| Storage Temperature | -22~185℉ (-30~85℃) |
| Humidity | 0~100％ Relative Humidity |
| Pressure | |
| Process Pressure | DN15~DN50 PN4.0MPa (Customized Type can withstand 42MPa) DN80~DN200 PN1.6MPa (Customized Type can withstand 10MPa) |
| Measurement Performance | |
| Accuracy | 1.5 (Customized Type 1.0) |
| Range Down Ratio | 10:1 (Customized Type 20:1) |
| Hazardous Locations Certifications | |
| FM | Factory Mutual (FM) Approvals |
| CEX | Explosion Proof |
| CEI | Intrinsic Safety |
| CSA | Canadian Standards Association Certification |
| IEI | IS International Electromechanical Committee |
| GR | GOST Certification |
| Mechanical | |
| Total Hight | 250mm (standard type) with exceptions for other installation methods |
| Ingress Protection | |
| Sealing | Factory Sealing |
The following are the application scenarios of MG9800 variable-area flowmeter:
● Chemical and Petroleum Industry
● Petroleum and Natural Gas Industry
● Pulp and Paper Industry
● Pharmaceutical Industry
● Food and Beverage Industry
● Water Treatment and Sewage Treatment
● Electric Power Industry
● Machinery and Metallurgy Industry
