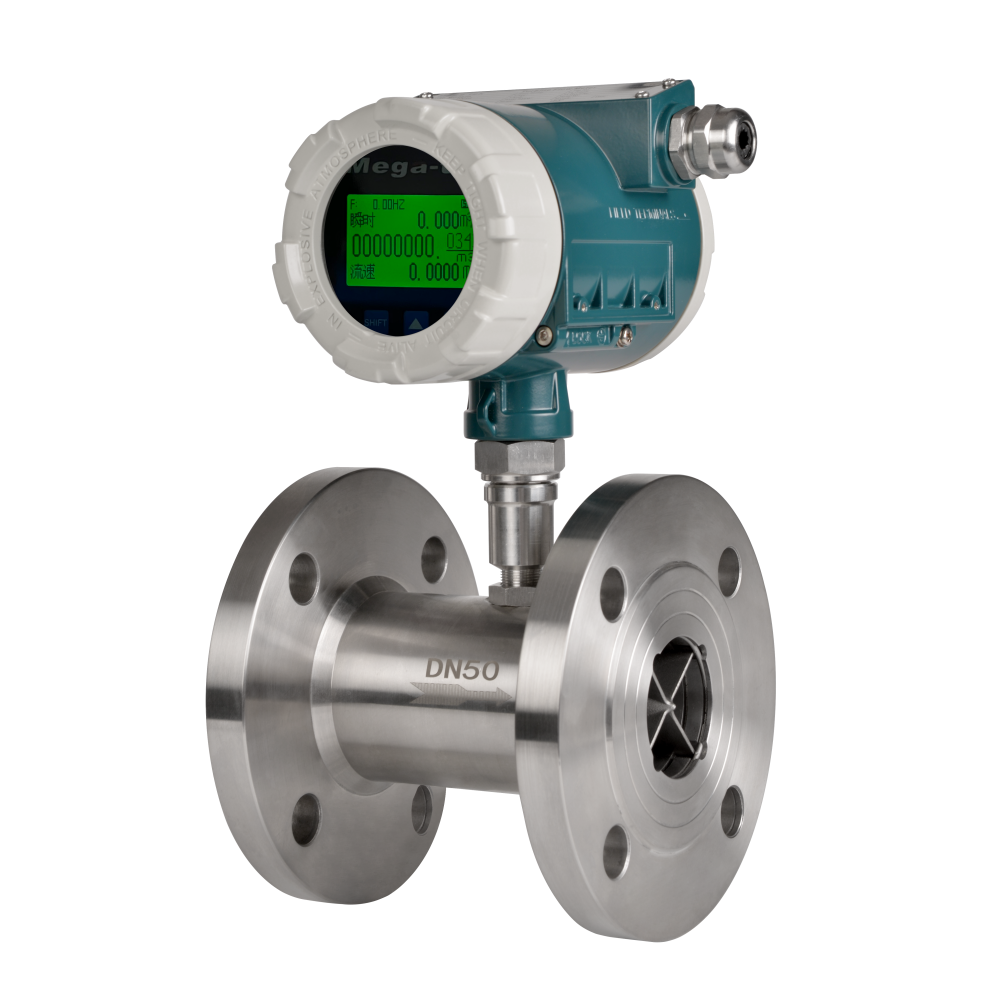

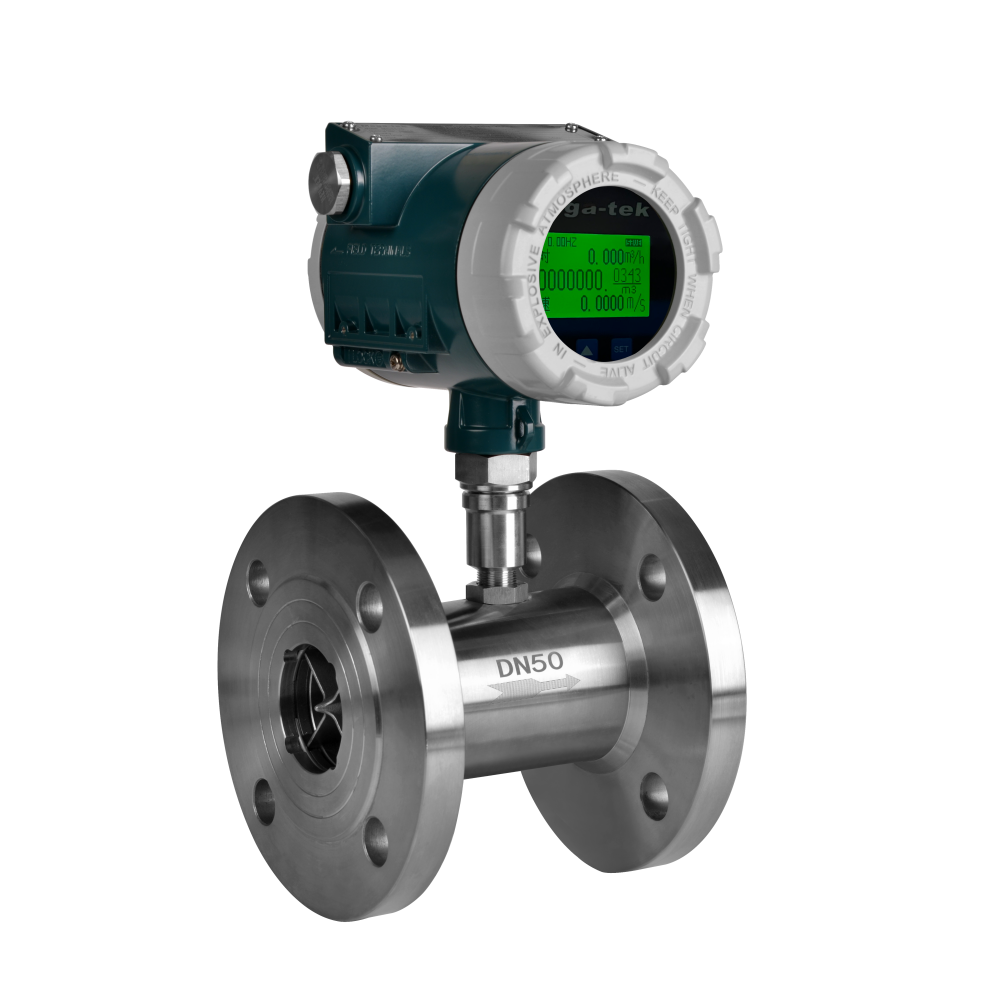

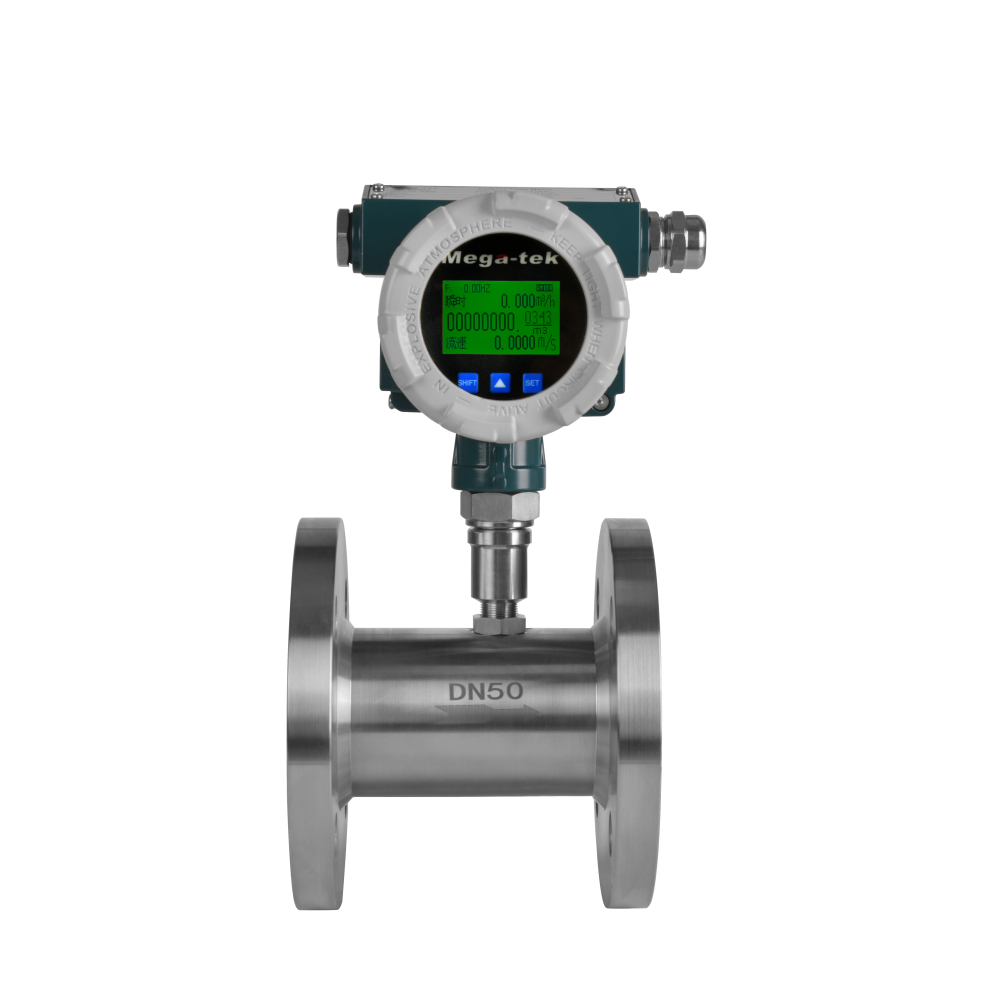

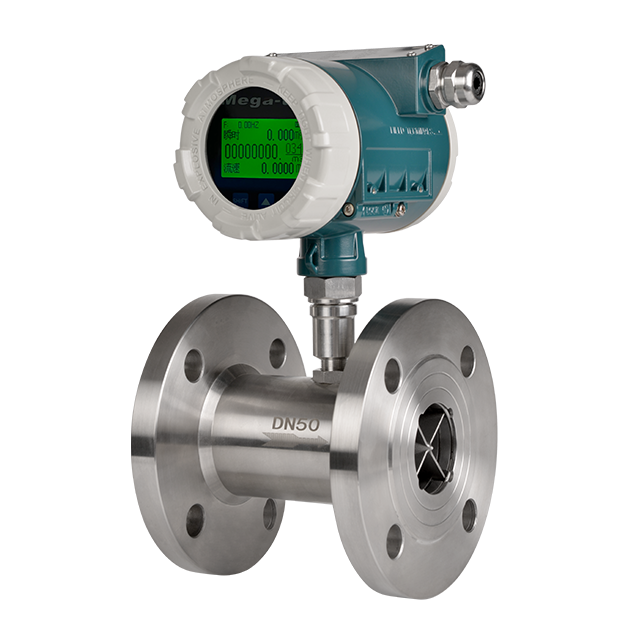

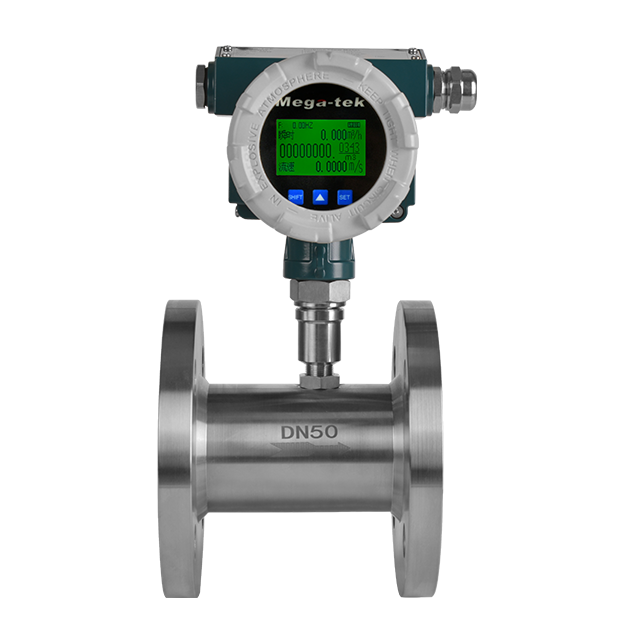

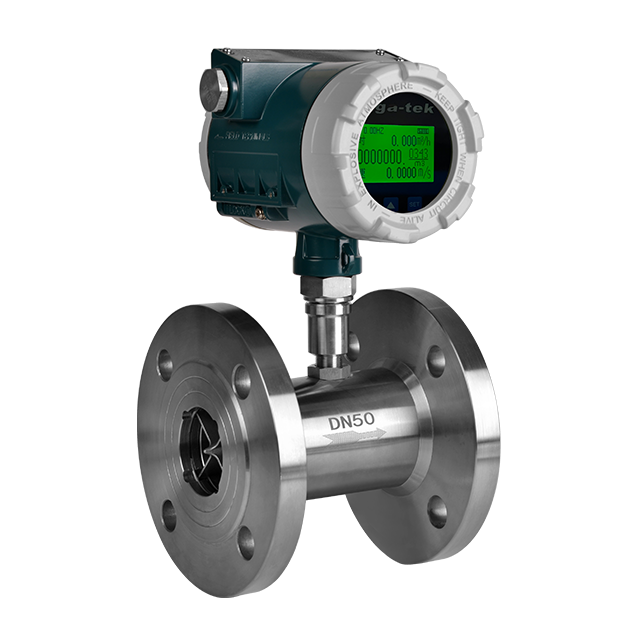

MG9620 Series
● High Accuracy: Liquid: ±0.5% (general), up to ±0.2% (high-accuracy type); Gas: ±1%, ±1.5%;
● Excellent Repeatability: 0.05%~0.2%, suitable for trade settlement;
● Sensor Output: Frequency signal, easy to digitize;
● Strong Signal Resolution: Sensor signal range 3~4KHz;
● High Range Down Ratio: Up to 20:1;
● Compact & Lightweight Structure: Convenient installation and maintenance;
● The body part does not need to be perforated, making it easy to make into a high-pressure type.
| General Specifications | |
| Product | MG9620 Series Turbine Flowmeter |
| Medium | Clean, low viscosity, non-corrosive liquids and gases |
| Housing Structure | Dual Chamber |
| Housing Material | High-Pressure Cast Aluminum |
| Body Material | SS304, SS316, SS316L |
| Impeller Material | Liquid: 2Cr13, Duplexsteel; Gas: Aluminum alloy |
| Viscosity | <50cp |
| Cable Entry | 1/2"NPT or M20×1.5 |
| Electrical | |
| Power Supply | 12~36VDC, 3.6V lithium battery, dual power supply |
| Output Signal | 4~20mA/Pulse, HART, RS485 |
| Ambience | |
| Process Temp. Limit | Liquid: -20~120℃, Gas: -30~80℃ |
| Ambent Temp. Limit | -40~85℃ |
| Storage Temp. Limit | -40~85℃ |
| Humidity Limit | 5~95％ Relative humidity |
| Pressure | |
| Process Pressure | Liquid≤42MPa, Gas≤10MPa |
| Measurement Performance | |
| Accuracy | Liquid: ±1%, ±0.5% (standard), ±0.2% (high accuracy) Gas: ±1%, ±1.5% |
| Range down Ratio | 10:1~20:1 |
| Explosion-proof | |
| Explosion-proof rating | Ex d IIC T6 Gb, Ex ia IIC T6 Gb |
| Machinery | |
| Pressure Ratings | PN1.6~42.0MPa, ANSI 150~2500LB |
| Process Connection | Clamp type: DN4~DN200 Flanged type: DN15~DN200 Threaded type: DN4~DN50 |
| Ingress Protection | IP65 |
| Standards | |
| Execution Standard | JB/T 9246-2016 Turbine Flow Sensor |
| Verification standards | JJG 1037-2008 Turbine Flow Sensor |
The following are the application scenarios of MG9620 turbine flowmeter:
● Chemical and Petroleum Industries
● Oil and Gas Industry
● Metallurgical Industry
● Scientific Research
● Food and Beverage Industry
