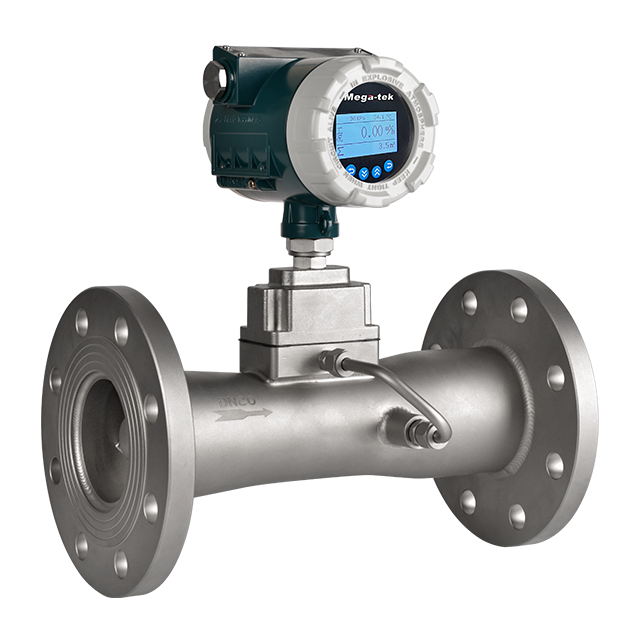

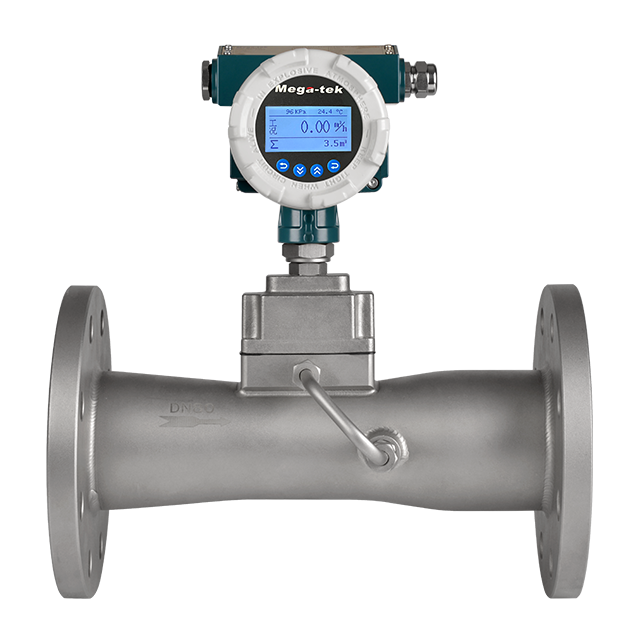

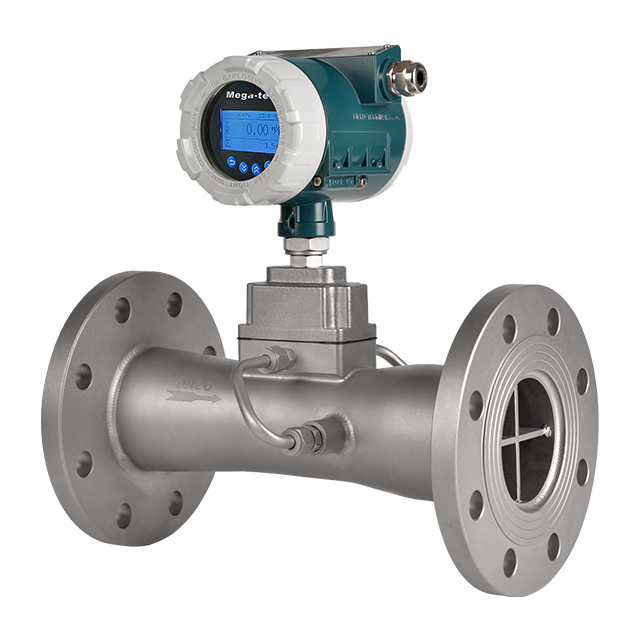

MG9650 Series
● Adopting a fine low-power LCD display screen, the on-site display screen can display instantaneous flow, cumulative flow, frequency and other information;
● The probe adopts four-piece piezoelectric ceramic technology and dual-probe detection technology to enhance signal strength and suppress interference caused by pipeline vibrations;
● No moving parts, no wear and tear, no need for mechanical maintenance, few leakage points, long service life;
● The sensors and transmitters have good interchangeability. No re-calibration with actual flow is required to meet accuracy requirements;
● A remote-type signal converter is optional, with a maximum cable length of 10 meters;
● Output 4-20mA current signal, pulse signal, and Modbus RS485 differential signal. HART protocol communication is also supported;
● Two explosion-proof forms are available:
Intrinsic Safety: Ex ia II CT6 Ga; explosion-proof: Ex d II CT6 Gb;
● The straight pipeline section requirements are low, with only 3D in front of and 1D behind the flowmeter;
● Receive temperature sensor PT1000 signal and pressure sensor signal, perform temperature and pressure compensation, and output 4-20mA current signal.
| General | |
| Product | MG9650 Spiral Vortex Flowmeter |
| Medium | Liquids, gases, steam |
| Housing Structure | Double chamber |
| Housing Material | High pressure cast aluminum or stainless steel |
| Cable Entry | 1/2"NPT or M20*1.5 |
| Material | SS304, SS316, SS316L, HC, etc. |
| Electric | |
| Power supply | 12~36VDC, with reverse polarity protection |
| Output Signal | 4~20mA, HART, pulse, RS485 |
| Ambience | |
| Operating Temperature | -40~752℉ (-40~350℃) |
| Ambient Temperature | -40~185℉ (-40~85℃) |
| Storage Temperature | -40~185℉ (-40~85℃) |
| Humidity | 0~100％ relative humidity |
| Pressure | |
| Operation Pressure | 0~420bar (0~42MPa) |
| Measurement Performance | |
| Accuracy | Gas: Class 1.0, Liquid: Class 0.5 |
| Range Down Ratio | 10:1-20:1 |
| Hazardous Locations Certifications | |
| FM | Factory Mutual (FM) Approvals |
| CEX | Explosion Proof |
| CEI | Intrinsic Safety |
| CSA | Canadian Standards Association Certification |
| IEI | IS International Electromechanical Committee |
| GR | GOST Certification |
| Machinery | |
| Sensor Sealing | Graphite gasket, others |
| Pressure Ratings | PN16~PN420, ANSI 150LB~2500LB (high-pressure inquiry available) |
| Process Connection | Flange mount DN15~DN500 |
| Diameter | DN15~500 1/2"~20" |
| Sealing | |
| Ingress Protection | IP65/IP67 |
The following are the application scenarios of MG9650 spiral vortex flowmeter:
● Chemical and Petroleum Industries
● Oil and Gas Industries
● Pharmaceutical Industry
● Food and Beverage Industries
● Water Treatment and Sewage Treatment
● Electric Power Industry
● Mechanical and Metallurgical Industries
