MG9700 Series

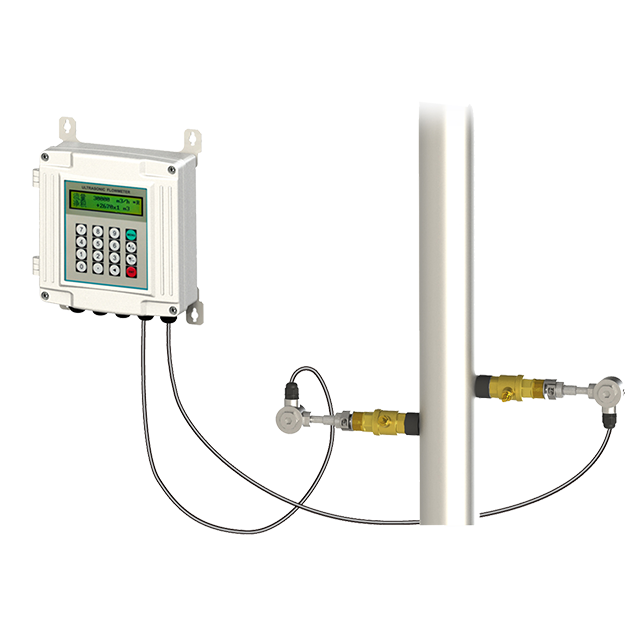

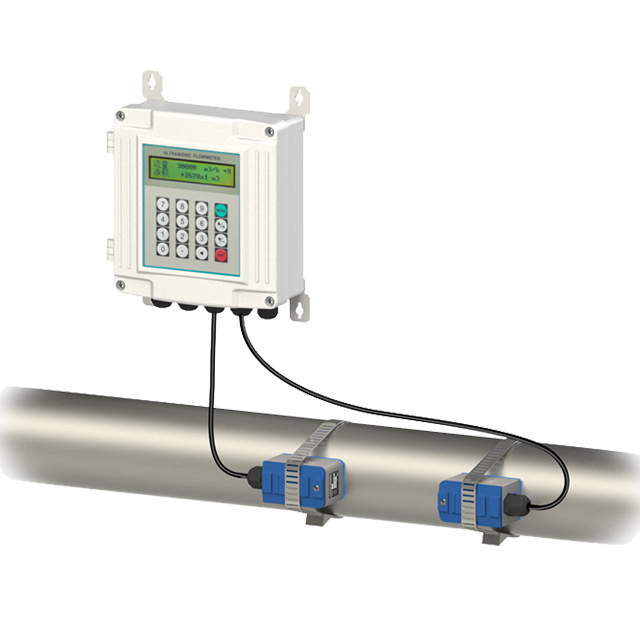

●Non-contact measurement method with a variety of installation options (clamp-on, insertion, pipeline, etc.);
●Suitable for on-site measurement of various sizes of pipelines with sound-conducting medium;
●Flexible user interface and easy to use;
●Equipped with an integrated aluminum alloy protective case, which can be used in harsh outdoor environments;
●Low start-up flow and no pressure loss;
●Compared with traditional flowmeters, there is no need to cut pipelines or stop the flow. Installation is convenient, and truly non-destructive installation is achieved;
●Unique signal digital processing technology is used, making the instrument's measurement signal more stable, with strong anti-interference ability and more accurate measurement;
●No mechanical moving parts, less prone to damage, maintenance-free, and long service life. The circuit is more optimized, highly integrated, low power consumption, and high reliability.
| General | |
| Product | MG9700 Series Ultrasonic Flowmeter |
Medium | Water, industrial wastewater, acidic and alkaline liquids, various oils and other liquid |
Pipeline Material | Steel, Stainless Steel, Cast Iron, PVC, fiberglass, etc., with lining allowed. |
Flow Rate Range | 0-30m/s |

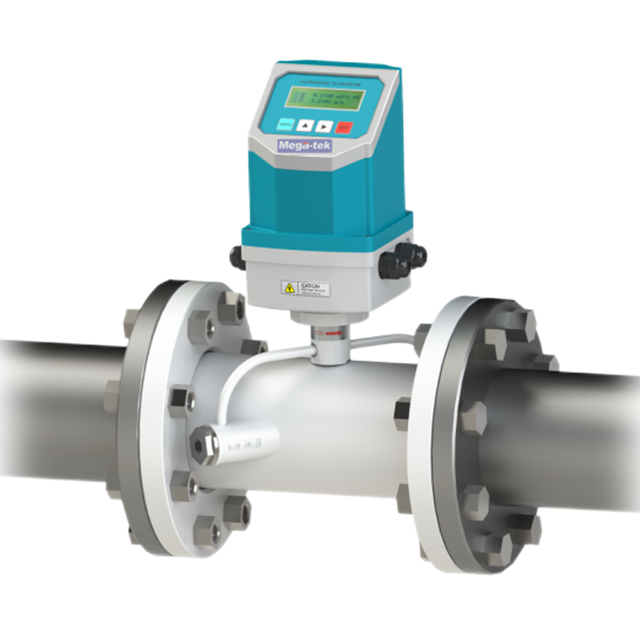

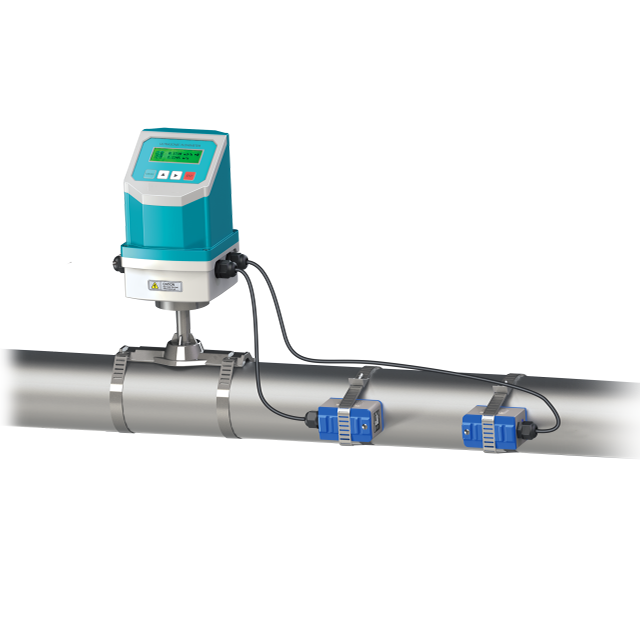

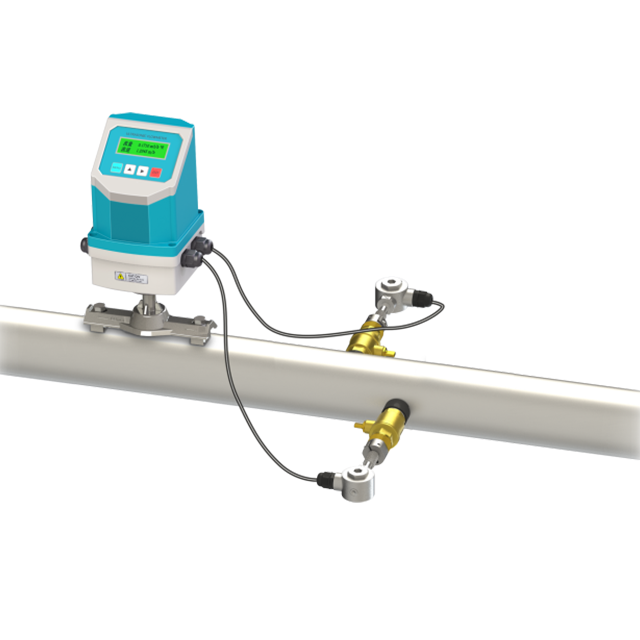

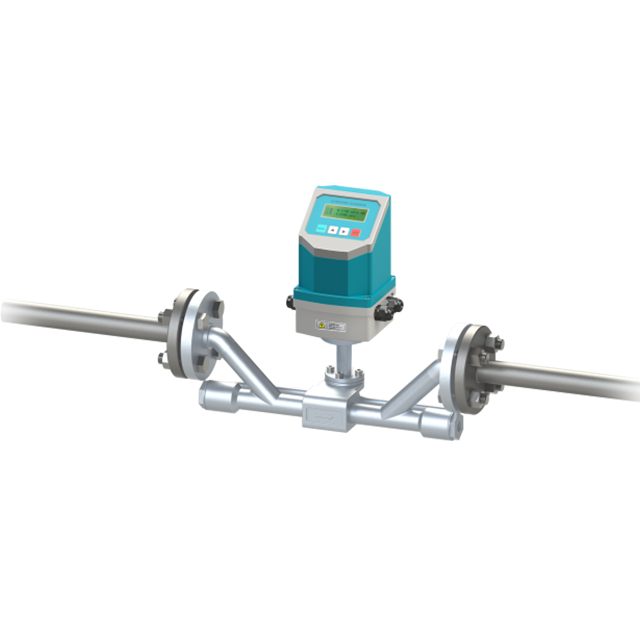

Structure Form | Pipeline type, clamping type, insertion type, Portable type, etc. |
| Ambience | |
Process Temperature | -30~320℉ (-30~160℃) |
Ambient Temperature | -20~140℉ (-20~60℃) |
Storage Temperature | -20~140℉ (-20~60℃) |
Humidity | 0~90％ Relative humidity |
| Pressure | |
Process Pressure | 0~40bar (0~4MPa), for higher pressure, please consult the factory |
| Measurement Performance | |
Accuracy | ±1%, ±1.5%, ±2.5% |
Range Down Ratio | 50:1/100:1 |
| Machinery | |
Pressure Ratings | PN25/PN40 ANSI 300LB/600LB（For higher pressure,please consult the factory） |
Process Connection | DN15~DN6000 |
Sealing | Factory sealing |
| Ingress Protection | IP65/IP68 |
The following are the application scenarios of MG9700 ultrasonic flowmeter
●Electric Power Industry
●Chemical and Petroleum Industries
●Oil and Gas Industries
●Food and Beverage Industries
●Water Treatment and Sewage Treatment
●Mechanical and Metallurgical Industries
