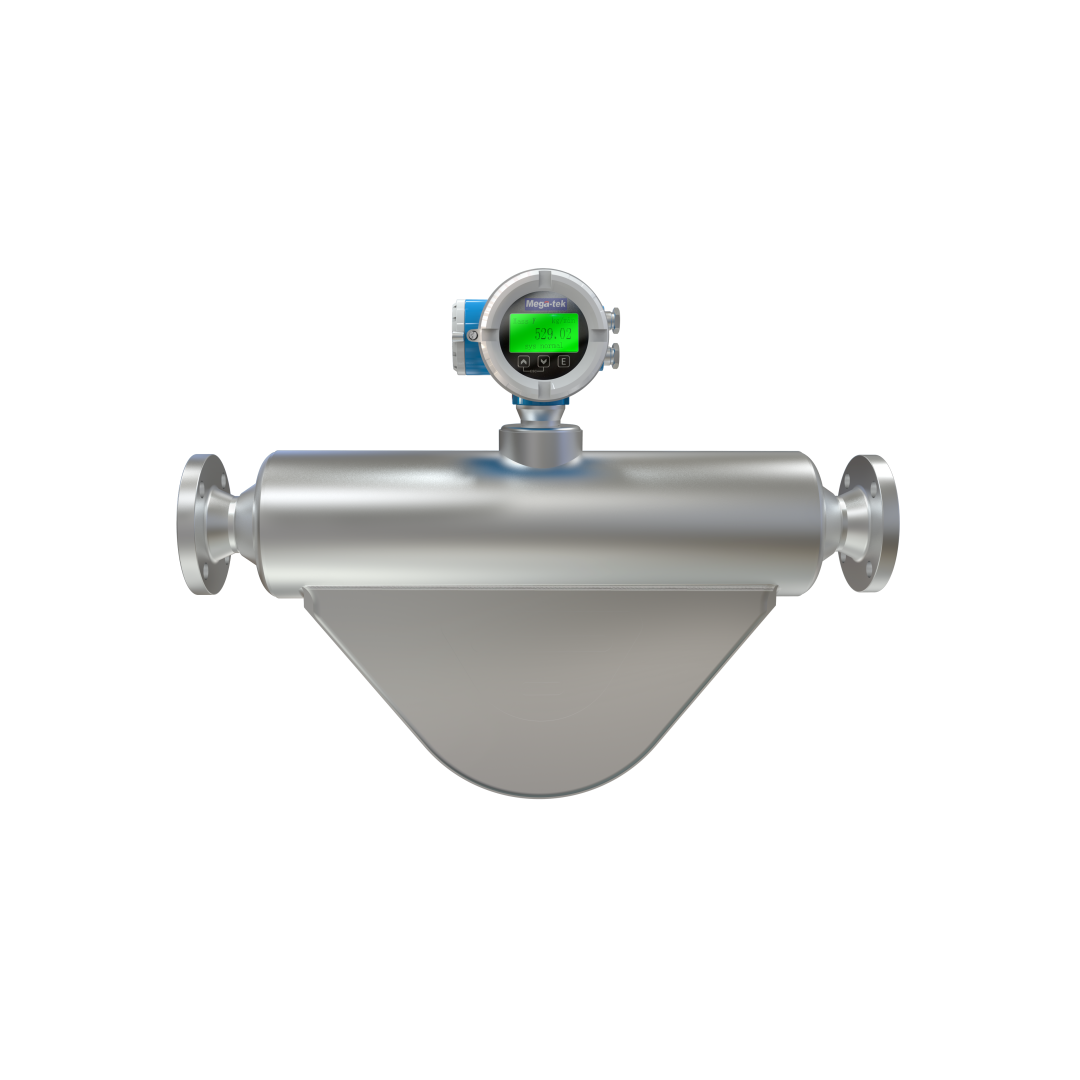

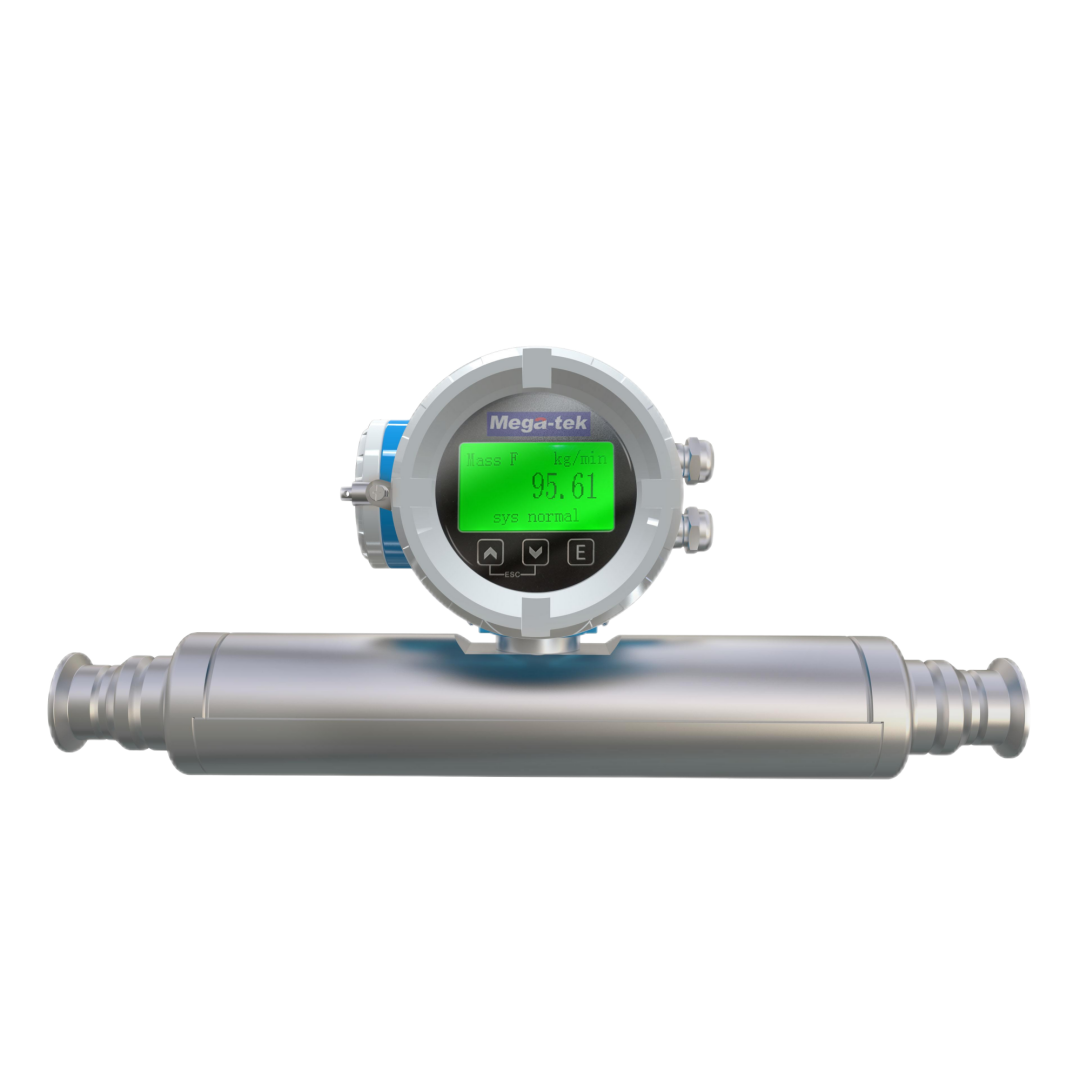

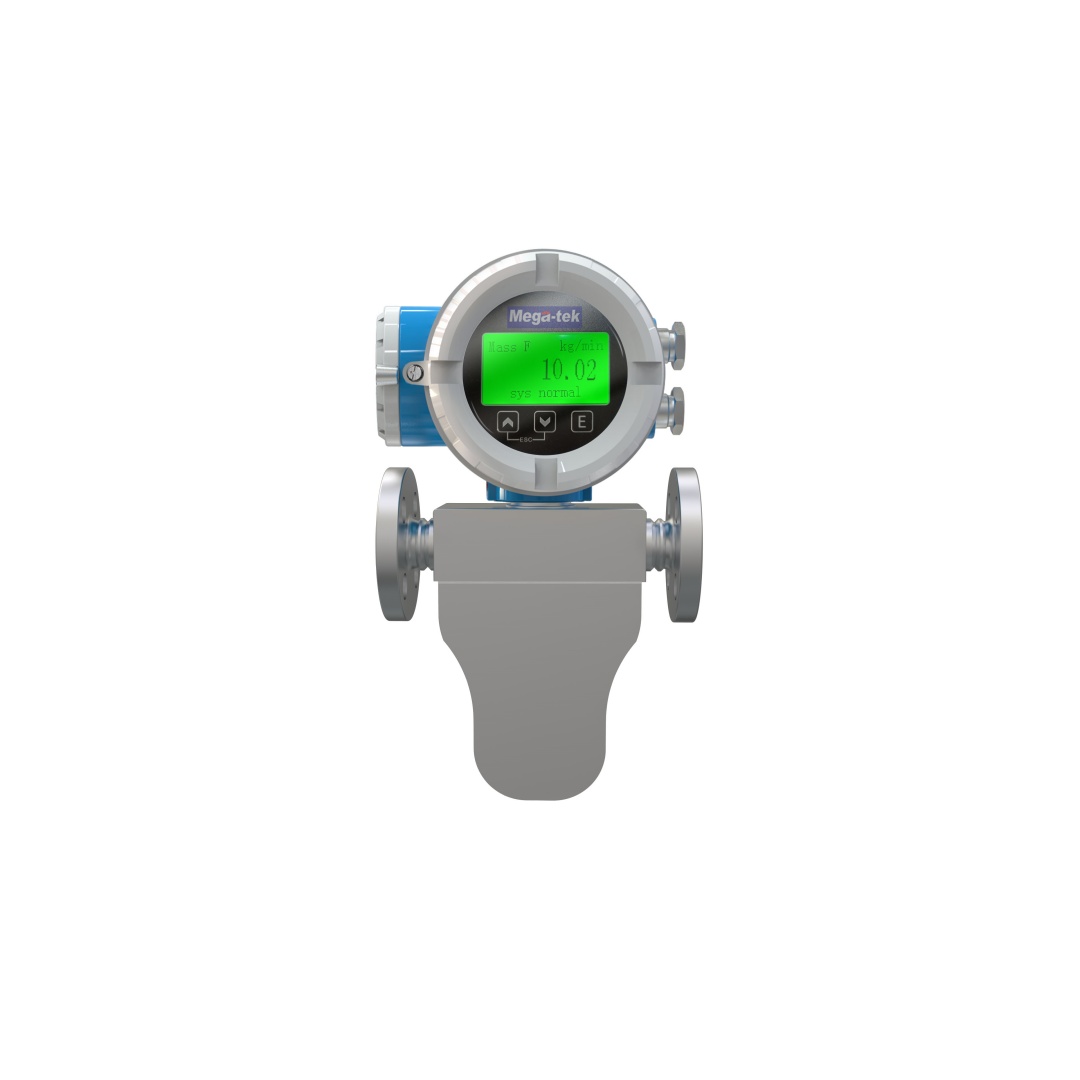

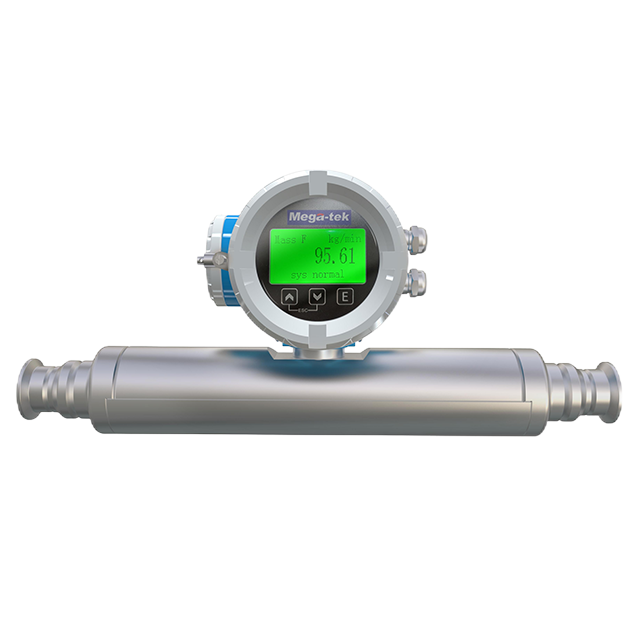

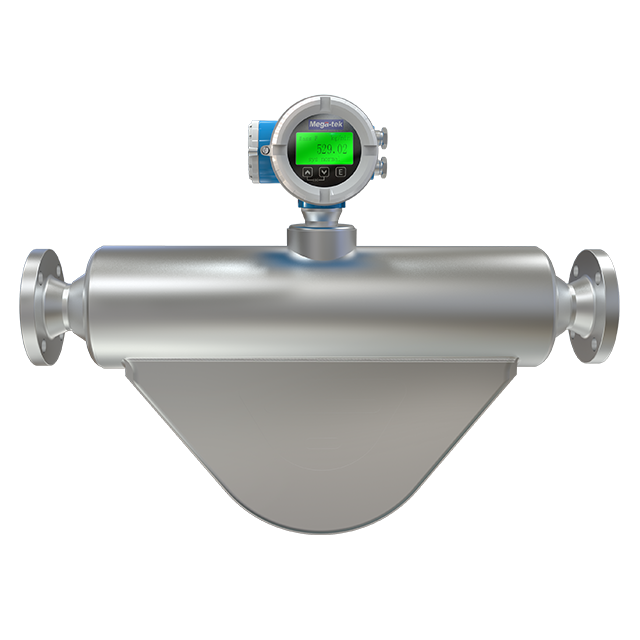

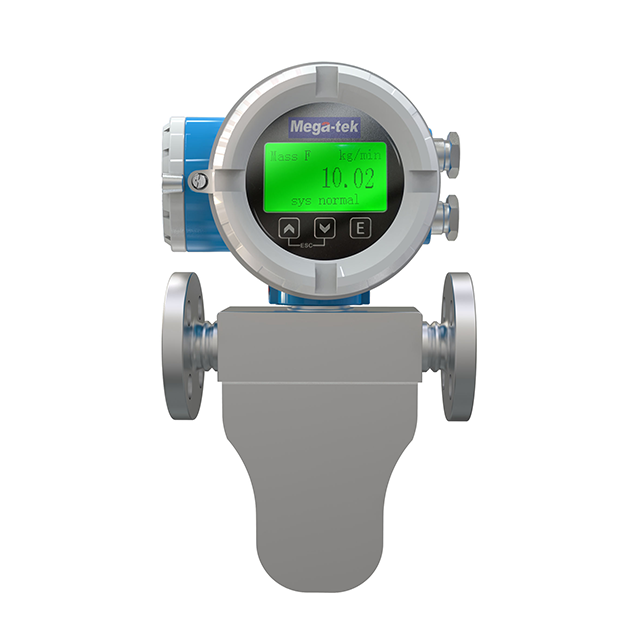

The MG9900 Series Coriolis Mass Flowmeter is a high-precision flow measurement device developed by Mega-tek based on the Coriolis principle. Unlike traditional flowmeters, it can directly measure parameters such as mass flow rate, density, and temperature online, without being affected by factors like temperature, pressure, and flow velocity. With high accuracy and good repeatability, this flowmeter is widely used in fields such as petrochemicals, natural gas, and pipeline transportation, realizing functions including trade calculation and industrial process control, and helping enterprises optimize production and save maintenance costs.
Achieve direct and accurate measurement of fluid mass flow, providing reliable data support for trade settlement and process control.
Adapt to various complex fluid media, reducing the need for multiple types of flow measurement equipment and lowering procurement costs.
High measurement accuracy, with the highest accuracy reaching ±0.1%, and good repeatability of ±0.075% of span, ensuring the authenticity and reliability of data.
Large range-down ratio, up to 100:1, which can meet the measurement needs of different flow ranges.
It can not only measure uniform fluids with general viscosity but also the flow rate of high viscosity and multi-phase media, with strong adaptability.
Adopt adaptive power supply (22VDC~245VAC), reducing the types of spare power supplies and facilitating equipment maintenance.
With Exd ibⅡC T6 Gb explosion-proof certification, it can be safely used in hazardous environments.
Product | MG9900 Coriolis Mass Flowmeter/Densitometer |
Medium | Liquids,gases,slurries,partially multi phase fuids |
Housing Structure | Dual compartment |
Housing Material | Liquids,gases,slurries,partially miscible fluids |
Body Material | Stainless steel 304/316L |
Pipeline Material | 316L,Hastelloy alloy,titanium,2205 |
Cable/Conduit Entry | 1/2"NPT or M20×1.5 |
Electric | |
Power Supply | 85~245VAC/18~36VDC/22VDC~245VAC |
Output | Current,HART,Frequency,Modbus |
Explosion Proof | Exd ibⅡC T6 Gb |
Temperature | |
Process Temp.Limit | -60~200℃,Low temp.type:-253-70℃,High temp.type:180-300℃ |
Ambient Temp.Limit | -40~176°F(-40~85℃) |
Humiduty Limit | 0~95%Relative humidity |
Pressure | |
Process Pressure | 0~34.5MPa(Consult factory forhigh pressure) |
Measurement Performance | |
Digital Accuracy | Flow:±0.1%/0.15%/0.2%/0.5% |
Measurement Range | Flow:0~635000kg/h |
Repeatability | ±0.075%of span |
Machinery | |
Structure | Integral mount/Remote mount |
Diameter | DN1~200 |
Flange | Stainless steel(304SST,316SST) |
Sealing | Factory Sealing |
Endlosure Ratings | IP67 |
In the petrochemical industry, the MG9900 Series Coriolis Mass Flowmeter is widely used in the measurement and trade settlement of crude oil, refined oil, and various chemical raw materials during pipeline transportation. Its high accuracy ensures fair transactions between suppliers and purchasers, and its ability to adapt to high viscosity media makes it suitable for measuring media such as heavy oil and lubricating oil.
For CNG/LNG transportation and storage, the flowmeter can accurately measure the mass flow of natural gas, providing data support for gas sales and inventory management. In the new energy industry, it is used to monitor the flow of electrolytes and fuels in the production process of new energy vehicles, helping enterprises control production costs and ensure product quality.
In the smelting industry, the device is used to measure the flow of cooling water and mineral slurry, ensuring the stable operation of smelting equipment and the rational use of resources. In the papermaking and pulp industry, it can accurately measure the flow of pulp and chemical additives, helping to control the ratio of raw materials and improve the quality of paper products.
Yes, it can measure the flow of liquids, gases, slurries, and even partially multi-phase fluids, with a wide range of applicable media.
The standard type can withstand -60~200℃, the high temp. type can reach 180-300℃, and the low temp. type can be used in the environment of -253-70℃.
Yes, it supports multiple output signals such as HART and Modbus, which can realize remote data transmission and monitoring.
