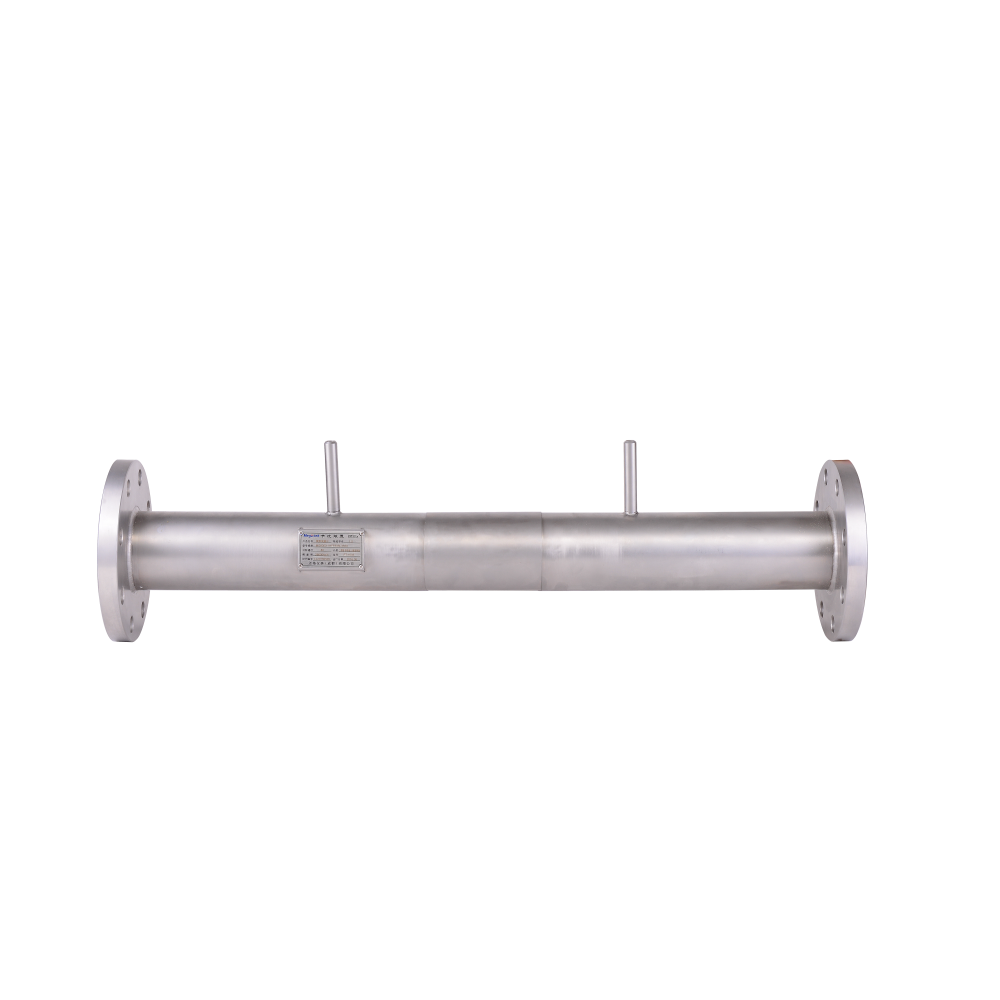

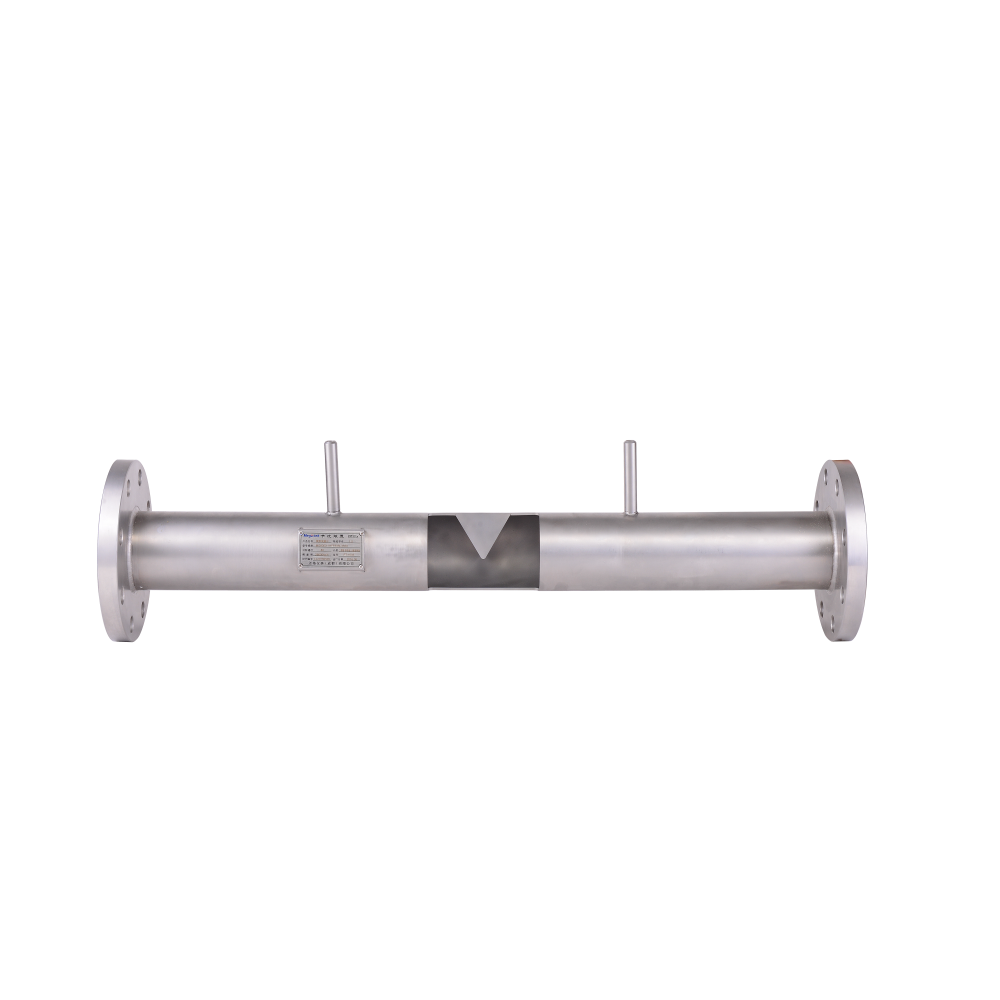

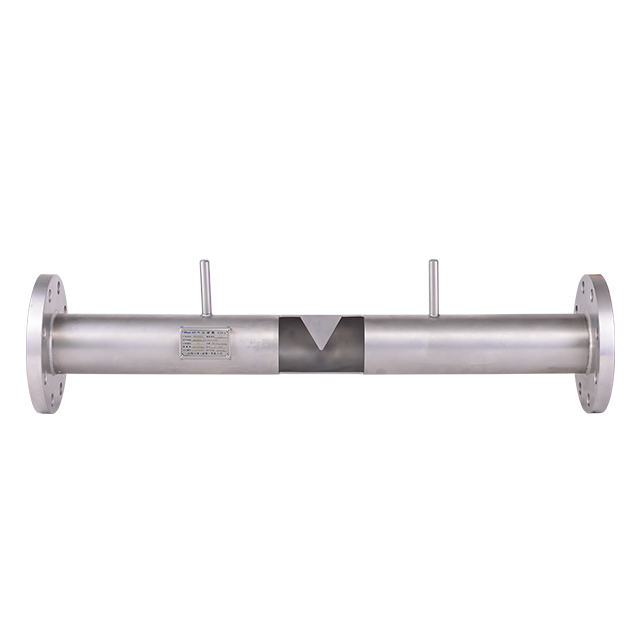

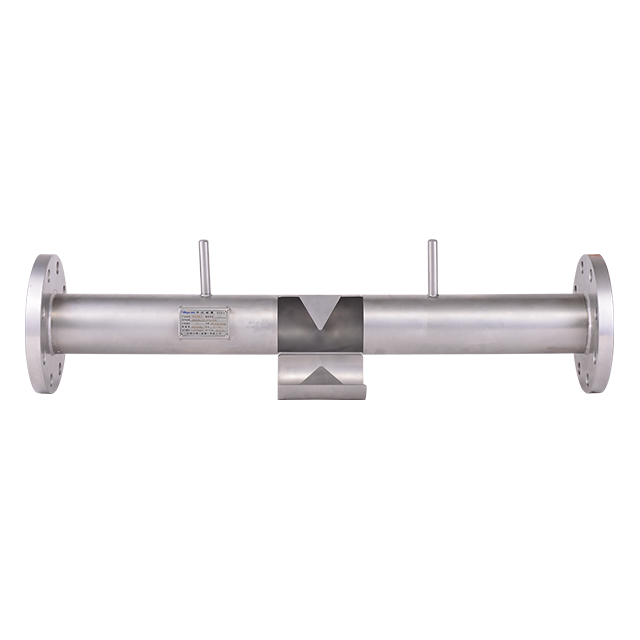

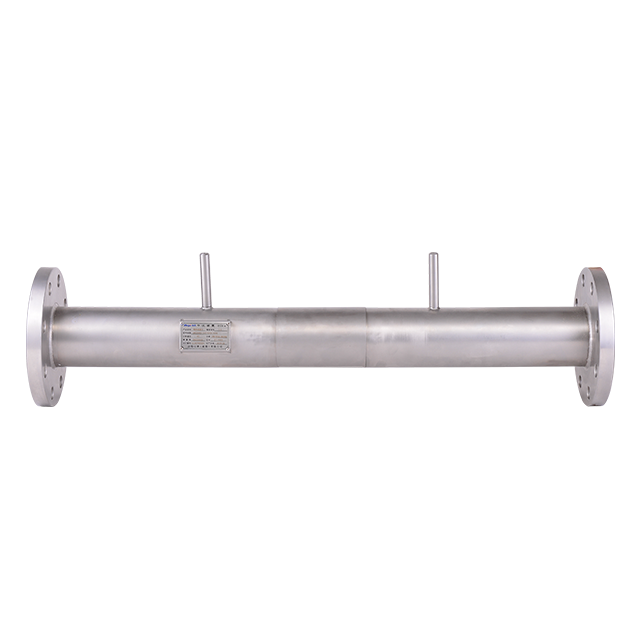

MG9300 Series
● Low permanent pressure loss.
● Optional integrated transmitter.
● For volumetric flow measurement.
● Robust and durable overall structure.
● Excellent long-term stability.
● Bidirectional flow measurement capability.
● For any working condition, the flowmeter's diameter and wedge ratio can be flexibly selected to achieve no contraction or expansion of the diameter.
● Compared to other principle flowmeters, it can measure low Reynolds number fluids.
● The throttling element has the function of straightening and redistributing the fluid, requiring a short straight pipeline section.
● Excellent accuracy and repeatability.
● The accuracy of ±0.5% (Reynolds number > 500) and the repeatability of ±0.2% after calibration.
| Parameter | |
| Accuracy | Better than ±1% of reading (calibrated) |
| Repeatability | ±0.2% of reading |
| Pressure Loss | About 1/5 of the measured differential pressure (approximately 1/3 of that of an orifice plate) |
| Medium | Various liquids, gases, and steam, especially suitable for slumy fluids, sewage, fuel oil, residual oil, and heavy oil |
| Reynolds Number Range | 500~1×106 (when measuring at low Reynolds numbers, the range is relatively narrowed, and the uncertainty of the discharge coefficient is relatively increased) |
| Minimum Liquid Viscosity | 500mPa.s |
| Medium Pressure | Below 5MPa (For higher pressure, please consult the factroy) |
| Medium Temperature | Below 400℃ (For higher temperature, please consult the factroy) |
| Applicable Pipeline Diameter | DN15mm~DN300 mm (For larger diameter, please consult the factroy) |
| Wedge Ratio | H/D: 0.2, 0.3, 0.4, 0.5 |
| Long-term Stability | ±0.2% F.S/Y |
The following are the application scenarios of MG9300 Orifice Flowmeter:
● Chemical and Petroleum Industries
● Oil and Gas Industries
● Pulp and Paper Industries
● Pharmaceutical Industry
● Food and Beverage Industries
● Water Treatment and Sewage Treatment
● Electric Power Industry
● Mechanical and Metallurgical Industries
