● The measurement results are independent of physical parameters such as flow velocity distribution, fluid pressure, temperature, density, viscosity, etc;
● There are no movable flow blocking components in the pipeline and no additional pressure loss;
● High definition backlit LCD display with Chinese menu operation, convenient to use and simple to operate;
● The converter core adopts a high-speed central processing unit, which has fast computing speed, high accuracy, low-frequency rectangular wave excitation, improved measurement stability, and low power consumption;
● Full digital processing, strong anti-interference ability, reliable measurement, and high accuracy;
● Ultra low EMl switching power supply The range of voltage variation is large when using the power supply Good EMC resistance;
● Adopting EEPROM memory, equipped with a non power-off clock inside, which can record the power-off time, measure and calculate data storage for safe and reliable protection;
● Bidirectional measurement system, capable of measuring forward flow and reverse flow;
● Password locking function. After the flowmeter is powered on, if parameters need to be set, a password must be entered before operation can be performed;
● The converter has a self diagnostic alarm output function and an empty load detection alarm output;
● Insertion mechanism. Simple installation, no need to cut off flow, can be installed on site with pressure opening (below 1MPa), economical and convenient, suitable for measuring flow in large and medium diameter pipelines;
| General Specifications | |

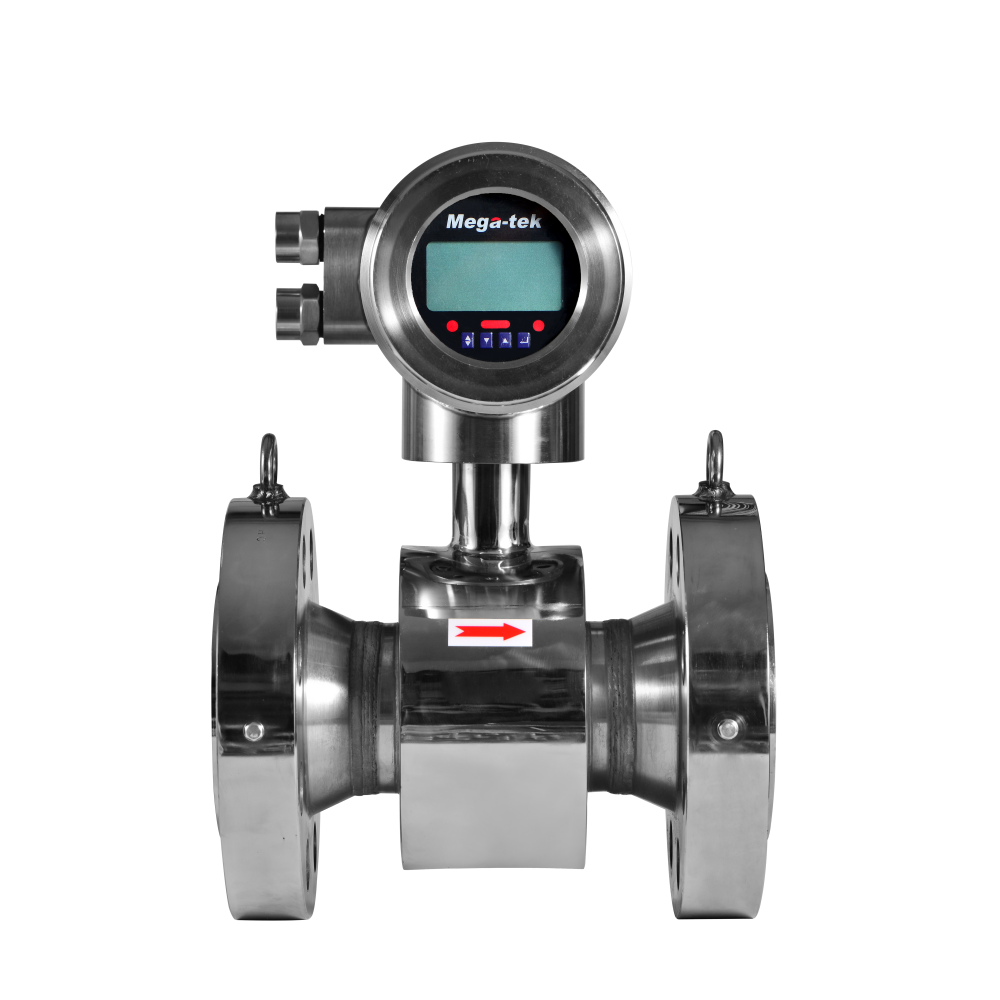

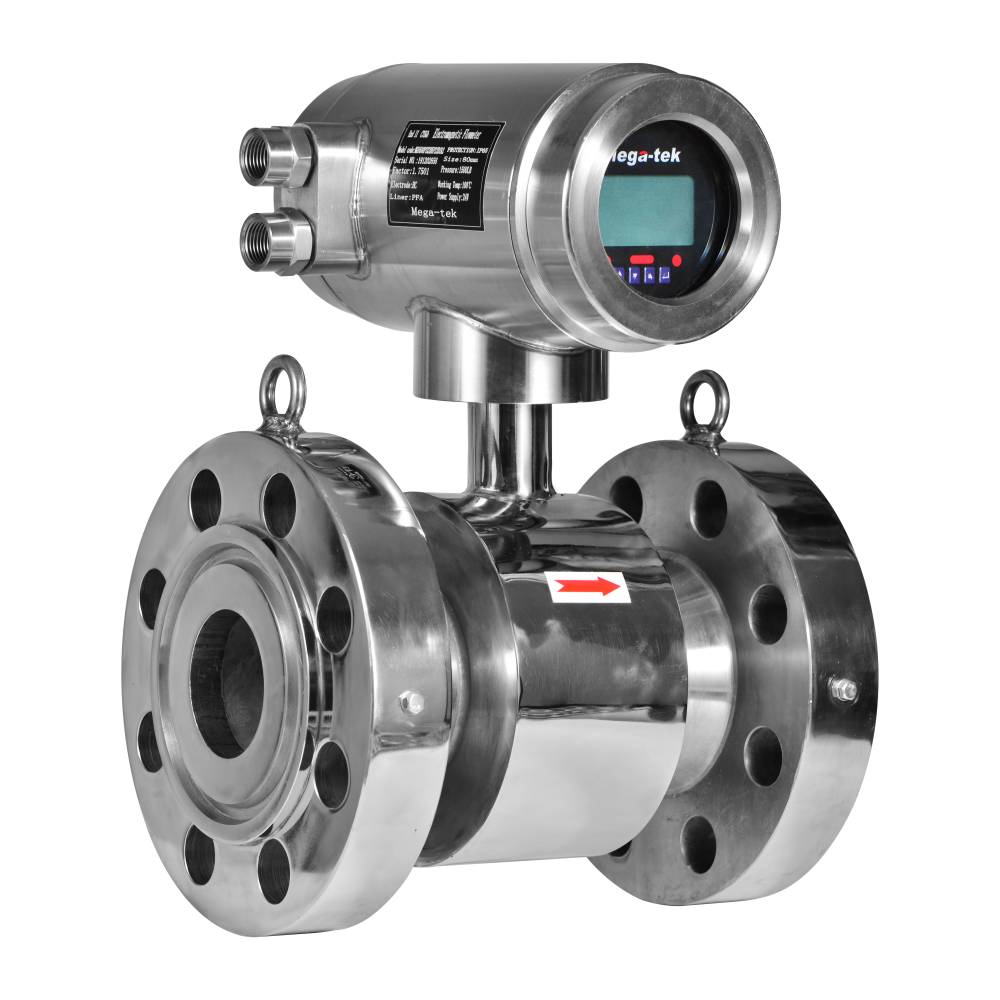

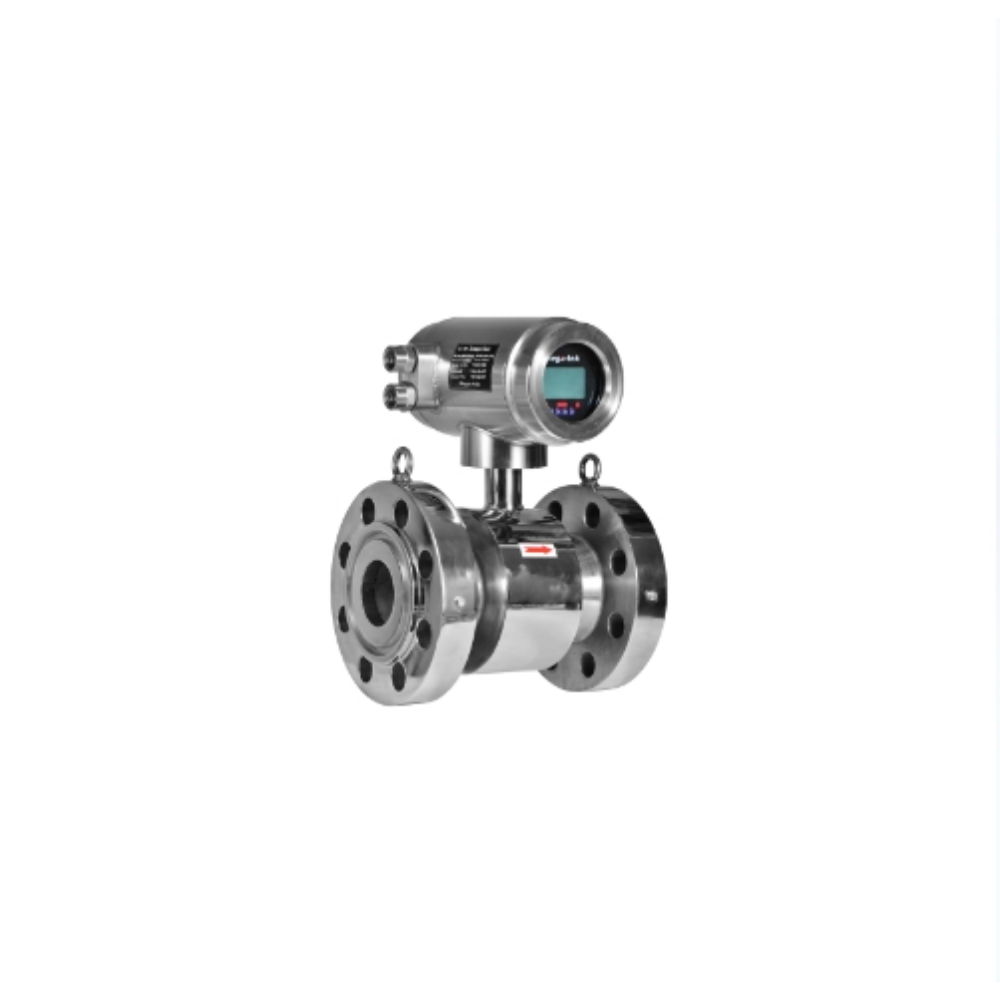

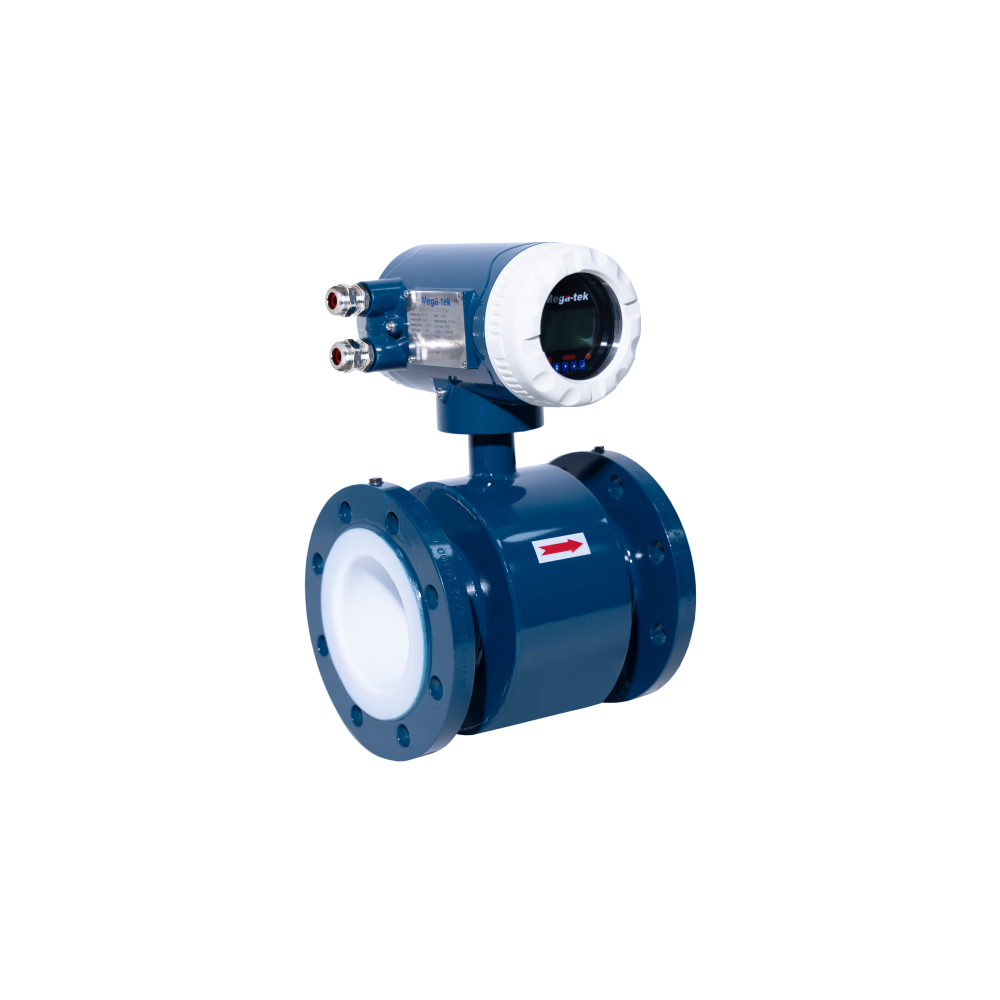

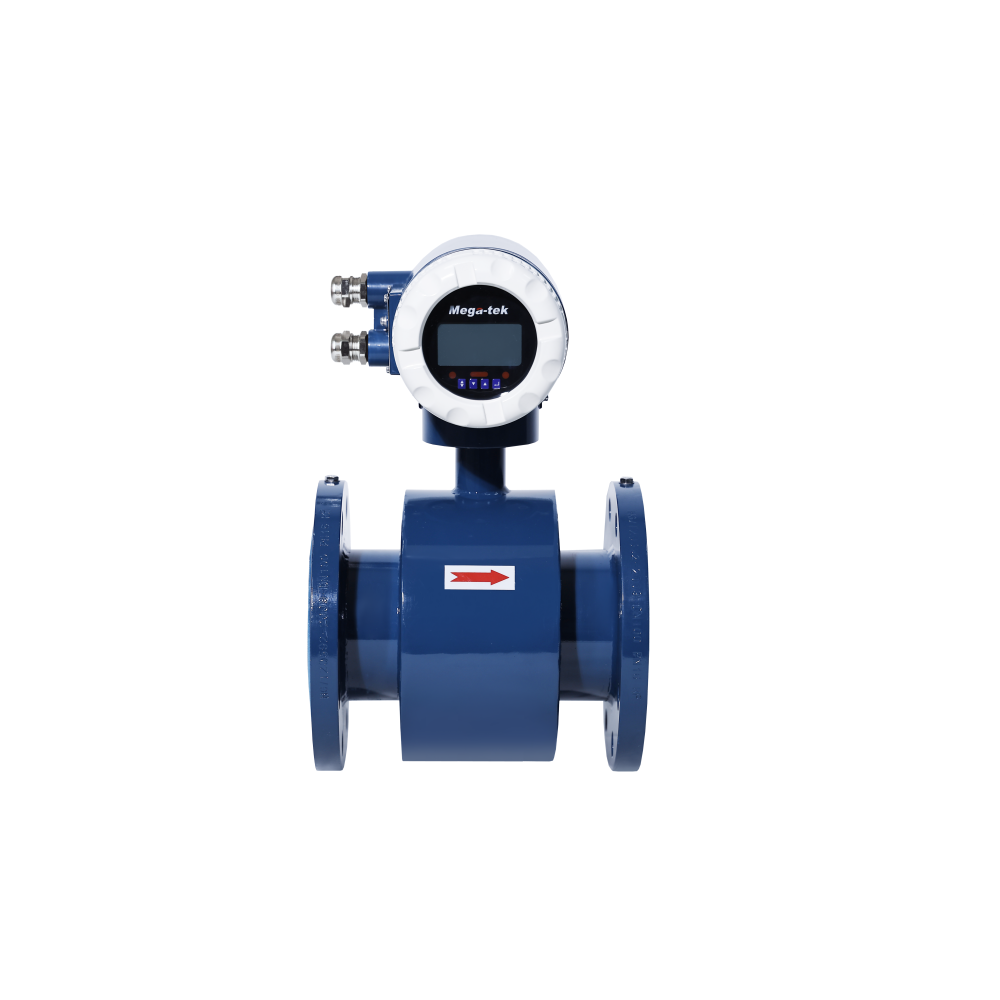

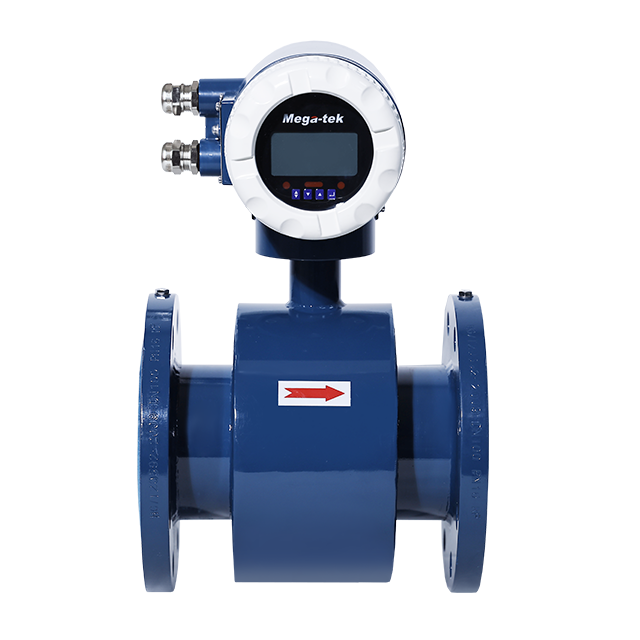

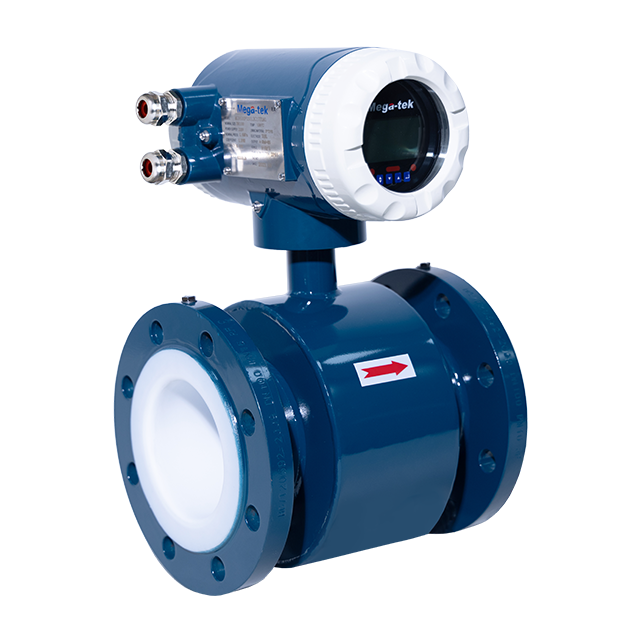

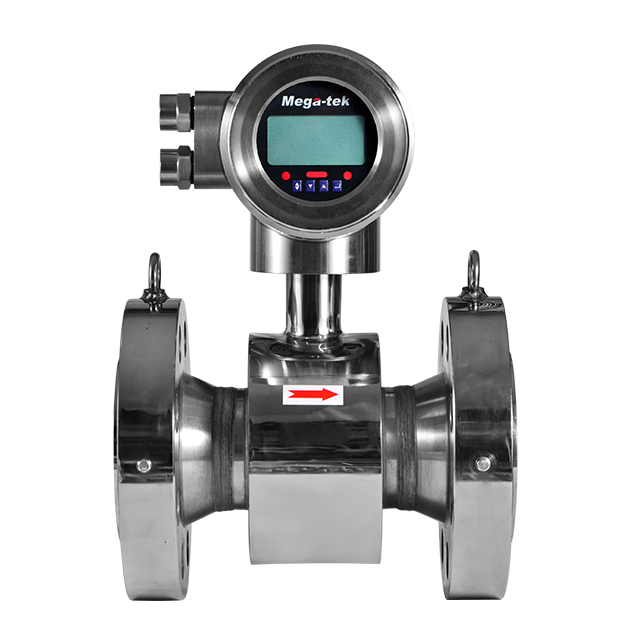

| Product Description | MG9500 Serise Electromagnetic Flowmeter |
| Medium | Liquids and sluries (conductivity must be at least 5 microsecondsper centimeter(5μ S/cm)or higher |
| Housing Structure | Dual compartment |
| Housing Material | Aluminum or stainless steel |
| Body Material | Carbon steel or stainless steel |
| Viscosity | 0~100pa.s |
| Cable/Conduit Entry | 1/2"NPT or M20×1.5 |

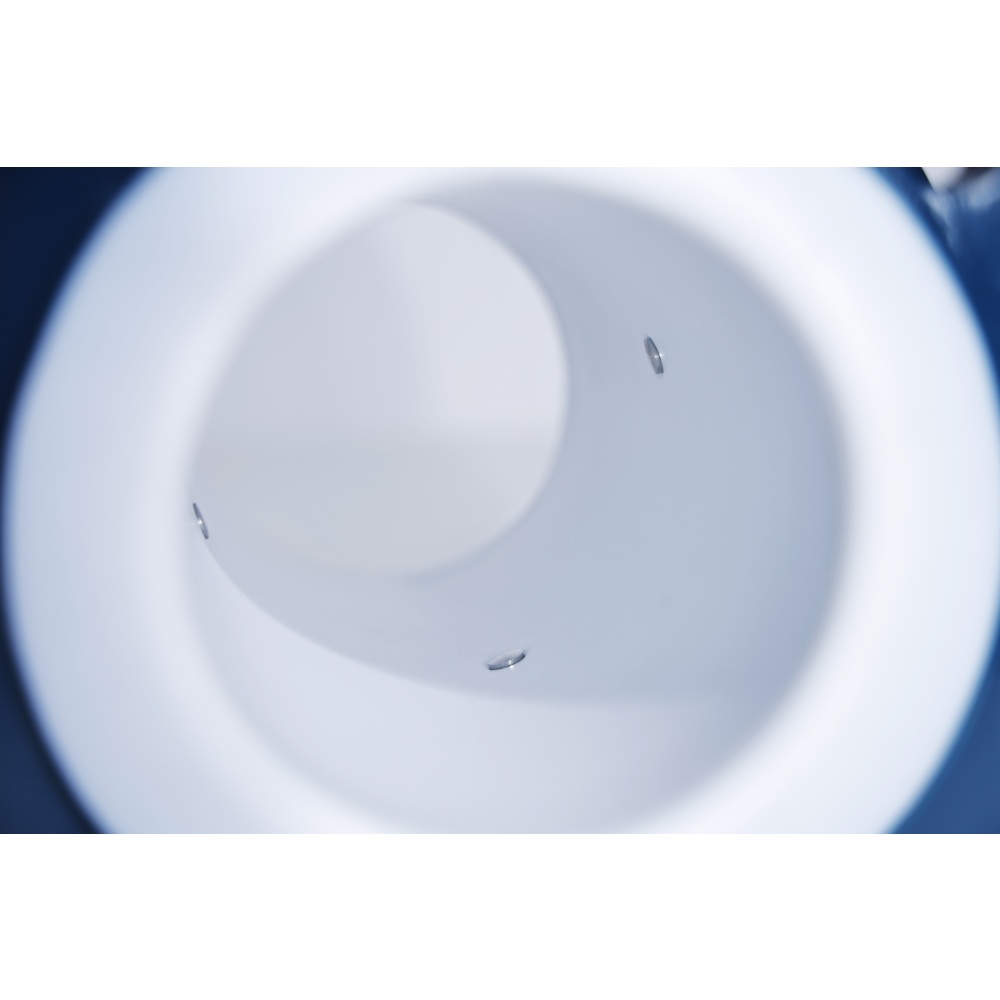

| Electrod Material | 316L Hastelloy alloy,platinum iridium alloy,titanium,tantalum,tungsten carbide (Note:Three or four electrodes are optional) |
| Electric | |
| Power Supply | 24VDC/220VAClithium battery |
| Output | Current,pulse,frequency,alarm HART,Modbus,GPRS,PROFBUS -DP,PROFBUS-PA |
| Temperature | |
| Process Temp. | <160℃ |
| Ambient Temp. | -40~176°F(-40~85℃) |
| Humidity | 0~100%Relative humidity |
| Pressure | |
| Process Press. | 0~42MPa |
| Measurement Performance | |
| Digital Accuracy | Flowtube type±0.2%of rate,±0.5%(Standard)of rate,±1.0%of rate Insertion type±2.5%of rate |
| Repeatability | ±0.1%of rate |
| Hazardous Locations Certification | |
| FM | Factory Mutial (FM)Approvals |
| CEX | Explosion Proof |
| CE | Intrinsically safe |
| CSA | Canadian Standards Association |
| IE | International Education Consortium |
| GR | GOST Certification |
| Machinery | |
| Sensor Sealing | Graphite gasket,others |
| Pressure Ratings | PN1.6MPa~42MPa ANSI 150~2500LB |
| Structure Form | Insertion mount ≥DN200 |
| Flange Mount DN10~2000 | |
| Chuck Mount DN10~100 Thread Mount DN10~100 | |
| Diameter | DN10~20003/8°~80”(For small diameter and large diameter,please consult factory) |
| Flange | Carbon steel,stainless steel(304、316),RF,RJ,MFM |
| Sealing | Factory sealing |
| Enclosure Ratings | IP65/IP67/P68 |
The following are the application scenarios of MG9500 electromagnetic flowmeter
● Chemical and Petroleum Industries
● Oil and Gas Industry
● Pulp and Paper Industry
● Pharmaceutical Industry
● Food and Beverage Industry
● Water Treatment And Sewage Treatment
● Electric Power Industry
