● State-of-the-art manufacturing procedures provide robust component packaging for increased reliability
● Optional Class A accuracy for critical temperature measurement points
● Terminal block, flywire and compression spring threaded connectors allow for remote or integrated transmitter mounting configurations
● Full range of single point and high density temperature measurement solutions
● Application assurance provided by experienced product consultants and a comprehensive service program
● Various enclosure and junction box options
● Hazardous location approvals worldwide
| General Specifications | |

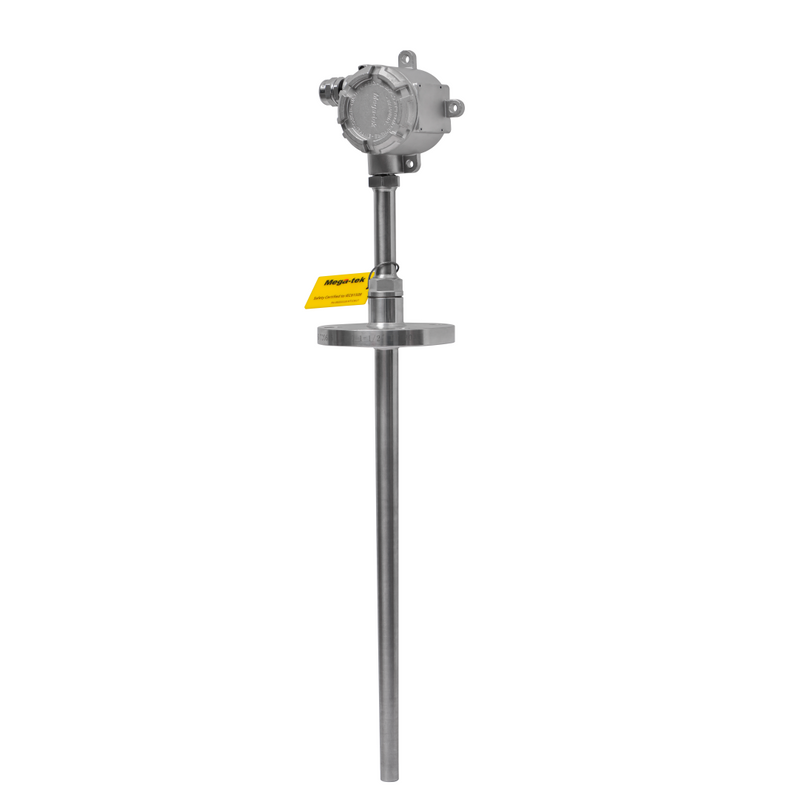

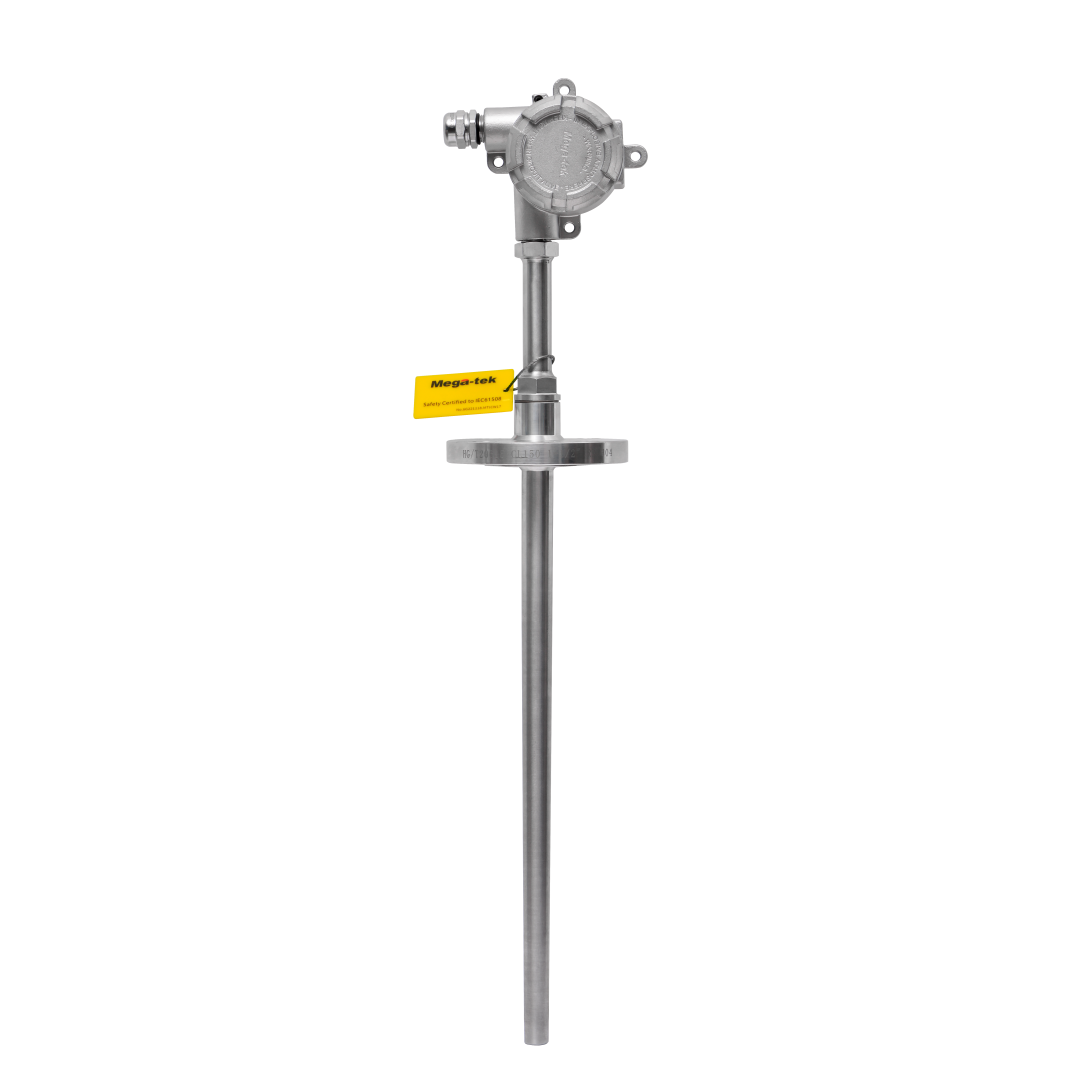

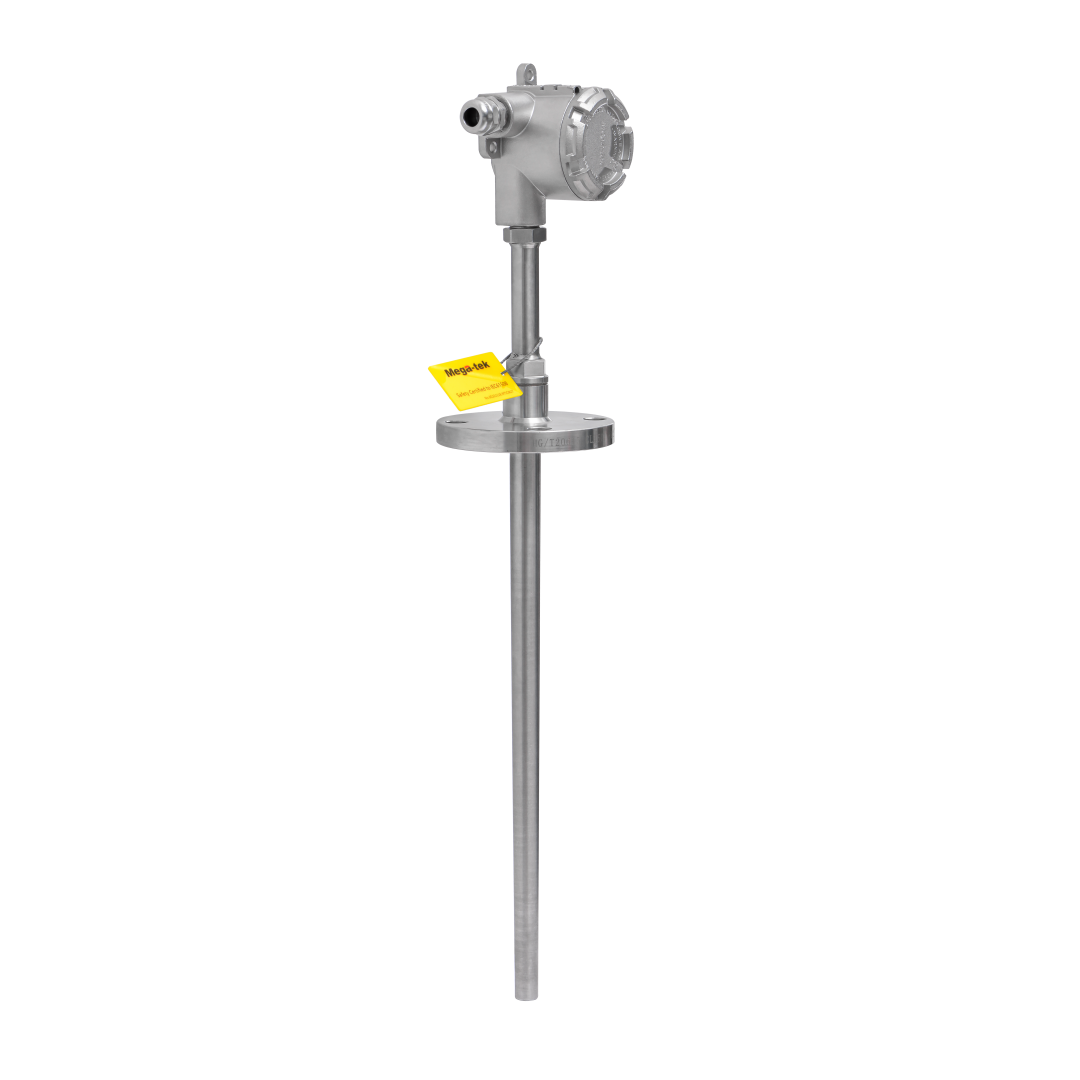

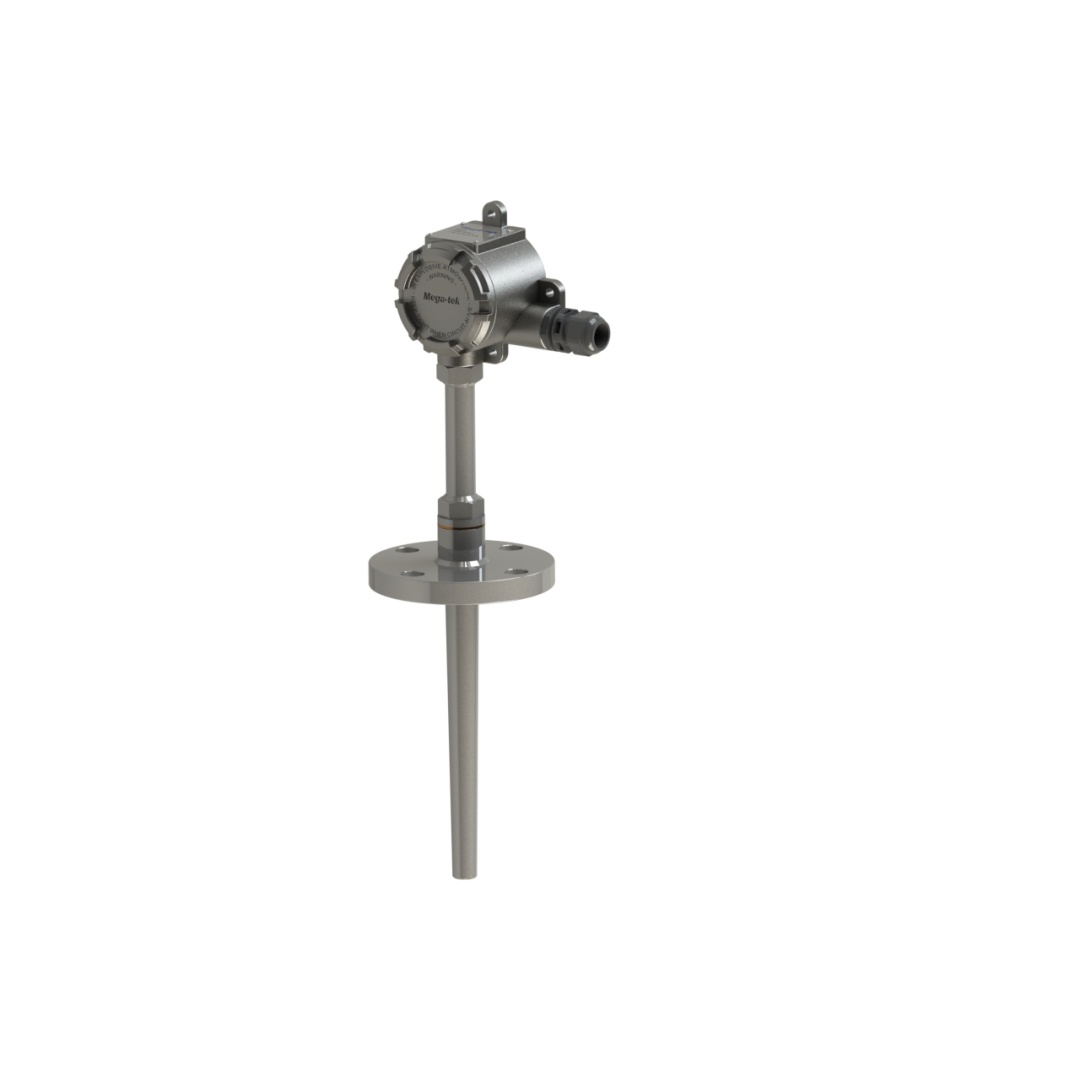

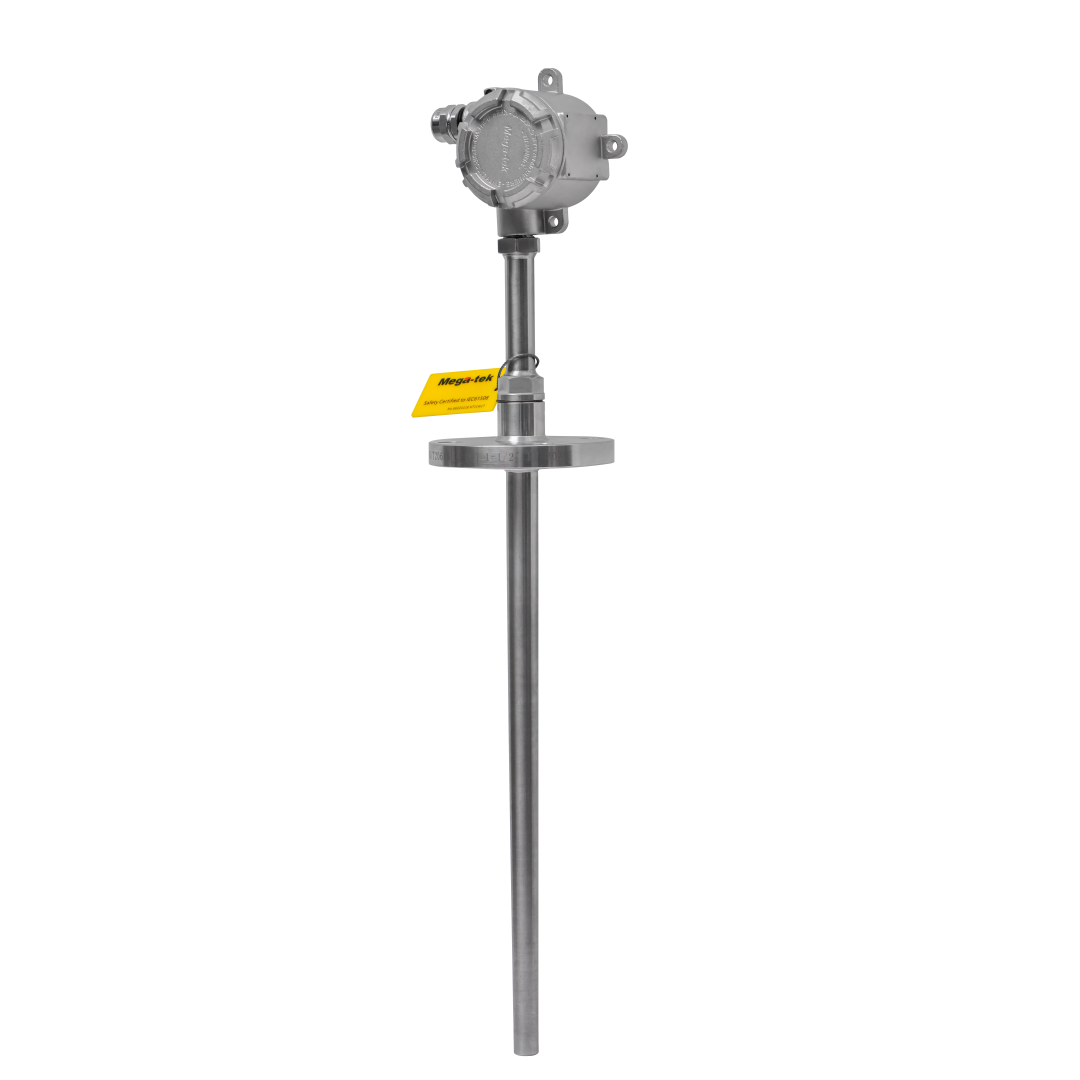

| Product Name | MG2110 Type Thermal Resistance Thermometer |
| Measuring Parameters | Temperature |
| Housing Type | Single chamber |
| Housing Material | High-pressure cast aluminum or stainless steel |
| Cable Entry | 1/2"NPT or M20×1.5 |
| Material | 316LSST,304SST,316SST,Ta,HC,PTFE lining |
| Electrical Parameters | |
| Input Voltage | 13.5~30VDC,with polarity reverse protection |
| Output Signal | Three-wire or four-wire,4~20mADC,HART |
| Damping | 0.2～30s |
| Lightning Protection | Meet the requirements of EN61000-4-4(GB/T17626.4)severity level4 |
| Device | And EN61000-4-5(GB/T17626.2)severity level 4 |
| Process Temperature | MG2110-328°F~932°F(-200℃~500℃) |
| Ambient Temperature | -40~185°F(-40~85℃) |
| Storage Temperature Humidity | -40~185°F(-40~85℃) |
| 0-80%Relative humidity | |
| Accuracy | |
| Graduation | Pt100(Platinum Resistance):Class A:±(0.15+0.002|t) |
| Class B:±(0.30+0.005|t) | |
| Basic error of temperature transmitter:±0.2%,±0.5% | |
| Explosion-proof Certification | |
| CEX | Explosion proof |
| CEI | Intrinsically safety |
| Mechanical | |
| Sealing | Factory sealing |
| Ingress Protection | IP67/IP66 |
| EMC | f the probe is installed in a metal container or guide tube,in accordance with EN61326-1 |
| (1997),the revised provisions specificlly for Class AlA equipment in the workplace shall apply | |
The following are the application scenarios of MG2110 Resistance Thermometer:
Oil & Gas Industry
Metallurgy & Machinery Industry Chemical Industry
Power Industry
Water & Wastewater Treatment
Food & Beverage Industry
Pharmaceutical Industry
Pulp & Paper Industry
