Multi-Float Level Switch for Corrosive Media

Technical Specifications

Applications

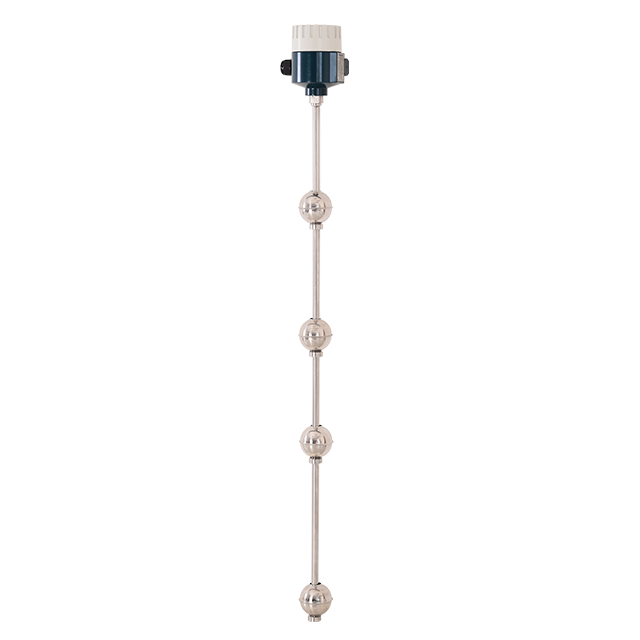

The MG8310 Series Multi-Float Level Switch is designed for reliable multi-point level control in harsh industrial environments. With redundant multi-float sensing, explosion-proof certifications, and corrosion-resistant materials, it operates stably under temperatures from -40 °C to +150 °C, pressures up to 6.3 MPa, and protection ratings of IP67/IP68. It supports liquids with density ≥ 400 kg/m³ and viscosity ≤ 0.4 Pa·s, ensuring accurate and safe level monitoring across diverse industries.

Oil & Gas / Petrochemical

The MG8310 is widely used in storage tanks, separators, and chemical dosing systems. With FM, CSA, IECEx, and SIL certifications, it ensures safe operation in hazardous areas. Multi-float redundant detection improves reliability under fluctuating process conditions.

Chemical Industry

Featuring wetted materials such as 316L, titanium, Hastelloy, duplex stainless steel, and PTFE lining, the MG8310 withstands strong acids and alkalis. It delivers stable level control with a basic accuracy of ±10 mm in corrosive environments.

Water & Wastewater Treatment

With IP67/IP68 protection and probe lengths from 500 to 6000 mm, the MG8310 supports multi-point level control in tanks, pump stations, and sludge systems, enabling automatic pump control and alarm functions.

Food & Pharmaceutical

Using hygienic materials like 316L stainless steel and PTFE, the MG8310 ensures contamination-free level monitoring. Its long contact life (≥ 10⁵ cycles) and stable switching performance meet GMP and food safety requirements.

Pulp, Metallurgy & Power Industry

The MG8310 performs reliably in high-temperature, high-humidity, and high-vibration environments. Its robust aluminum housing and lightning protection compliant with EN61000-4-4/5 Level 4 ensure stable operation in industrial and power applications.
