Product Application

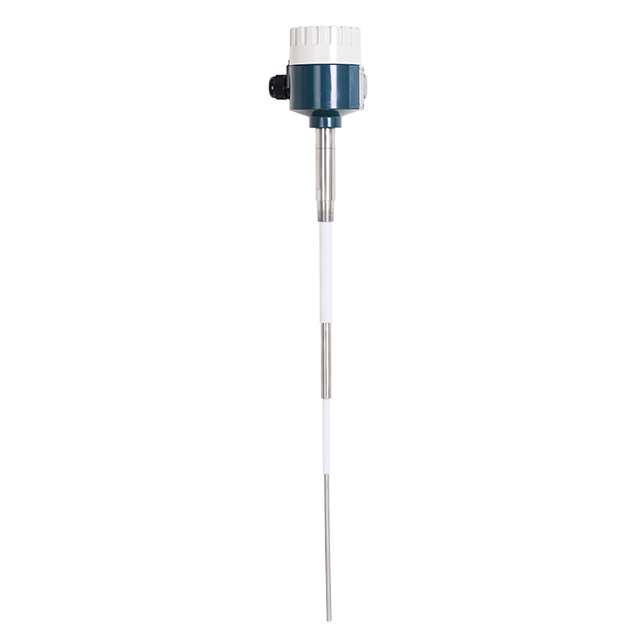

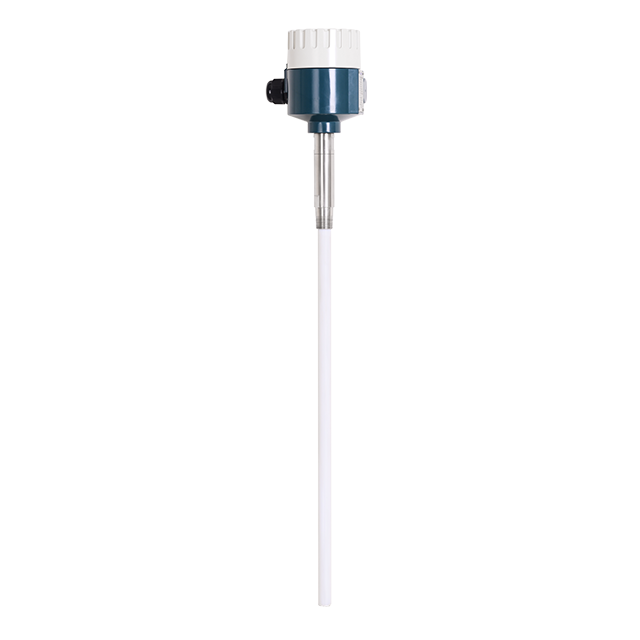

The MG8610 Series RF Admittance Level Switch is designed for reliable level control of liquids, slurries, powders, solid particles, and blocky materials in both open and pressurized vessels. Featuring maintenance-free operation, RF admittance technology, and three-terminal shielding, it provides accurate switching signals by simultaneously measuring impedance and capacitance while eliminating the influence of material hanging and scaling. With IP67/IP68 protection and wetted parts available in 316L stainless steel, titanium, or Hastelloy C-276, the MG8610 is ideal for corrosive, high-temperature, and flammable industrial environments.
Oil & Gas Industry
In oil and gas processing, the MG8610 is used for level control in storage tanks, separators, and process vessels containing petroleum, liquefied gas, and hydrocarbon mixtures. Its relay output design is suitable for flammable and explosive atmospheres. It also enables storage tank dehydration for oil-water separation and liquefied gas-water separation in spherical tanks.
Key advantages:
Suitable for both conductive and insulating liquids
Interface control for oil-water and liquefied gas-water separation
Wetted materials: 316L SST / titanium / Hastelloy C-276
Chemical & Petrochemical Industry
In chemical processing, the MG8610 handles level detection of aggressive media including acids, alkalis, and corrosive solvents. The three-terminal shielding technology eliminates the influence of material adhesion and scaling, while the all-stainless-steel construction lined with PTFE ensures exceptional corrosion resistance. It performs reliably in reactors and mixing tanks where slurry and viscous media are present, and supports interface control for electrostatic desalination.
Key advantages:
Corrosion-resistant wetted parts: 316L / titanium / Hastelloy C-276
Immune to material hanging and scaling
Operating pressure up to 6.3 MPa (63 bar)
Food & Beverage Industry
In food and beverage production, the MG8610 monitors liquid levels in tanks containing beverages, beer, and aqueous solutions. The stainless steel sanitary construction and maintenance-free design meet strict hygiene requirements, while the clear LED red/blue indication simplifies on-site monitoring and allows operators to instantly distinguish between alarm and normal conditions.
Key advantages:
316L stainless steel hygienic construction
Maintenance-free with long service life
Clear LED red/blue on-site indication
Metallurgical Industry

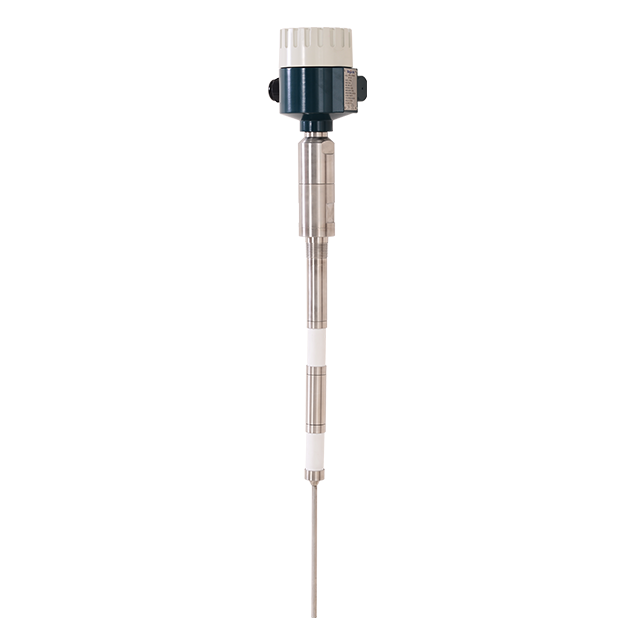

In metallurgical processes, the MG8610 provides solid level control for coal particles, chemical raw materials, ores, and limestone. The MG8610H variant with naked probe is engineered for high-temperature conditions up to 455°C, making it ideal for extreme thermal environments. Its high-pressure cast aluminum or stainless steel housing withstands mechanical impacts and temperature shocks during transport and installation.
Key advantages:
Wide temperature range: up to 455°C (MG8610H)
Suitable for powders, particles, and blocky bodies
Protection grade IP67/IP68
Pharmaceutical Industry
In pharmaceutical manufacturing, the MG8610 ensures precise level control for medicinal liquids, solvents, and raw material storage. The high control accuracy of ±2 mm for conductive materials meets stringent process requirements, while the PTFE-lined anti-corrosion construction handles aggressive cleaning agents and media. The modular design with movable components requires no disassembly, simplifying maintenance.
Key advantages:
High control accuracy: ±2 mm for conductive materials
PTFE-lined anti-corrosion construction for acids and alkalis
Modular design with movable components without disassembly
Electric Power & Water Treatment Industry
In power plants and water treatment facilities, the MG8610 monitors liquid levels in urban drainage, factory waste liquid, and various aqueous solutions. It enables reliable interface control for electrostatic desalination and storage tank dehydration, effectively separating oil from water or liquefied gas from water. The instrument incorporates reverse-polarity protection and anti-RF interference circuitry for safe operation.
Key advantages:
Reliable interface control for mixed liquids
Reverse-polarity protection and anti-RF interference
Suitable for water treatment and sewage treatment applications
Pulp & Paper Industry
In pulp and paper production, the MG8610 controls the level of slurries and viscous media. The RF admittance technology reliably eliminates the impact of fiber adhesion and scaling on the probe and container wall, ensuring continuous accurate switching in demanding process conditions. Its wide range of use and long service life make it a cost-effective solution for pulp tanks and process vessels.
Key advantages:
Specifically designed for slurry and viscous medium control
RF admittance technology eliminates hanging material influence
Long service life with maintenance-free operation
